Chime Control: Notes
- The chime warns the driver that a problem is occurred. These warning are:
- Seat belt
- Parking on
- Over speed
- Key reminder
- Light Warning
- Doors Open
- Tailgate open warning
- Chime sound priority:
- 1st: Seatbelt warning
- 2nd: Overspeed warning
- 3rd: Door open warning
- 4th: T/Gate open warning
- 5th: Key operated warning
- 6th: Parking Brake warning
- 7th: Light ON warning
- 8th: Key learning sound
- If two different warning condition happen at the same time, chime should work only for the highest warning condition.
- Cluster indicators should work for two warning behavior.

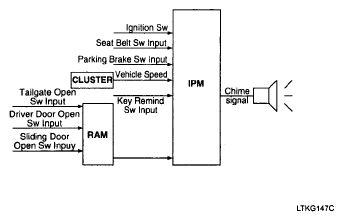

- Behavior Description
Courtesy of KIA MOTORS AMERICA, INC.
