Home >> Kia >> 2007 >> Sedona Base >> Repair and Diagnosis (Single Page) >> Engine Mechanical >> Engine Mechanical >> Engine Block >> Components

Engine Block: Components

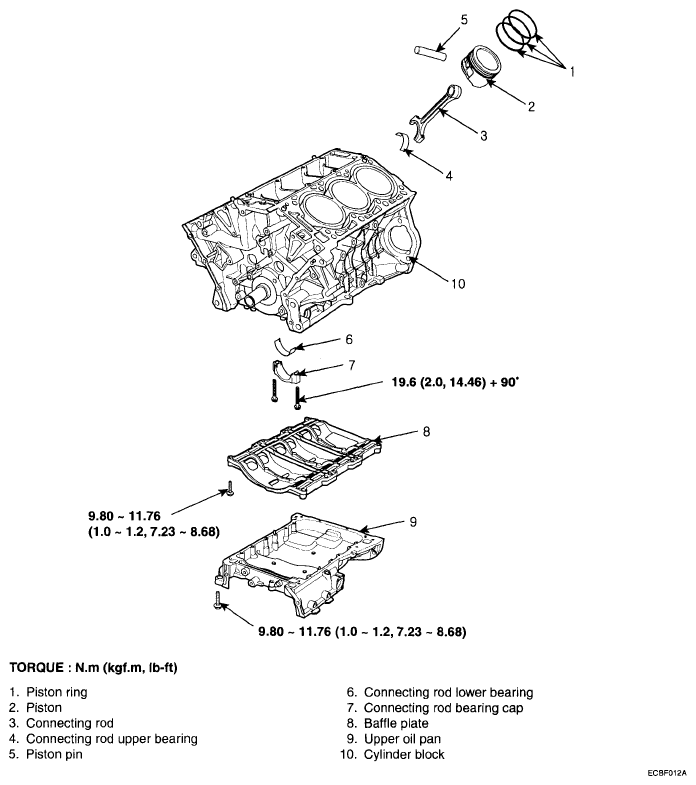

Fig 1: Engine Block Replacement Components With Torque Specifications (1 Of 2)
G04883056Courtesy of KIA MOTORS AMERICA, INC.

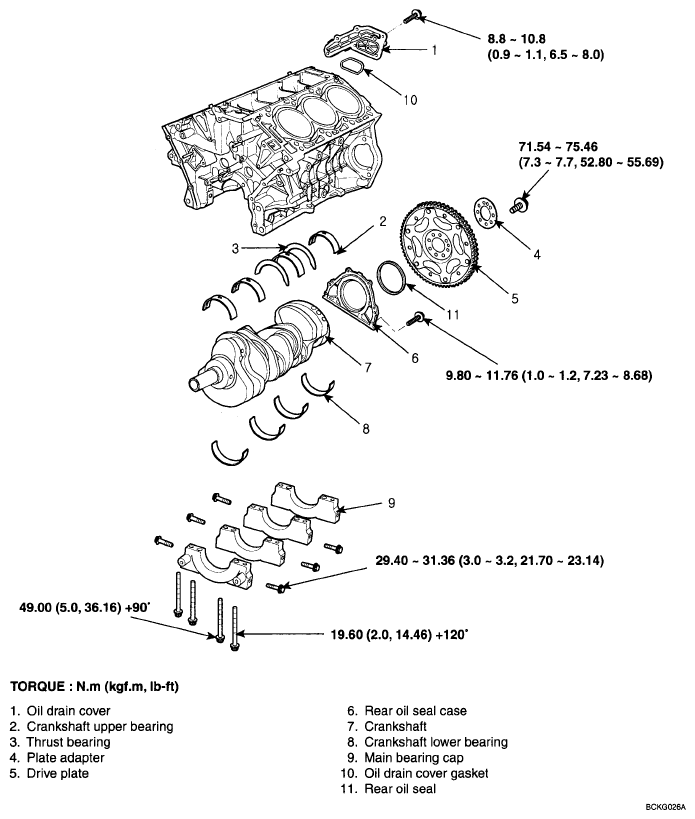

Fig 2: Engine Block Replacement Components With Torque Specifications (2 Of 2)
G04883057Courtesy of KIA MOTORS AMERICA, INC.
