Ignition Switch: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel (Refer to CRASH PAD ).

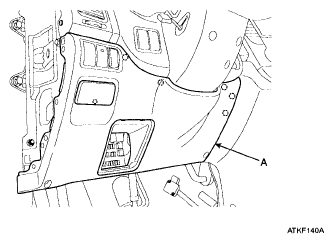

    Fig 1: Identifying Crash Pad Lower Panel
    G04884635Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the screws (2 each) and trip switch connector. Then remove the crash fascia panel (B).

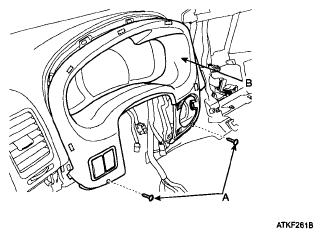

    Fig 2: Identifying Cluster Fascia Panel
    G04884922Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the ignition switch (A) after loosening the screw with IG ON and disconnecting the 6P connector.
    Fig 3: Identifying Ignition Switch
    G04885273Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the door warning switch and key illumination lamp (A) after loosening the screws (B) and disconnecting the 6P connector.

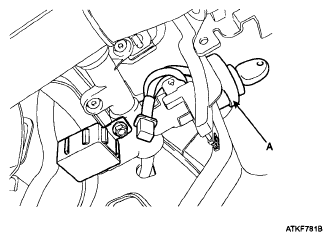

    Fig 4: Identifying Key Illumination Lamp
    G04885184Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the key lock cylinder (C) after pushing lock pin (B) with key ACC.

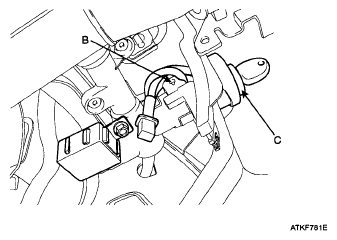

    Fig 5: Identifying Key Lock Cylinder And Lock Pin
    G04885275Courtesy of KIA MOTORS AMERICA, INC.
  7. Installation is the reverse of removal procedure.
