Home >> Kia >> 2007 >> Sedona Base >> Repair and Diagnosis >> Electrical >> Charging Systems >> Alternator >> Component

Charging Systems: Alternator: Component

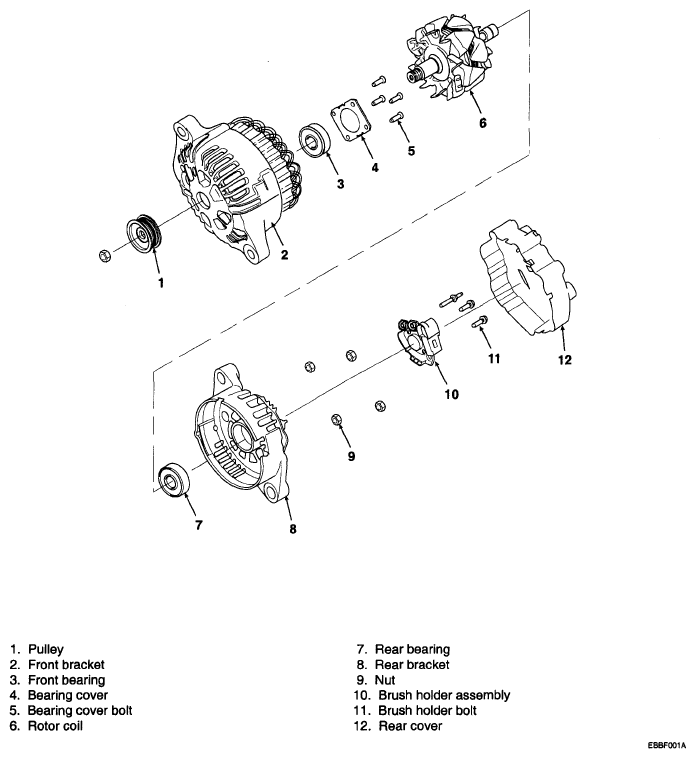

Fig 1: Exploded View Of Alternator
G04882078Courtesy of KIA MOTORS AMERICA, INC.
