Correction Mode
- The correction process is necessary for displaying correct direction of by removing the effect of magnetized car body components.

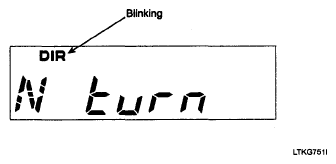

- Push Mode button for 2 sec - 4.5 sec. And then "turn" is displayed and "DIR" is blinking with 0.5 sec intervals.
Courtesy of KIA MOTORS AMERICA, INC.
- Automatic correction is done when the vehicle turns 720° in normal driving condition (the correction is invisible to the driver).
NOTE:
- The correction data is updated if the automatic correction data is better than the present correction data.
- Turning direction is not important.
- If the correction process is not finished after the vehicle turns 7204dGC, turn the vehicle some more degree.
- After finishing the correction process, the compass displays the present direction.
- If the correction process is not finished until 5 minutes this mode is cancelled and the compass returns to normal mode with restoring the previous correction data.
