Ignition Coil

  1. Remove the engine cover.
  2. Disconnect the ignition coil connector (A).

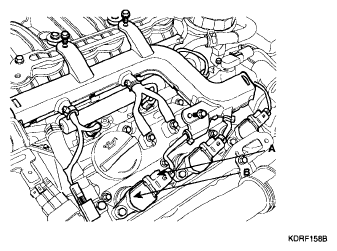

    Fig 1: Locating Ignition Coil Connectors And Ignition Coils
    G04882909Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
    Fig 2: Identifying Ignition Coil Connector Lock Pin
    G04803991Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the ignition coil (B).
  4. Installation is the reverse of removal.
