Automatic Transaxle: Installation

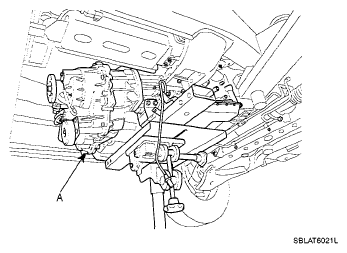

  1. Using a transmission jack, install the transmission (2WD) or transmission/transfer case assembly (4WD) (A).
    Fig 1: Installing Transmission (2WD) Or Transmission/Transfer Case Assembly (4WD) (A)
    G05119320Courtesy of KIA MOTORS AMERICA, INC.

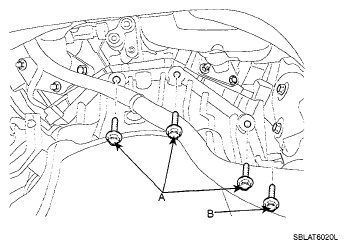

  2. Tighten the transmission mounting bolts (A,B).

    TORQUE

    1. 30-42 N.m (3.0-4.2 kgf.m, 21.6-30.3 lb-ft)
    2. 30-42 N.m (3.0-4.2 kgf.m, 21.6-30.3 lb-ft)
      Fig 2: Identifying Transmission Mounting Bolts
      G05119319Courtesy of KIA MOTORS AMERICA, INC.

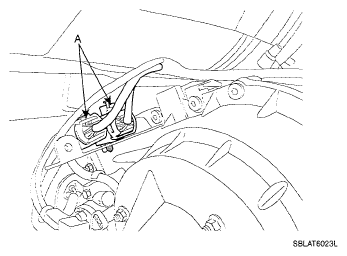

  3. Install the transfer case connectors (A) (4WD)
    Fig 3: Identifying Transfer Case Connectors
    G05119318Courtesy of KIA MOTORS AMERICA, INC.
  4. Install the vehicle speed sensor connector (A).

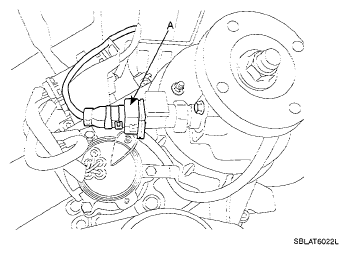

    Fig 4: Vehicle Speed Sensor Connector
    G05119317Courtesy of KIA MOTORS AMERICA, INC.
  5. Connect the transmission wire harness connectors (A).

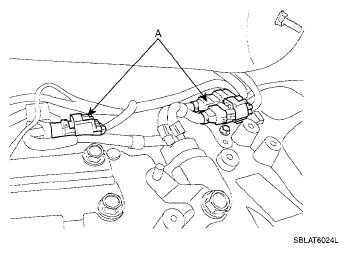

    Fig 5: Transmission Wire Harness Connectors
    G05119316Courtesy of KIA MOTORS AMERICA, INC.

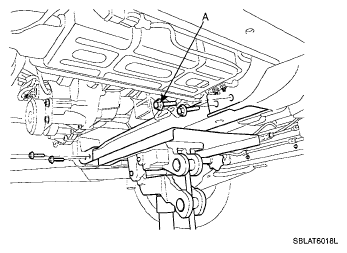

  6. Install the crossmember mounting bolts (A).
    Fig 6: Identifying Crossmember Mounting Bolts
    G05119314Courtesy of KIA MOTORS AMERICA, INC.

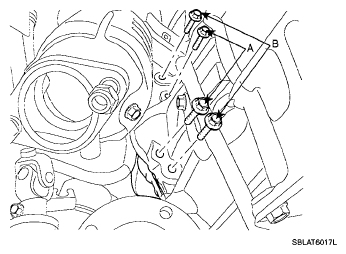

  7. Install the starter motor mounting bolts (A) and the other bolts (B).

    TORQUE

    1. 50-65 N.m (5.0-6.5 kgf.m, 36.2-47.0 lb-ft)
    2. 34.3-46 N.m (3.5-4.7 kgf.m, 25.3-33.9 lb-ft)
      Fig 7: Identifying Starter Motor Mounting Bolts
      G05119313Courtesy of KIA MOTORS AMERICA, INC.
  8. Install the Tighten the transaxle lower mounting bolts (A).

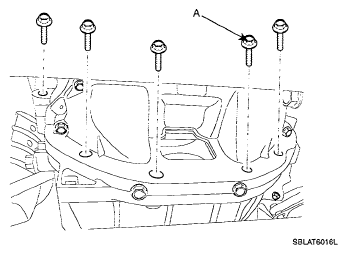

    Fig 8: Identifying Transaxle Lower Mounting Bolts
    G05119312Courtesy of KIA MOTORS AMERICA, INC.

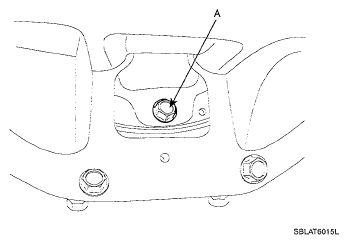

  9. Install the drive plate bolts (A) by turning the timing gear.

    TORQUE :

    34.3-41.1 N.m (3.5-4.2 kgf.m, 25.3-30.3 lb-ft)

    NOTE: Install the bolts (A-6ea) rotating the crankshaft clockwise.
    Fig 9: Drive Plate Bolts
    G05119311Courtesy of KIA MOTORS AMERICA, INC.

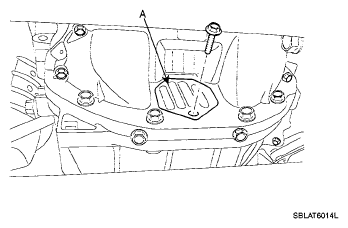

  10. Install the drive plate cover (A).
    Fig 10: Drive Plate Cover
    G05119310Courtesy of KIA MOTORS AMERICA, INC.

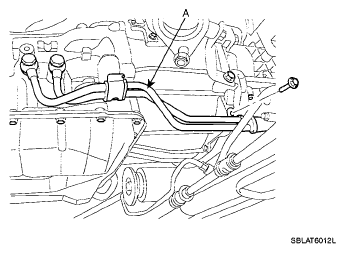

  11. Install the oil cooler pipes (A).
    Fig 11: Oil Cooler Pipes
    G05119309Courtesy of KIA MOTORS AMERICA, INC.

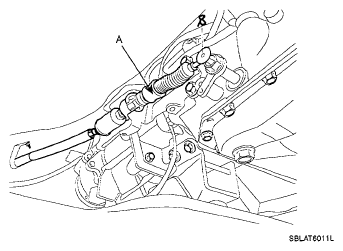

  12. Install the shift cable (A).
    Fig 12: Shift Cable
    G05119308Courtesy of KIA MOTORS AMERICA, INC.
  13. Install the shift cable cover (A).

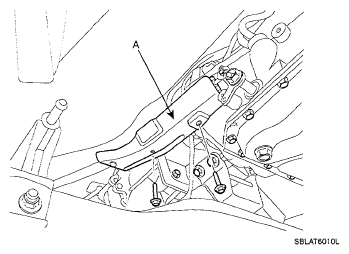

    Fig 13: Shift Cable Cover
    G05119307Courtesy of KIA MOTORS AMERICA, INC.
  14. Install the transmission oil level gauge (A).

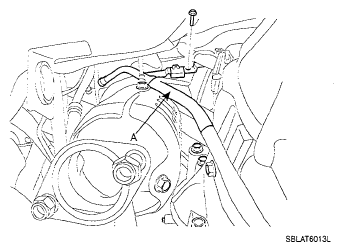

    Fig 14: Transmission Oil Dipstick Tube
    G05119306Courtesy of KIA MOTORS AMERICA, INC.

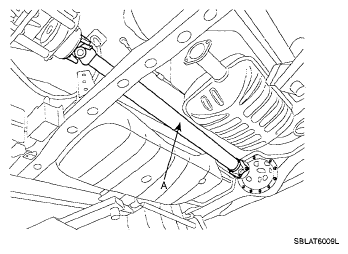

  15. Install the rear propeller shaft (A).

    TORQUE :

    58.83-68.64 N.m (6-7 kgf.m, 43.39-50.63 lb-ft)

    Fig 15: Rear Propeller Shaft (A)
    G05119305Courtesy of KIA MOTORS AMERICA, INC.

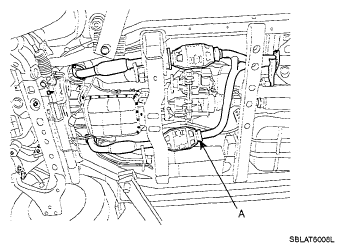

  16. Install the front muffler (A) and the heat protector.
    Fig 16: Identifying Front Muffler And Heat Protector
    G05119304Courtesy of KIA MOTORS AMERICA, INC.

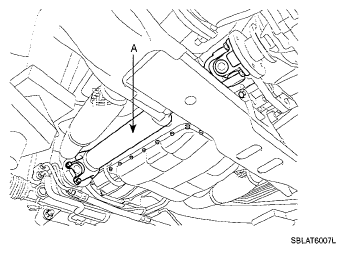

  17. Install the front propeller shaft (A) (4WD)

    TORQUE :

    58.83-68.64 N.m (6-7 kgf.m, 43.39-50.63 lb-ft)

    Fig 17: Front Propeller Shaft
    G05119303Courtesy of KIA MOTORS AMERICA, INC.
  18. Refill the transmission fluid (see GENERAL SPECIFICATION ).
  19. Install the under cover (A).

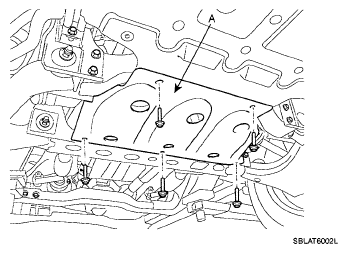

    Fig 18: Identifying Under Cover
    G05119301Courtesy of KIA MOTORS AMERICA, INC.

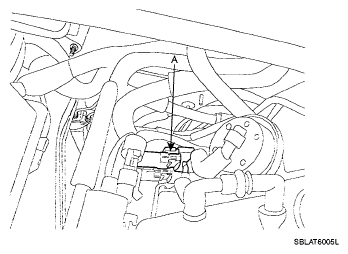

  20. Install the 02 sensor connectors (A).
    Fig 19: Identifying 02 Sensor Connectors (1 Of 2)
    G05119299Courtesy of KIA MOTORS AMERICA, INC.

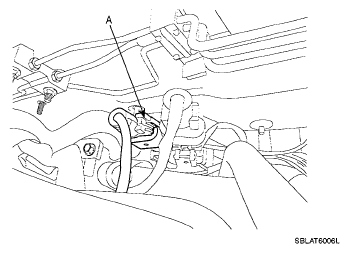

    Fig 20: Identifying 02 Sensor Connectors (1 Of 2)
    G05119300Courtesy of KIA MOTORS AMERICA, INC.

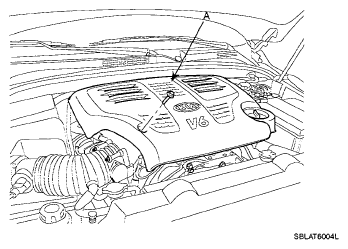

  21. Install the engine cover (A).
    Fig 21: Identifying Engine Cover
    G05119298Courtesy of KIA MOTORS AMERICA, INC.
  22. Install the battery (-) terminal (A).

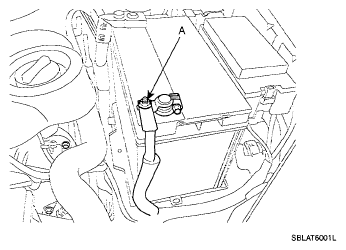

    Fig 22: Identifying Battery Terminal
    G05119297Courtesy of KIA MOTORS AMERICA, INC.
  23. Refill the transmission fluid (see GENERAL SPECIFICATION ).
