Home >> Kia >> 2007 >> Sorento Base, A5SR2 >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Alternator >> Components

Charging System: Alternator: Components

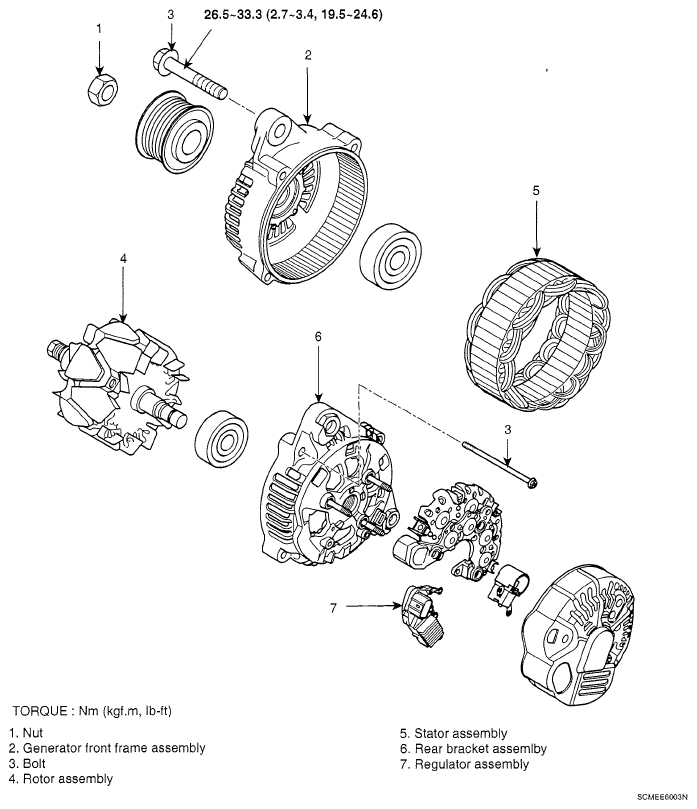

Fig 1: Alternator Replacement Components With Torque Specifications

G05118188

Courtesy of KIA MOTORS AMERICA, INC.
