Body Control Module: Function

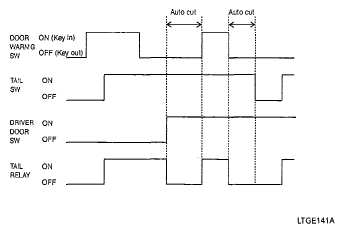

1. When the KEY is off and Driver side door is opened, TAIL LAMP turns automatically off.
2. Also, in case the Driver's seat door opened and DOOR WARNING SW is off, the TAIL LAMP turns automatically off.
3. After turned automatically off, TAIL LAMP turns on and AUTO CUT function cancels in case TAIL LAMP SW is ON after OFF.
4. If the KEY is ON after the automatic turn-off, TAIL LAMP turns on and AUTO CUT function is canceled.

Fig 1: Blinking Pattern - Tail Lamp Auto Cut

Courtesy of KIA MOTORS AMERICA, INC.

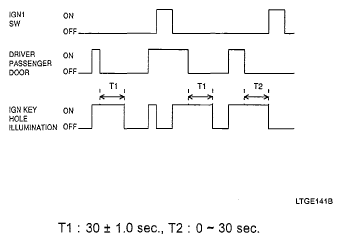

1. When driver's door is open, IGN key hole light should turn on.

   When the driver's door is closed, IGN key hole light should be ON for 30 seconds before it turns itself off.

2. When the passenger's door is opened, IGN KEY HOLE light should turn on.

   When the passenger's door is closed, IGN KEY HOLE lights should turn on for 30 seconds before it turns itself off.

3. Remember after checking steps 1 and 2, that as soon as IGN 1 SW is switched on, IGN key hole light should turn OFF immediately. (However, if you're in ARM MODE, IGN key hole lighting should be OFF.)

Fig 2: Blinking Pattern - IGN KEY HOLE Lighting

Courtesy of KIA MOTORS AMERICA, INC.

ROOM LAMP OFF STATE

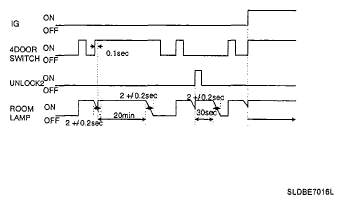

Fig 3: Blinking Pattern - Decayed Room Lamp

Courtesy of KIA MOTORS AMERICA, INC.

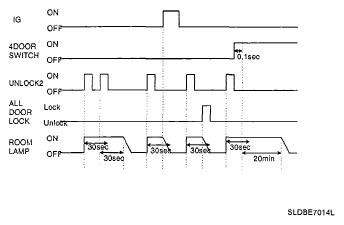

ROOM LAMP ON FOR 30S STATE

Fig 4: Blinking Pattern - Room Lamp On For 30S State

Courtesy of KIA MOTORS AMERICA, INC.

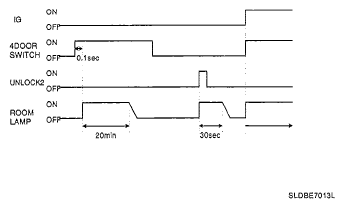

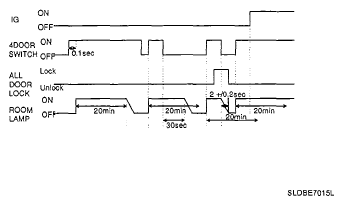

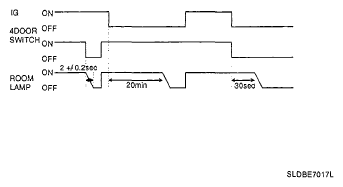

ROOM LAMP ON FOR 20MIN STATE

Fig 5: Blinking Pattern - Room Lamp On For 20Min State

Courtesy of KIA MOTORS AMERICA, INC.

ROOM LAMP DECAYING STATE

Fig 6: Blinking Pattern - Room Lamp Decaying State

Courtesy of KIA MOTORS AMERICA, INC.

ROOM LAMP ON STATE

Fig 7: Blinking Pattern - Room Lamp On State

Courtesy of KIA MOTORS AMERICA, INC.

1. Central Door Lock Auto Logic
   CENTRAL DOOR LOCK AUTO LOGIC



   OPTION		Central DR Lock	RKE
   DR KEY UNLOCK	Driver's seat	2-turn unlock (Driver)
   	Assistant's seat	2-turn unlock (Assist)
   RKE Fob	Lock	-	All lock
   	Unlock	-	Door seat 2-turn
   Driver's seat KNOB	Lock	All lock	All lock
   	Unlock	DR Seat unlock
   Passenger's seat KNOB	Lock	All lock	All lock
   	Unlock	Asst. unlock
   Main Door Lock SW	Lock	All lock	All lock
   	Unlock	All unlock	All unlock

2. When the battery is connected (When KNOB is LOCKED or UNLOCKED) there should be no LOCK output.
3. When the knob SW of driver's seat (or passenger's seat) is unlocked on the 2-turn unlock vehicle, only the driver's seat (or passenger's seat) unlocked.
4. Ignore the signal under 60m seconds.
5. Refer to 2-turn unlock specification in  5.
6. When UNLOCK is input while outputting LOCK, immediately stop outputting LOCK or output UNLOCK after 100ms pause (and vice versa).
7. When RKE LOCK signal is received, output LOCK for 0.5 seconds.
8. When RKE UNLOCK signal is received, output UNLOCK for 0.5 seconds.
9. When RKE LOCK signal is received, output LOCK ON irrespective of ALL DOOR state.

Fig 8: Blinking Pattern - Central Door Lock / Unlock

Courtesy of KIA MOTORS AMERICA, INC.

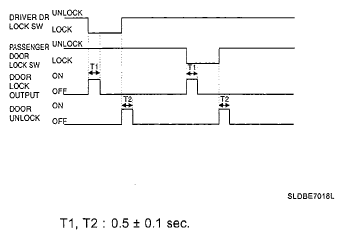

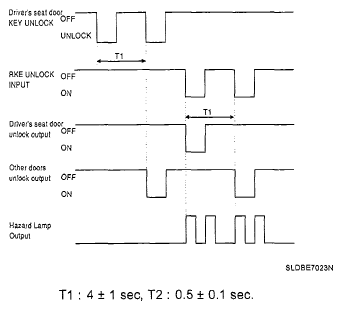

1. When the Driver Door unlocked with driver's seat KEY CYLINDER or RKE, only Driver Door is unlocked.
2. When the driver's seat KEY or RKE unlock signal re-input within 5 seconds, rest of Doors are unlocked.
3. After operating 1) and T1 and re-input JUNLOCK signal, driver's seat door only unlocked.
4. When using RKE to unlock, HAZARD LAMP is ON twice.

   However, while outputting HAZARD twice, if RKE UNLOCK is re-input (OTHER DOOR UNLOCK), no HAZARD LAMP light.

5. 2-TURN UNLOCK vehicle only unlocks the driver's seat door while KNOB SW unlocked.
6. Other door lock specification is according to the CENTRAL DOOR LOCK / UNLOCKS specification.
7. No Unlock output when unlock the door with passenger's door key switch.
8. When the passenger's seat Key SW re-input within 5 seconds, all doors including driver's seat unlocked.
9. When the passenger's key SW re-input, no Unlock output.

Fig 9: Blinking Pattern - 2-Turn Unlock

Courtesy of KIA MOTORS AMERICA, INC.

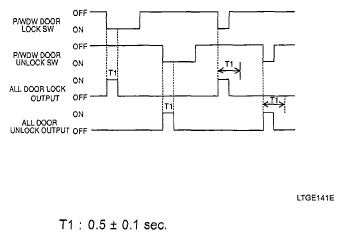

1. When P/WDW MAIN DOOR SW LOCK is ON, all Door LOCK outputs for max. 0.5 seconds. (However, RELAY output should be OFF immediately while MAIN SW LOCK is OFF within 0.5 sec.)
2. When P/WDW MAIN DOOR SW UNLOCK is ON, all Door UNLOCK outputs for max. 0.5 seconds. (However, RELAY output should be OFF immediately while MAIN SW UNLOCK is OFF within 0.5 sec.)
3. Ignore the signal under 60m seconds.
4. When UNLOCK is input while LOCK signal is out-putting, stop outputting LOCK signal and output UNLOCK after 100ms pause (vice versa).

Fig 10: Blinking Pattern - Power Window Main Door Switch Lock / Unlock

Courtesy of KIA MOTORS AMERICA, INC.

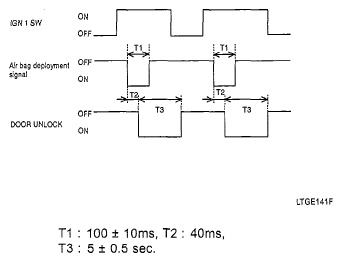

1. In case CRASH UNLOCK is input on IGN SW ON state, all the doors should be unlocked.
2. This function has priority over all the door lock functions (when Crash Unlock is operating, Door Lock function is disable).
3. After operating Crash Unlock function, if DRIVER or PASSENGER or REAR (RKE only) door is locked, all the doors unlocked for T3 seconds.
   Fig 11: Blinking Pattern - Crash Door Unlock (1 Of 2)

   Courtesy of KIA MOTORS AMERICA, INC.

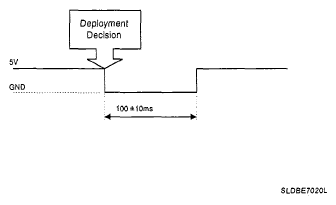

4. If there is input from the airbag signal, there will be output unlock T3 time.
5. The crash unlock function will not function if IGN SW is OFF and Airbag signal is ON.
6. If crash unlock function is reset after IGN 1 SW OFF, central door locks are reactivated.

Fig 12: Blinking Pattern - Crash Door Unlock (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

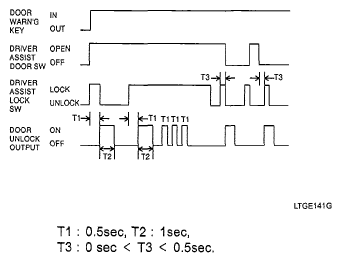

1. Insert IGN KEY into the KEY CYLINDER, open the driver's seat door and passenger's seat door and press DOOR LOCK KNOB to lock the door. Confirm its reaction after one second. If the DOOR LOCK KNOB stays locked, press UNLOCK signal for three times for 0.5 seconds. (If the door warning switch is off before 0.5 seconds passes after door lock switch is pressed, the KEY reminder function will be cancelled.)
2. If the is door closed or key is off while switching three times, the following output will be stopped.
3. Confirm its' function by checking to see if it' s locked and maintains its state.

   If there's any changes of DOOR WARNING SW, driver's/passenger's seat DOOR SW, or DR/PS DOOR LOCK SW, RESET (UNLOCK) it.

4. When the door is opened and key inserted when it is on the LOCK state, UNLOCK should be the output.

   (However, there's no output when the key is inserted after unlocking the driver's seat on 2 TURN UNLOCK vehicle.)

5. If In side 0.5 sec DOOR LOCK SW became LOCK form DOOR (DR or PASSENGER) Open → Close at IGN KEY IN state, output UNLOCK for 1 second.
6. When PA/VDW MAIN DOOR SW is LOCKed, lock it for 0.5 seconds and output UNLOCK signal immediately.

   (DOOR WARN'G SW = KEYLESS SW)

Fig 13: Blinking Pattern - Ign Key Reminder

Courtesy of KIA MOTORS AMERICA, INC.

1. When the seat belt is not fastened and IGN1 ON, seat belt warning light blink for the period of 0.6 seconds and warning sounds for the period of 1 seconds should be output.

   (when a point of ALT "L" ON time, start the ALT L 6 seconds warning lamp)

2. Seat belt warning sound and lamp output should turn OFF immediately while IGN1 is OFF within time (Bulb check should stop 6 seconds of driver indicator blinking)
3. When the seat belt is fastened and IGN ON, start bulb check within 6 seconds of driver's seat belt indicator blinking, (if ALT "L" is ON, start ALT "L" 6 seconds indicator blinking)
4. On the act (3), if IGN OFF, stop the check 6 seconds after driver indicator.
5. After IGN1 ON, If the seat belt is fastened, warning lamp stops within 6 seconds.
6. At the IGN ON state and seatbelt not fastened, warning lamp starts the 6 seconds.
7. When the IGN1 and seatbelt is not fastened, if ALT ON from OFF, start ALT "L" 6 seconds indicator.

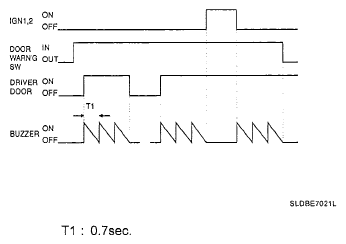

1. When the driver's door is opened with IGN OFF and IGN KEY inserted in KEY CYLINDER (DOOR WARNING SW ON), BUZZER output occurs as 0.7 seconds cycle DUTY 50%.
2. If IGN KEY pulled out from KEY CYLINDER or the driver's door closed, the output immediately stops.

Fig 14: Blinking Pattern - Seat Belt Reminder

Courtesy of KIA MOTORS AMERICA, INC.

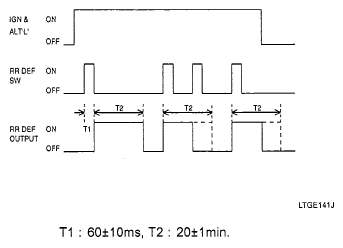

1. Rear Defogger Timer
   1. On the ALT "L" ON state, switch on the DE-FOG SW to output DEFOG for 20 minutes.
   2. While monitoring DEFOG, turn off the switch if DEFOG SW is ON again.
   3. While monitoring DEFOG, turn off the output if ALT "L" terminal is OFF.

Fig 15: Blinking Pattern - Rear Defogger Timer

Courtesy of KIA MOTORS AMERICA, INC.

1. When the IGN2 switch is ON, turn on the POWER WINDOW output.
2. When IGN2 SW is OFF, maintain the output for 30 seconds, then the switch turns off.
3. Step  2, as soon as the driver' s or passenger' s door is open, the POWER WINDOW TIMER output will stop at once.
   Fig 16: Blinking Pattern - Power Window Timer

   Courtesy of KIA MOTORS AMERICA, INC.

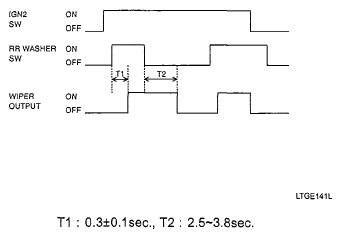

1. When IGN2 SW is ON, switch on the RR WASHER to output REAR WIPER after 0.3 seconds.
2. After WASHER SW is OFF, output the REAR WIPER during the T2.

   (WIPER 2~3 times operation time).

3. When the WASHER SW is off within T1, output WIPER for T2 time at T1.
   Fig 17: Blinking Pattern - Rear Wiper & Washer Control (1 Of 2)

   Courtesy of KIA MOTORS AMERICA, INC.

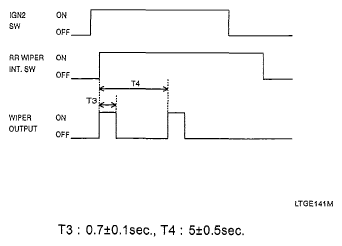

4. On the state of IGN2 SW ON, turn on the RR WIPER output for T3 when RR WIPER INT SW is ON.
   Fig 18: Blinking Pattern - Rear Wiper & Washer Control (2 Of 2)

   Courtesy of KIA MOTORS AMERICA, INC.
5. Ignore the signal under 60m seconds.

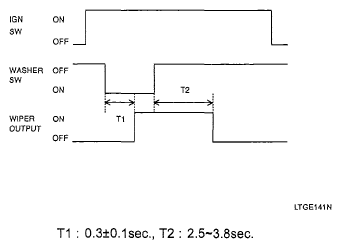

1. Switch on the WASHER when IGN switch is ON, start and stop WIPER after T2 sec (2.5-3.8 sec) and stop WIPER.
2. Washer GEARED WIPER operation is priority while operating INT WIPER.
3. Ignore the WASHER SW input when IGN1 is ON and IGN2 is OFF.
4. Even if the WASHER SW is OFF within T1, output WIPER at T1 for T2.
5. Ignore the signal under 60m seconds.

Fig 19: Blinking Pattern - Front Washer Geared Wiper

Courtesy of KIA MOTORS AMERICA, INC.

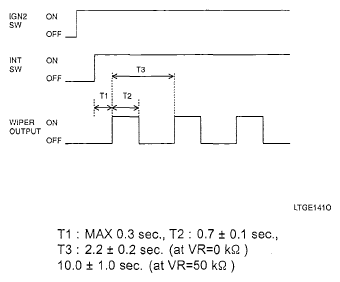

1. If INT SW is on when IGN2 SW is ON, INT WIPER is occasionally operating by the set value of INT VOLUME,
2. If the INT SW is ON, WIPER output should be ON when IGN is ON.

Fig 20: Blinking Pattern - Variable Intermittent Wiper

Courtesy of KIA MOTORS AMERICA, INC.

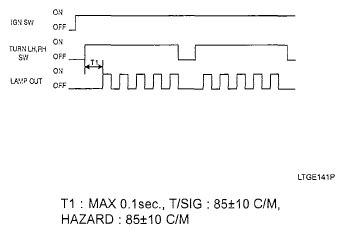

1. On the IGN1 SW ON state, switch on the TURN Signal LH (or RH) to flicker the LH (or RH) LAMP 85 times per minute.
2. Switch on the HAZARD on the B+ state, flicker the hazard lamp 85 times per minute.
3. When the hazard lamp is disconnected on the TURN state, flicker 120 times per minute.

Fig 21: Blinking Pattern - Flasher Unit

Courtesy of KIA MOTORS AMERICA, INC.

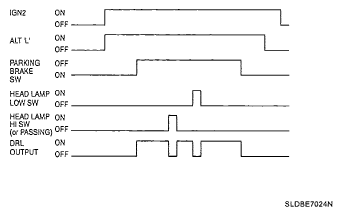

1. If PARKING BRAKE SW is OFF (RELEASED) on the ALT "L" ON state, output DRL (HEAD LAMP HI sensitization).
2. When ALT "L" is OFF or PARKING BRAKE SW is ON, the output is off.
3. When HEAD LAMP SW is ON, the DRL output is off.

Fig 22: Blinking Pattern - Daytime Running Lamps Control

Courtesy of KIA MOTORS AMERICA, INC.

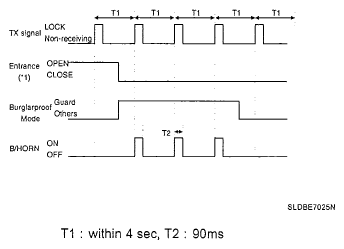

1. When the doors are closed, the TX LOCK receive a signal from the TX LOCK controlled alarming mode to T1, and the B/HORN for T2 if the alarming mode is maintained.

Fig 23: Blinking Pattern - Horn Answer Back

Courtesy of KIA MOTORS AMERICA, INC.
