Charging Systems: Description

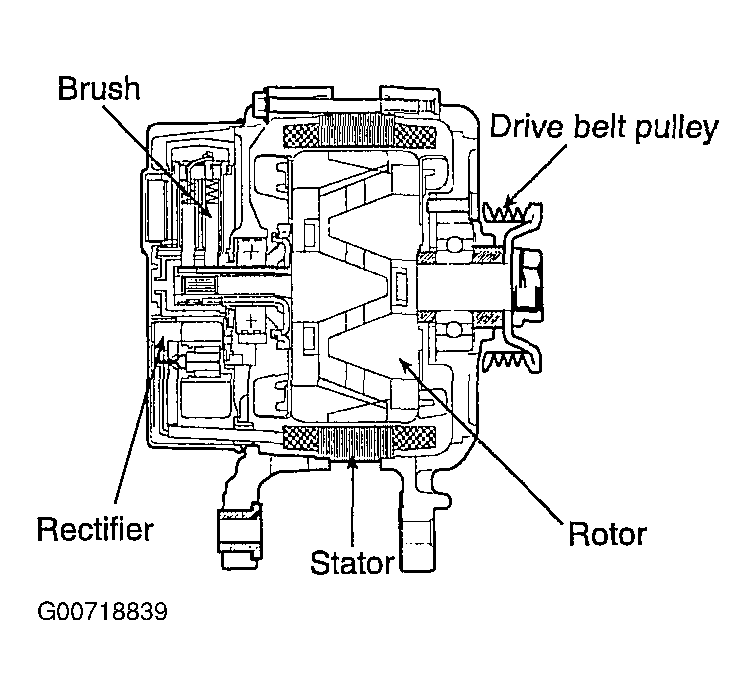

The charging system consists a battery, an alternator with a built-in regulator, and the charging indicator light and wire. The Alternator has built-in diodes, each rectifying AC current to DC current. Therefore, DC current is present at the alternator "B" terminal. Additionally, the alternator and charging voltage is regulated by the battery voltage detection system. The alternator is regulated by the battery voltage detection system. The main components of the alternator are the rotor, stator, rectifier, capacitor, brushes, bearings and V-ribbed belt pulley. The brush holder contains a built-in electronic voltage regulator.
