Charging Systems: Specifications

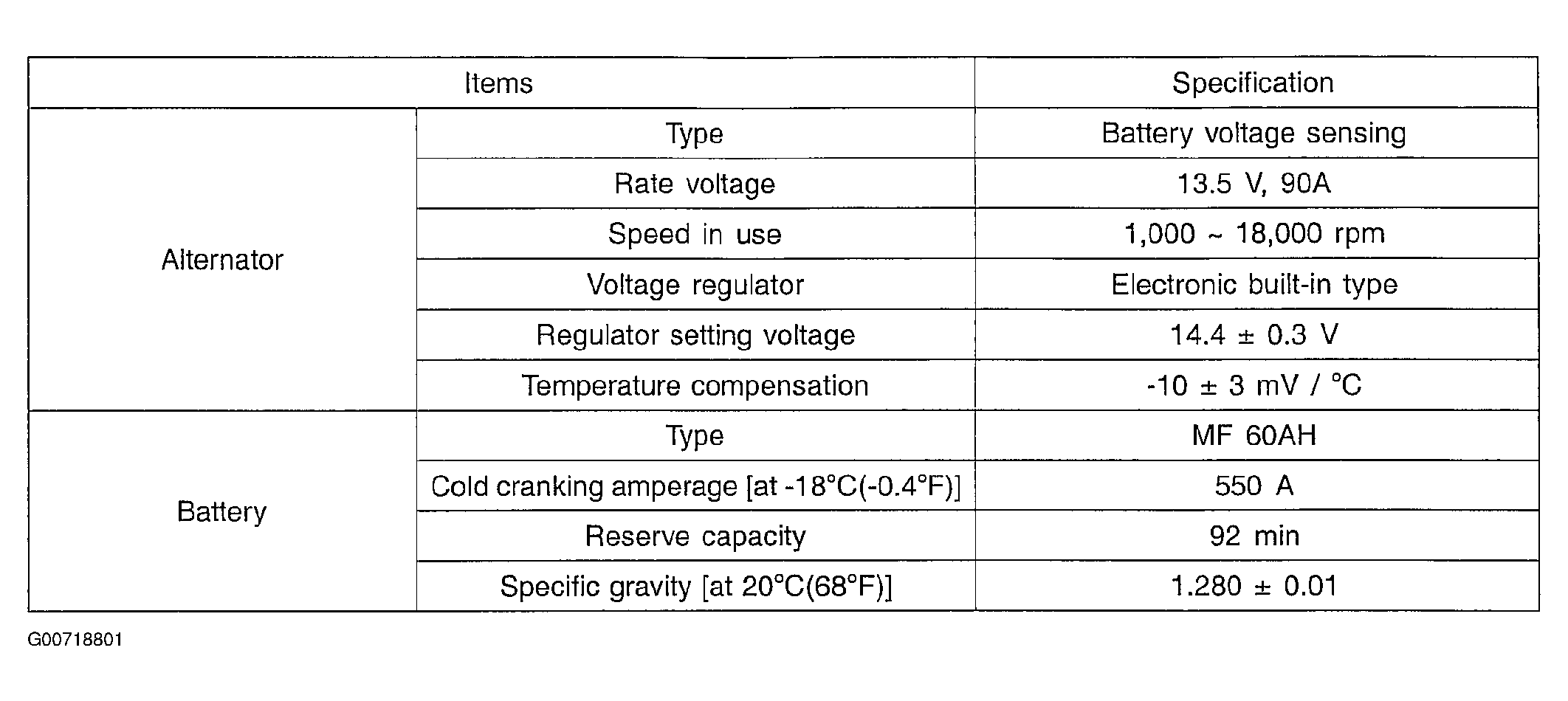

Fig 1: Charging System Specification Chart

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION:

• COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2V or greater at a specified temperature.
• RESERVE CAPACITY RATING is amount of time a battery can deliver 25A and maintain a minimum terminal voltage of 10.5V at 26.7°C (80.1°F).
