Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references

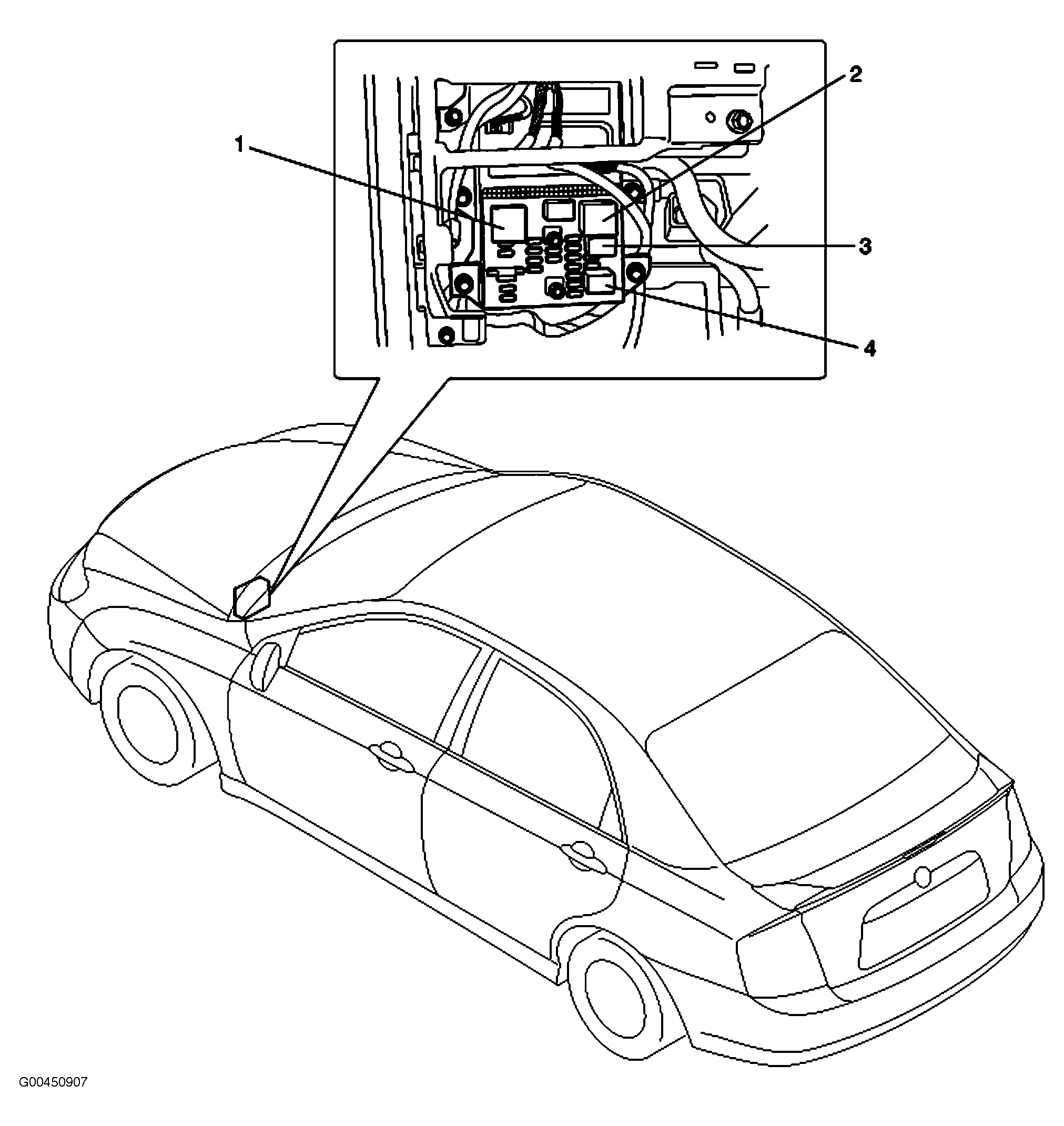

Fig 1: I/P Junction Box

G00450907

Courtesy of KIA MOTORS AMERICA, INC.

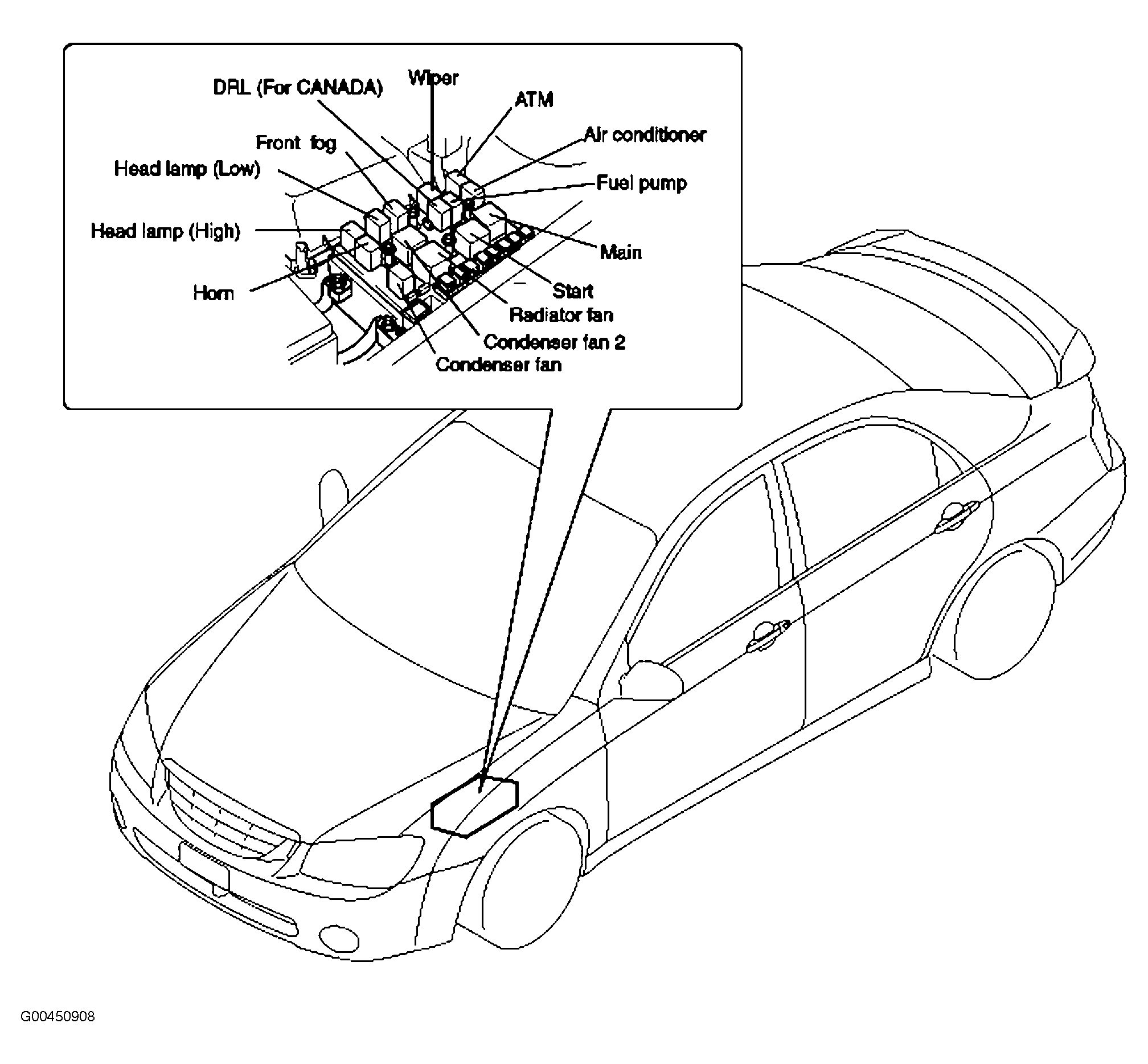

Fig 2: E/R Junction Box

G00450908

Courtesy of KIA MOTORS AMERICA, INC.

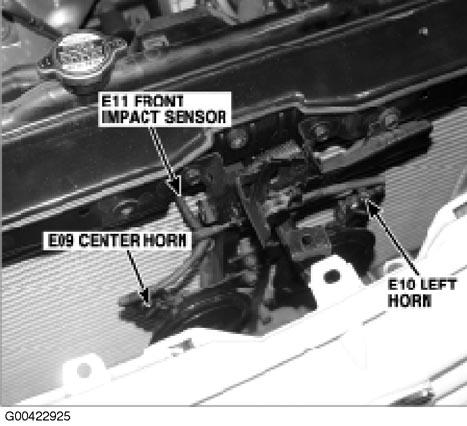

Fig 3: Behind Front Grille

G00422925

Courtesy of KIA MOTORS AMERICA, INC.

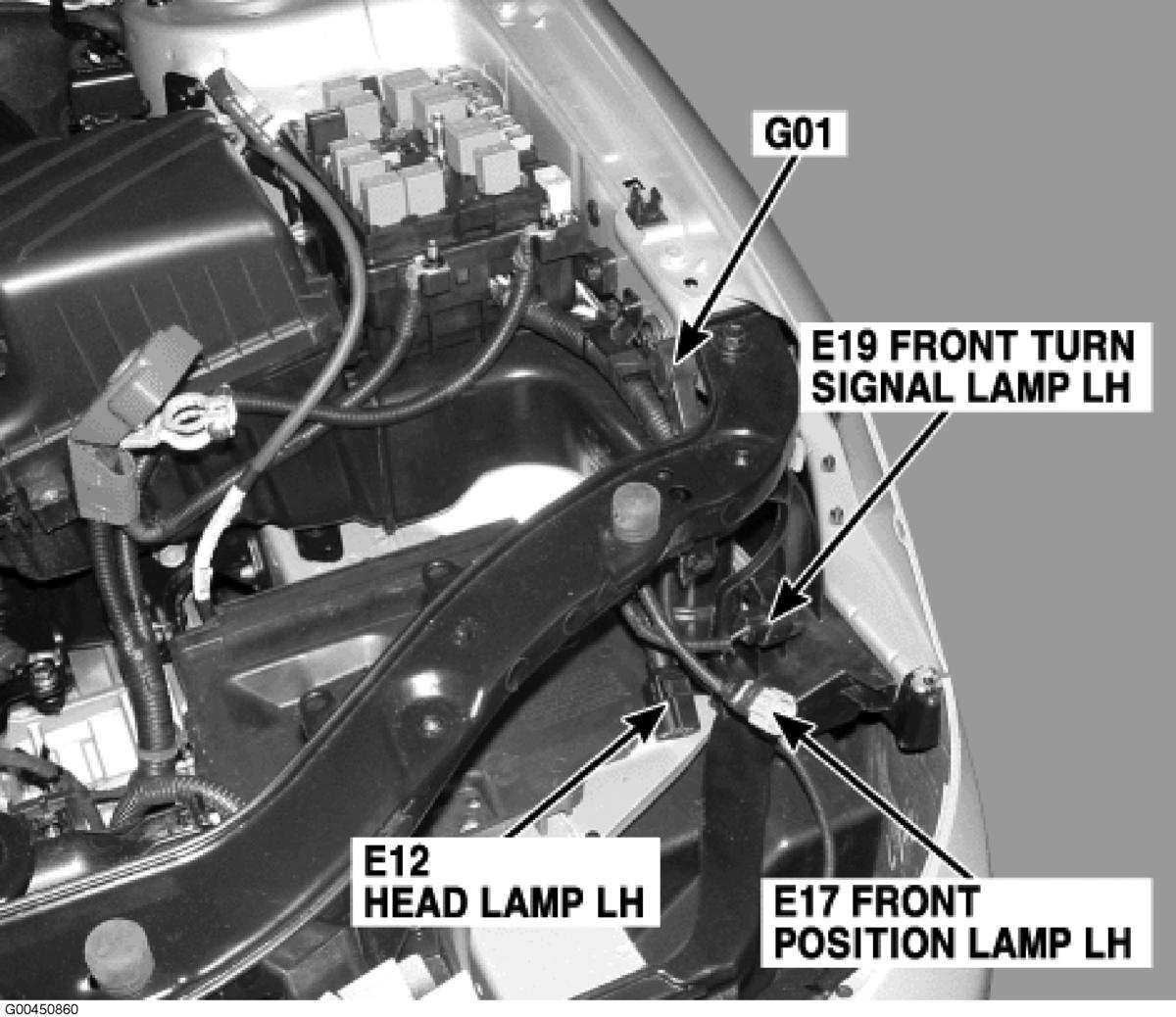

Fig 4: Left Front Of Engine Compartment

G00450860

Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Right Front Of Engine Compartment

G00450861

Courtesy of KIA MOTORS AMERICA, INC.

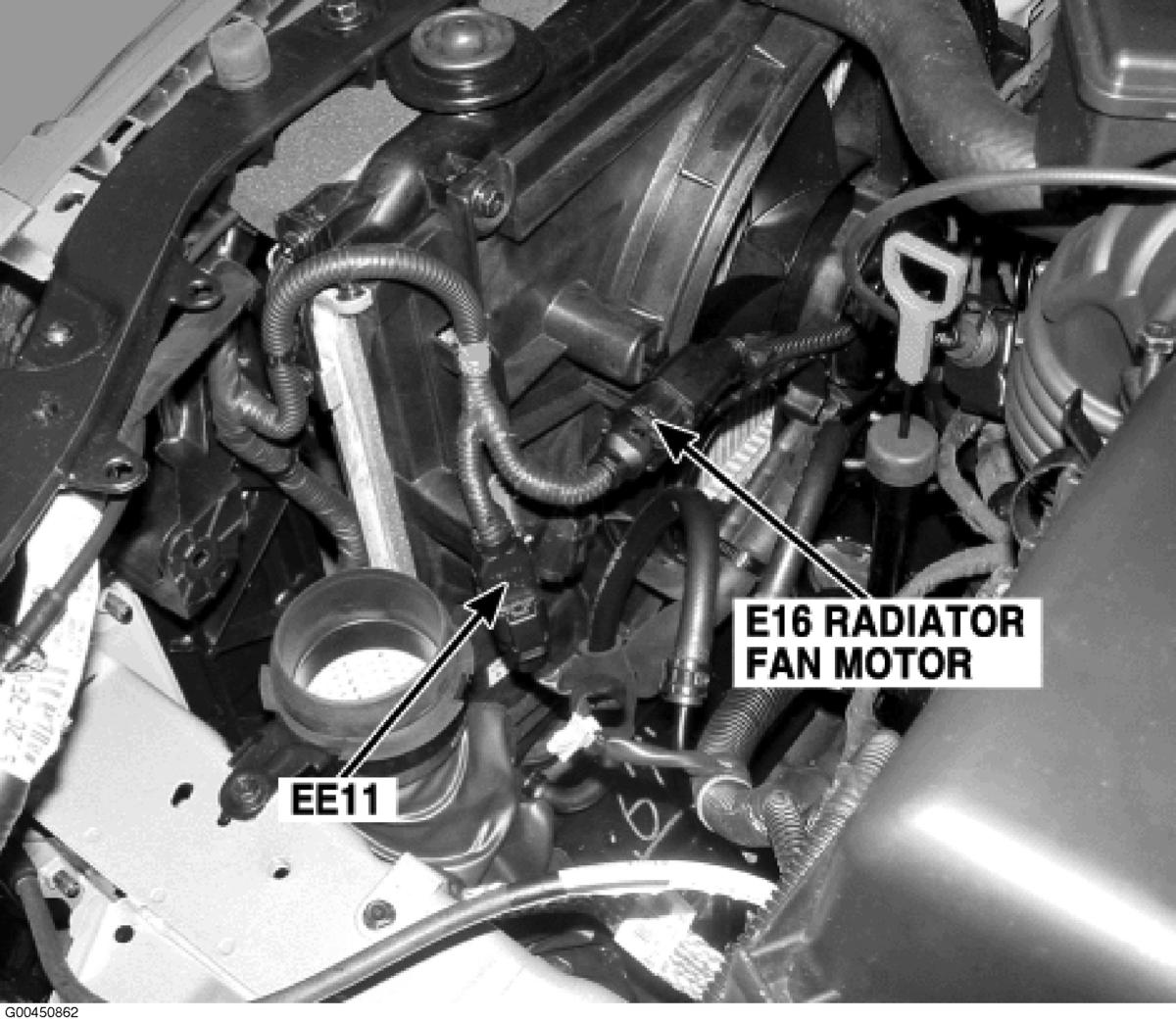

Fig 6: Front Of Engine Compartment

G00450862

Courtesy of KIA MOTORS AMERICA, INC.

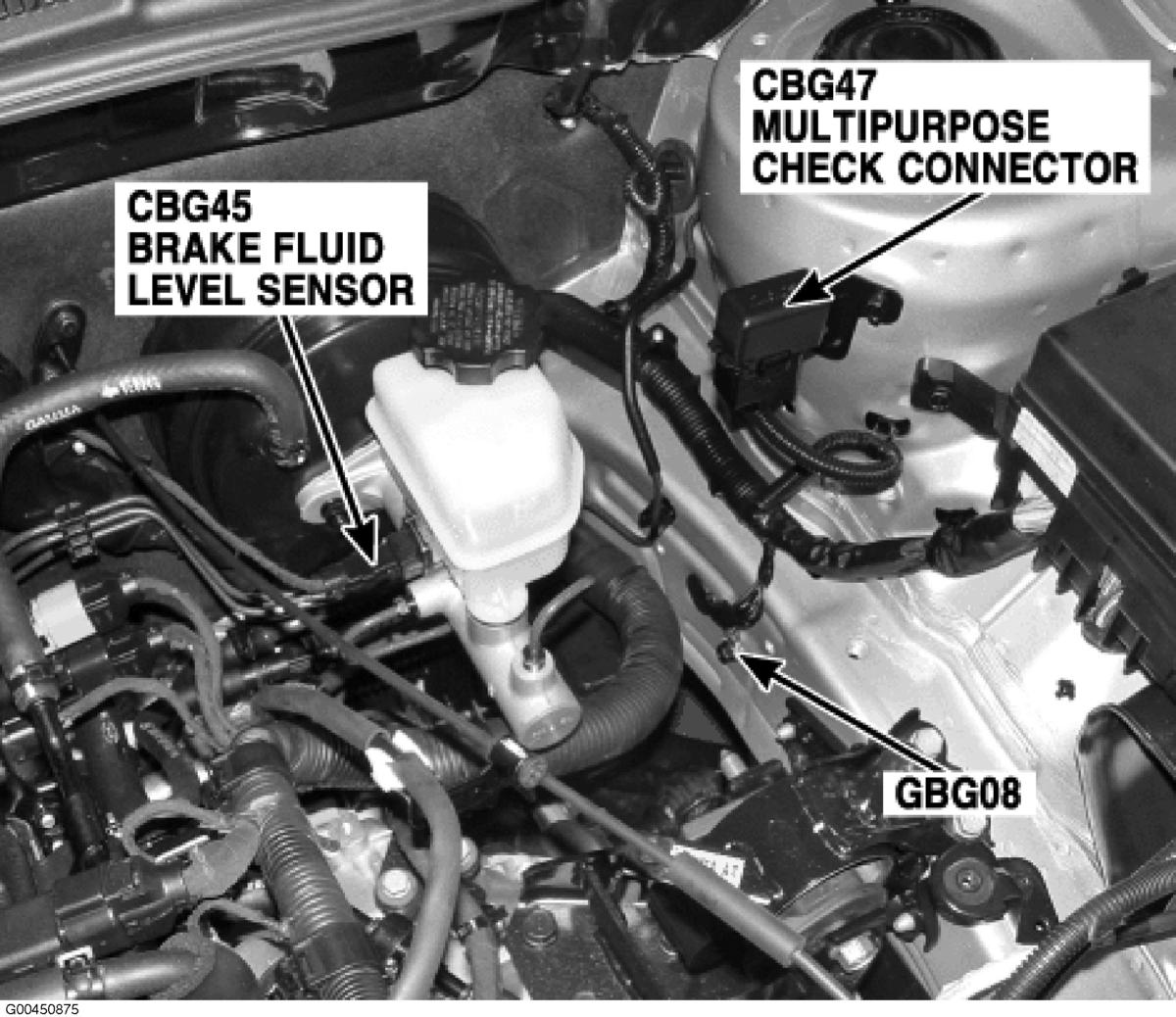

Fig 7: Left Rear Of Engine Compartment

G00450875

Courtesy of KIA MOTORS AMERICA, INC.

Fig 8: Right Rear Of Engine Compartment

G00450869

Courtesy of KIA MOTORS AMERICA, INC.

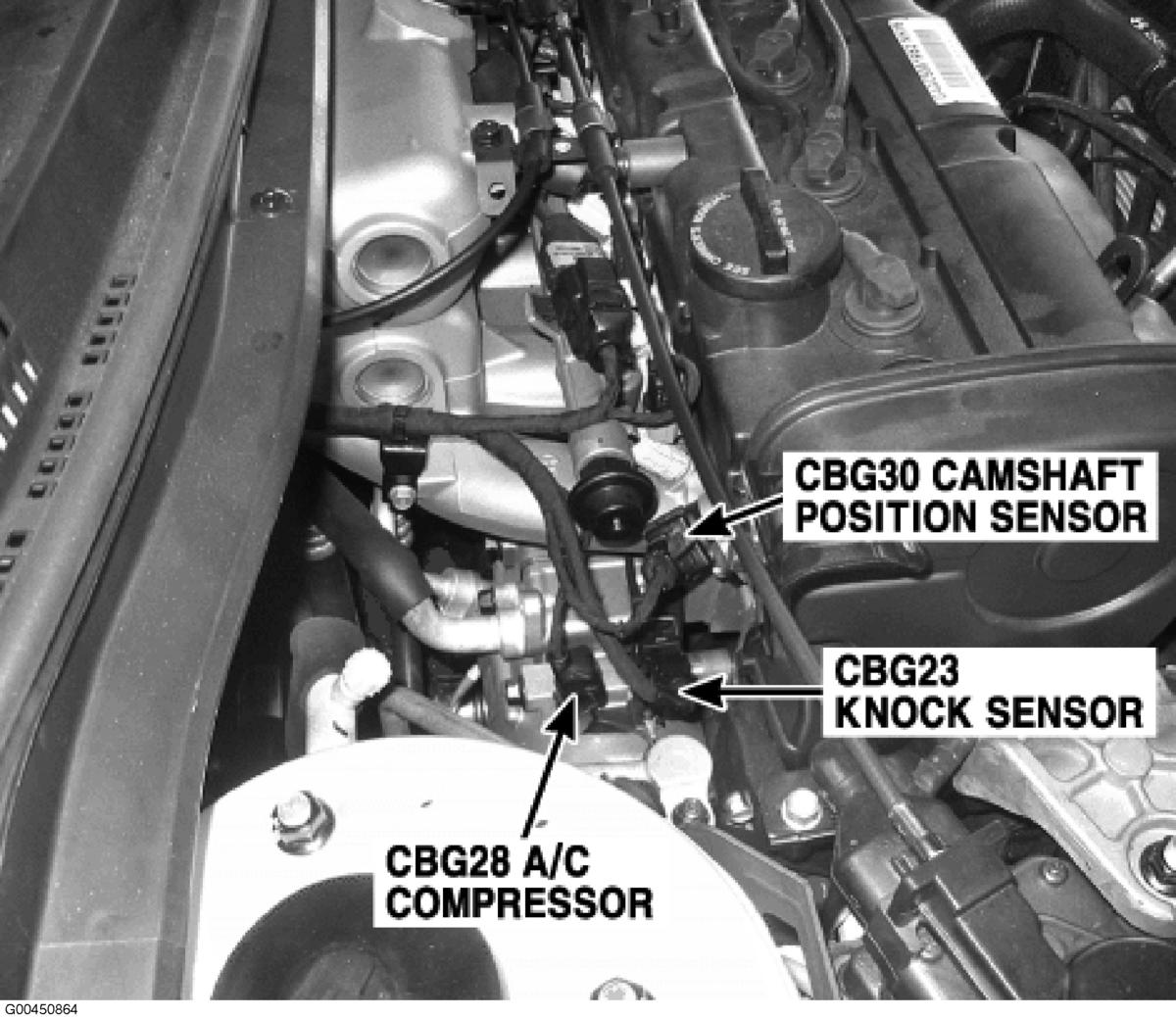

Fig 9: Front Of Engine

G00450864

Courtesy of KIA MOTORS AMERICA, INC.

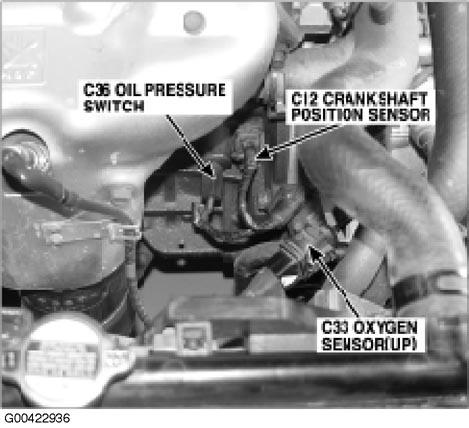

Fig 10: Left Rear Of Engine

G00422936

Courtesy of KIA MOTORS AMERICA, INC.

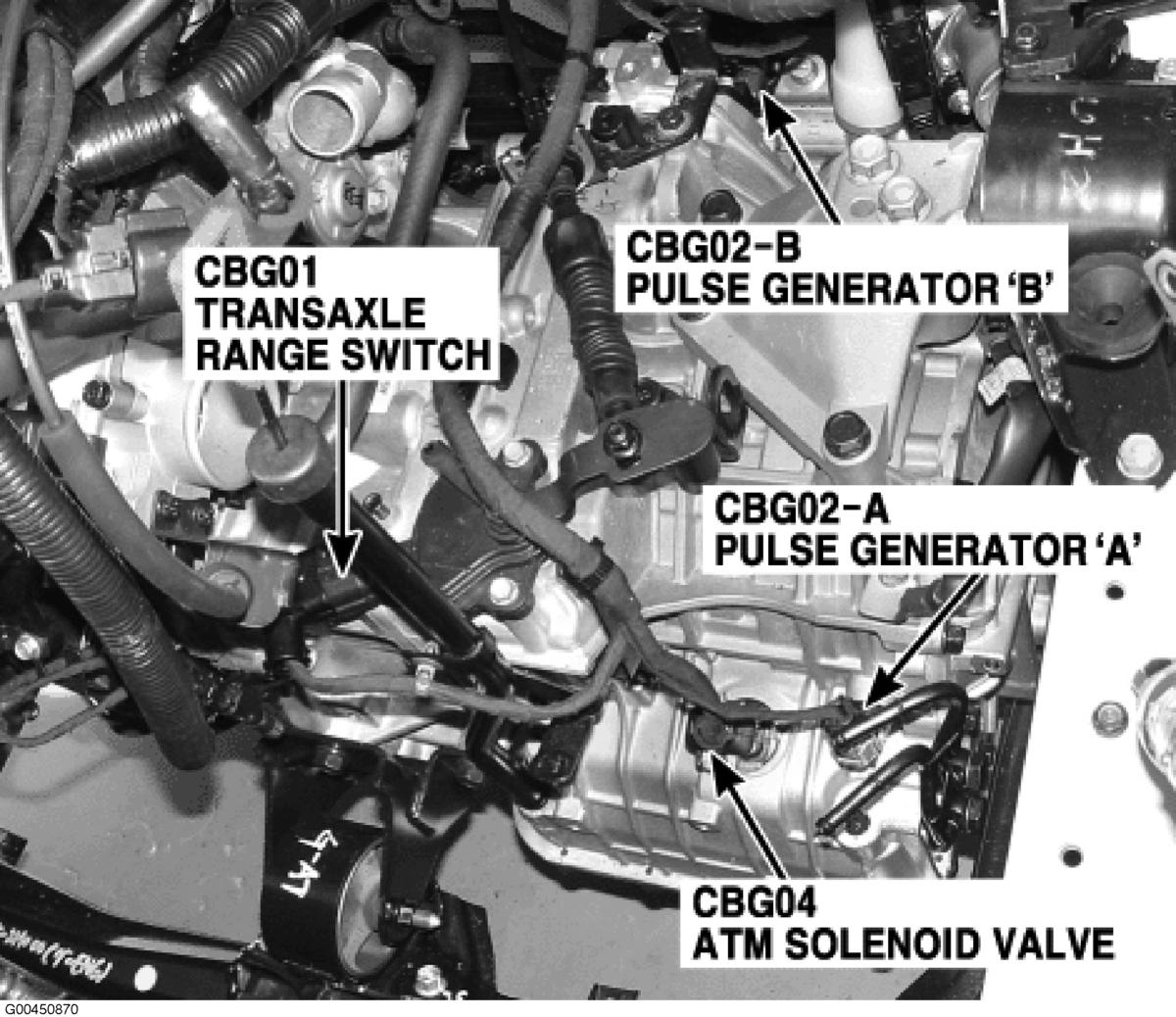

Fig 11: Top Of Transaxle

G00450870

Courtesy of KIA MOTORS AMERICA, INC.

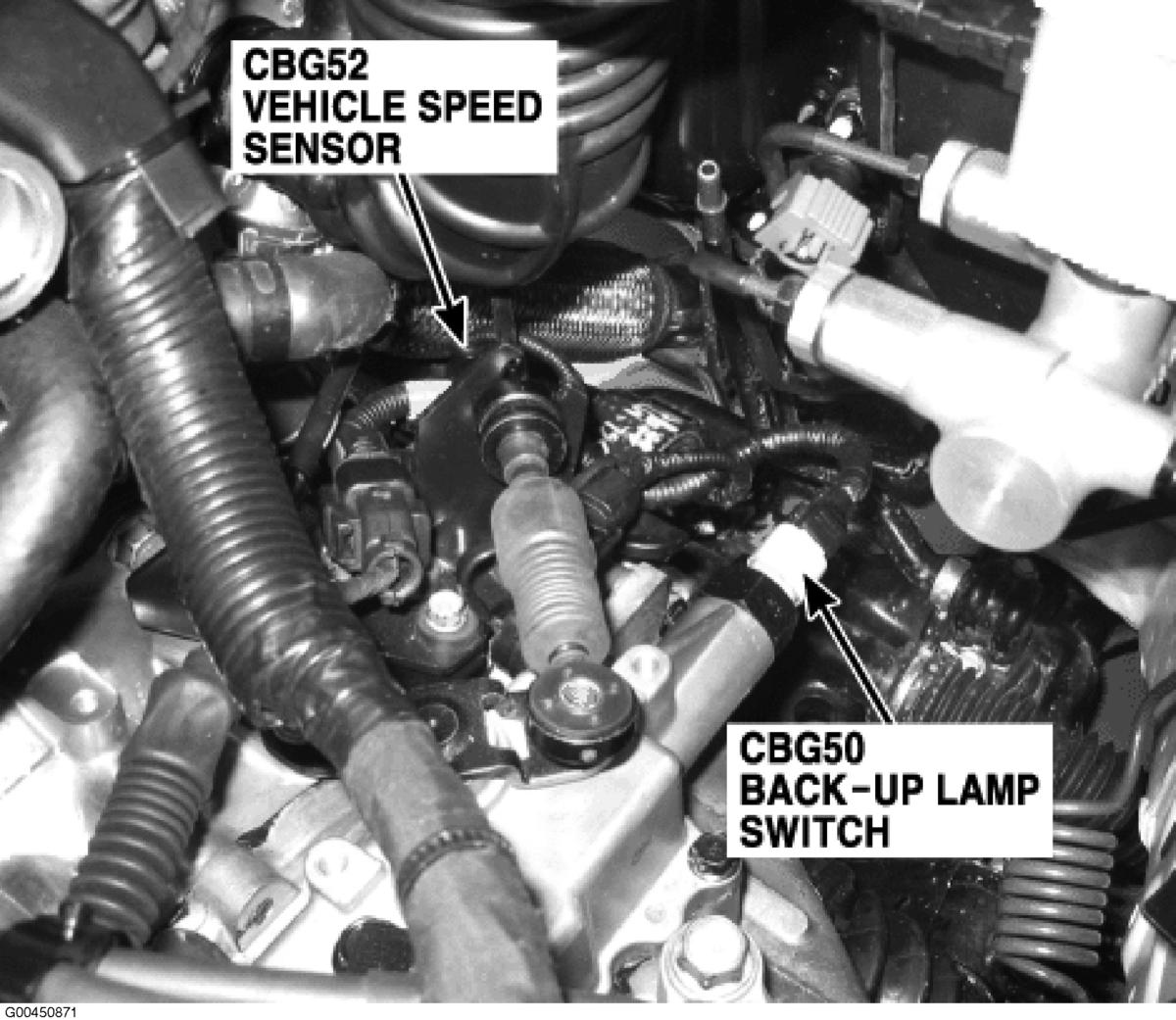

Fig 12: Top Of Transaxle

G00450871

Courtesy of KIA MOTORS AMERICA, INC.

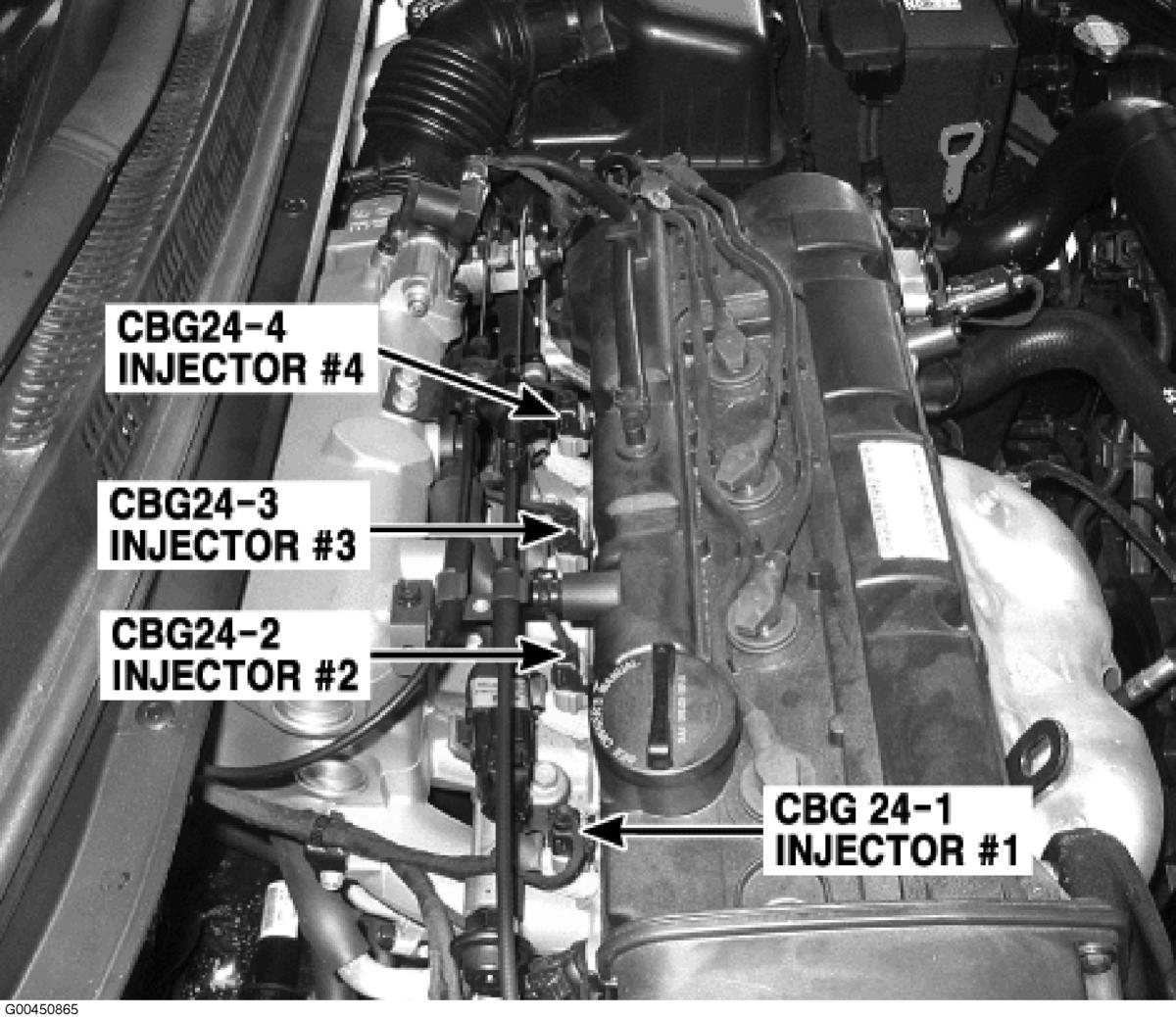

Fig 13: Top Of Engine

G00450865

Courtesy of KIA MOTORS AMERICA, INC.

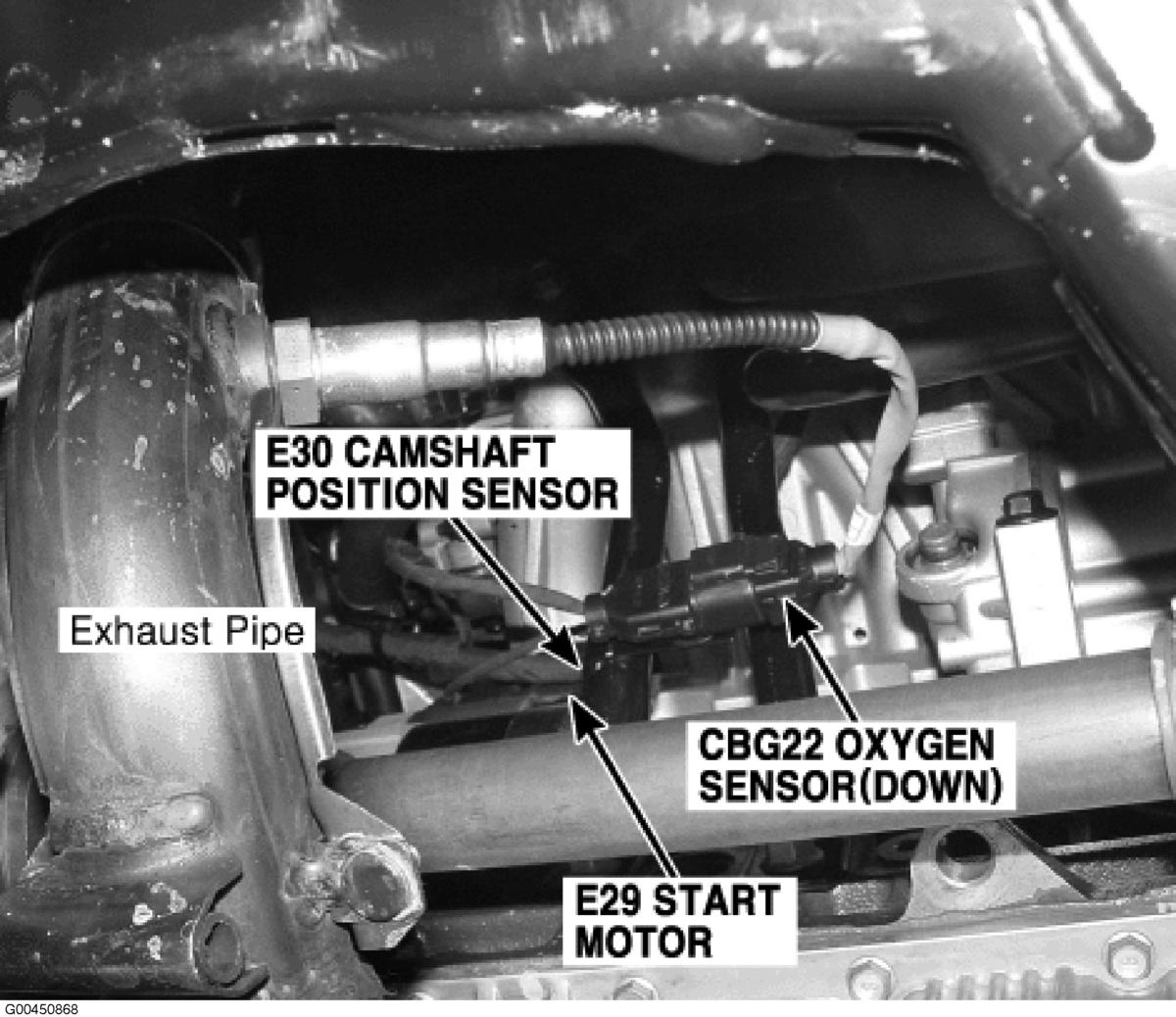

Fig 14: Right Rear Of Engine

G00450868

Courtesy of KIA MOTORS AMERICA, INC.

Fig 15: Left Rear Of Engine Compartment

G00450873

Courtesy of KIA MOTORS AMERICA, INC.

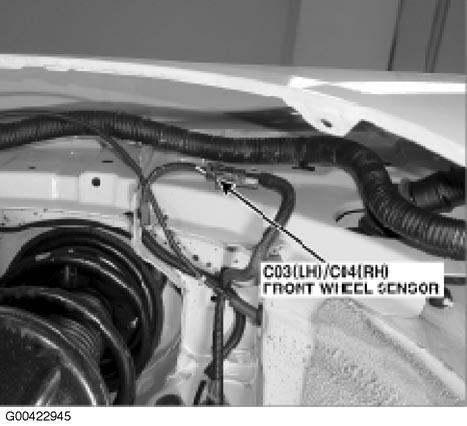

Fig 16: Front Wheelwell (Left Shown)

G00422945

Courtesy of KIA MOTORS AMERICA, INC.

Fig 17: Center Of Dash

G00422947

Courtesy of KIA MOTORS AMERICA, INC.

Fig 18: Right Side Of Dash

G00450877

Courtesy of KIA MOTORS AMERICA, INC.

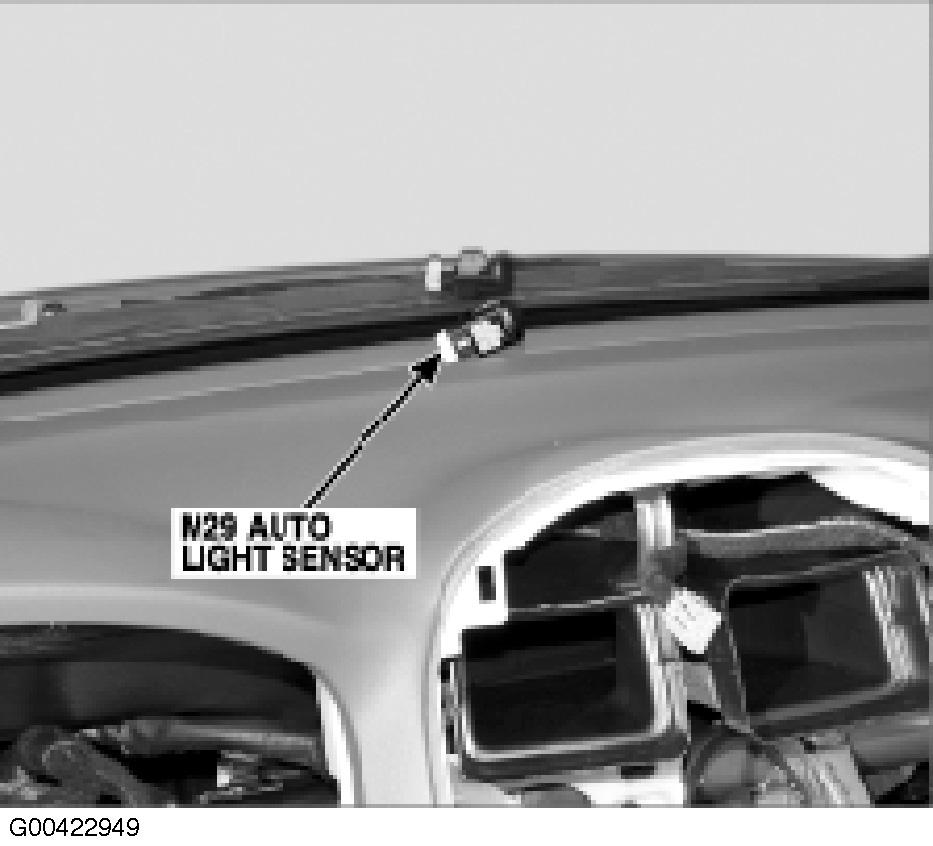

Fig 19: Top Center Of Dash

G00422949

Courtesy of KIA MOTORS AMERICA, INC.

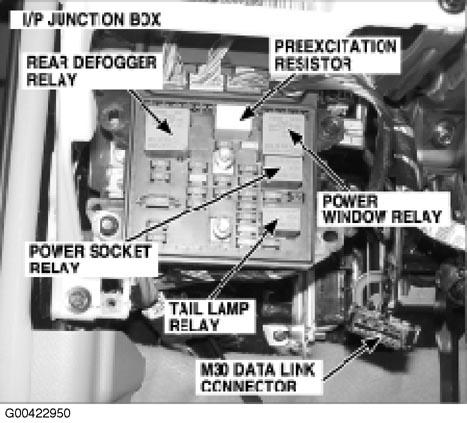

Fig 20: Left Side Of Dash

G00422950

Courtesy of KIA MOTORS AMERICA, INC.

Fig 21: Left Side Of Dash

G00422951

Courtesy of KIA MOTORS AMERICA, INC.

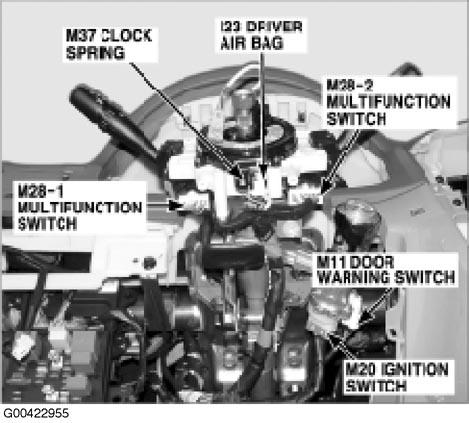

Fig 22: Steering Column

G00422955

Courtesy of KIA MOTORS AMERICA, INC.

Fig 23: Steering Column

G00422956

Courtesy of KIA MOTORS AMERICA, INC.

Fig 24: Under Left Side Of Dash

G00450879

Courtesy of KIA MOTORS AMERICA, INC.

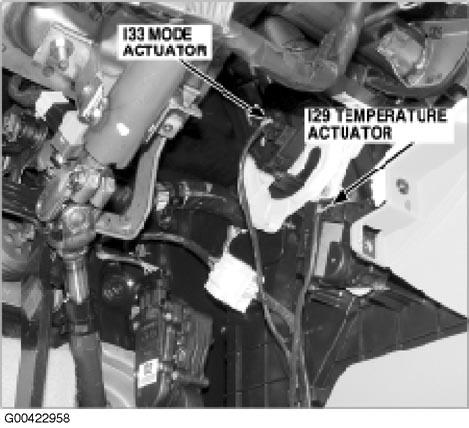

Fig 25: Center Of Dash

G00422958

Courtesy of KIA MOTORS AMERICA, INC.

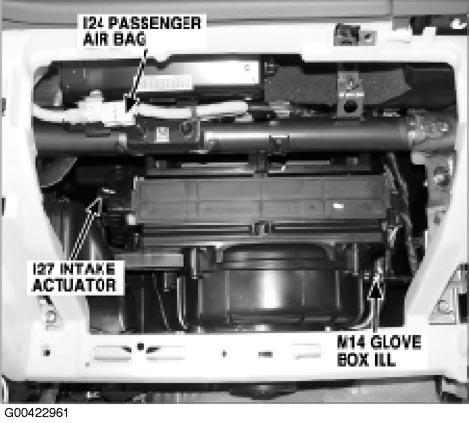

Fig 26: Right Side Of Dash

G00422961

Courtesy of KIA MOTORS AMERICA, INC.

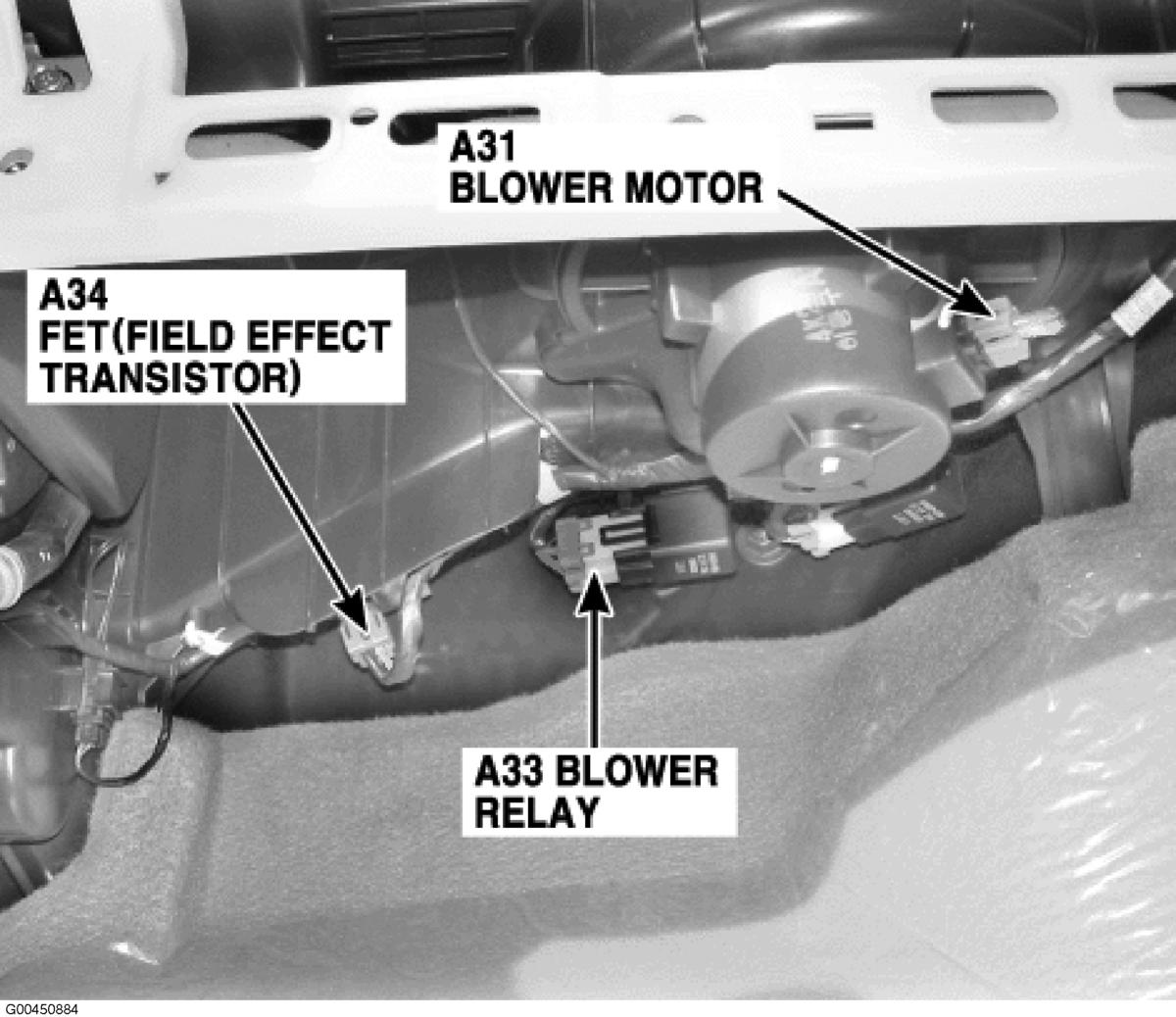

Fig 27: Right Side Of Dash

G00450884

Courtesy of KIA MOTORS AMERICA, INC.

Fig 28: Center Console

G00450885

Courtesy of KIA MOTORS AMERICA, INC.

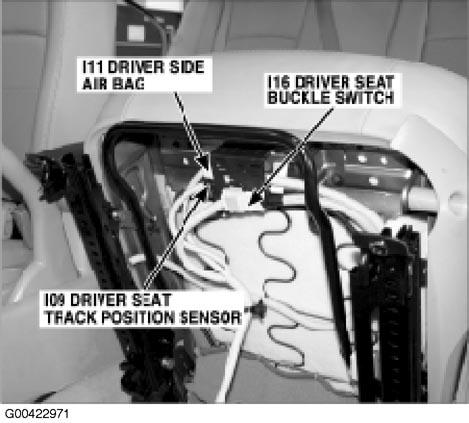

Fig 29: Under Driver's Seat

G00422971

Courtesy of KIA MOTORS AMERICA, INC.

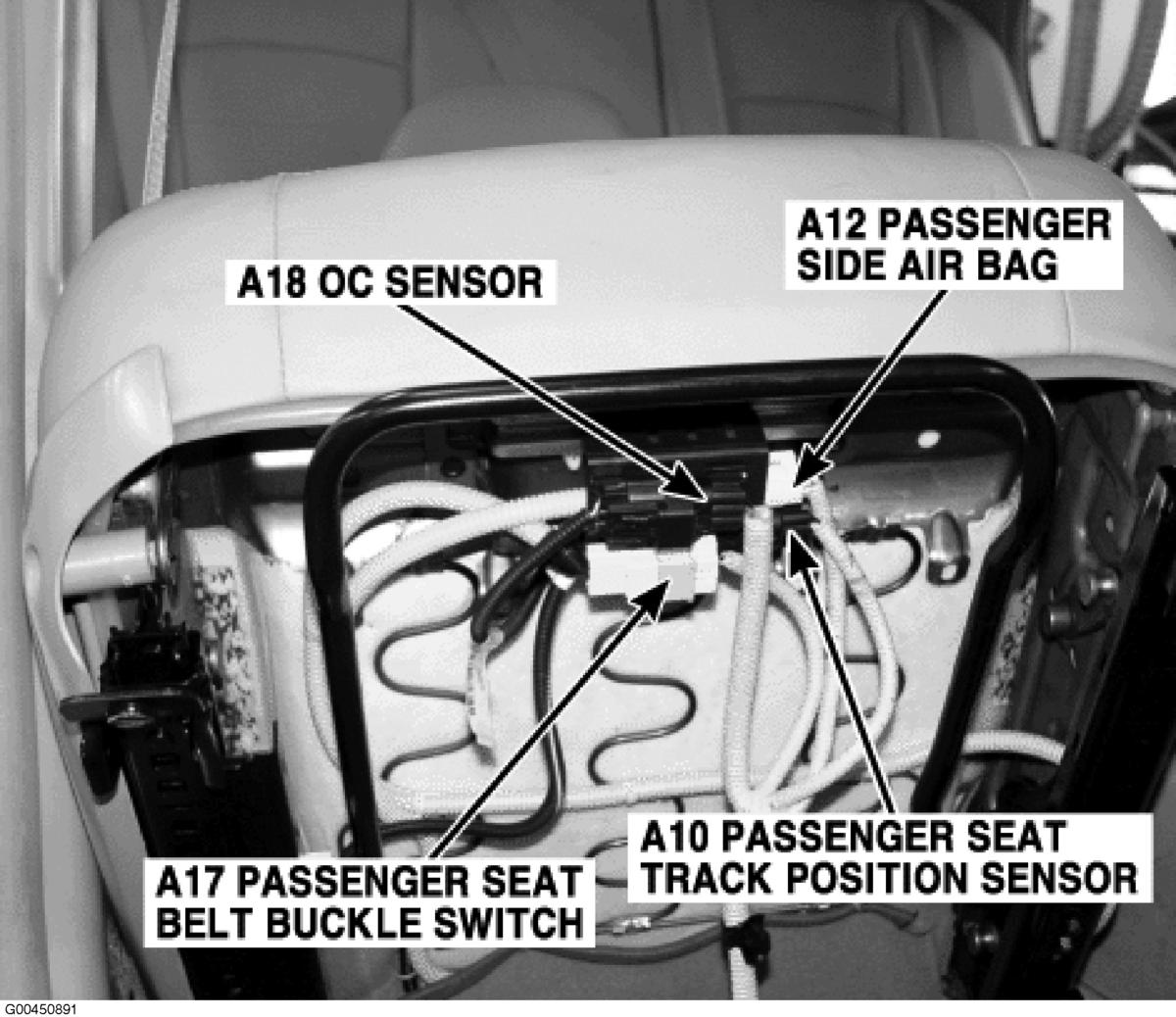

Fig 30: Front Passenger's Seat

G00450891

Courtesy of KIA MOTORS AMERICA, INC.

Fig 31: Left "B" Pillar

G00450892

Courtesy of KIA MOTORS AMERICA, INC.

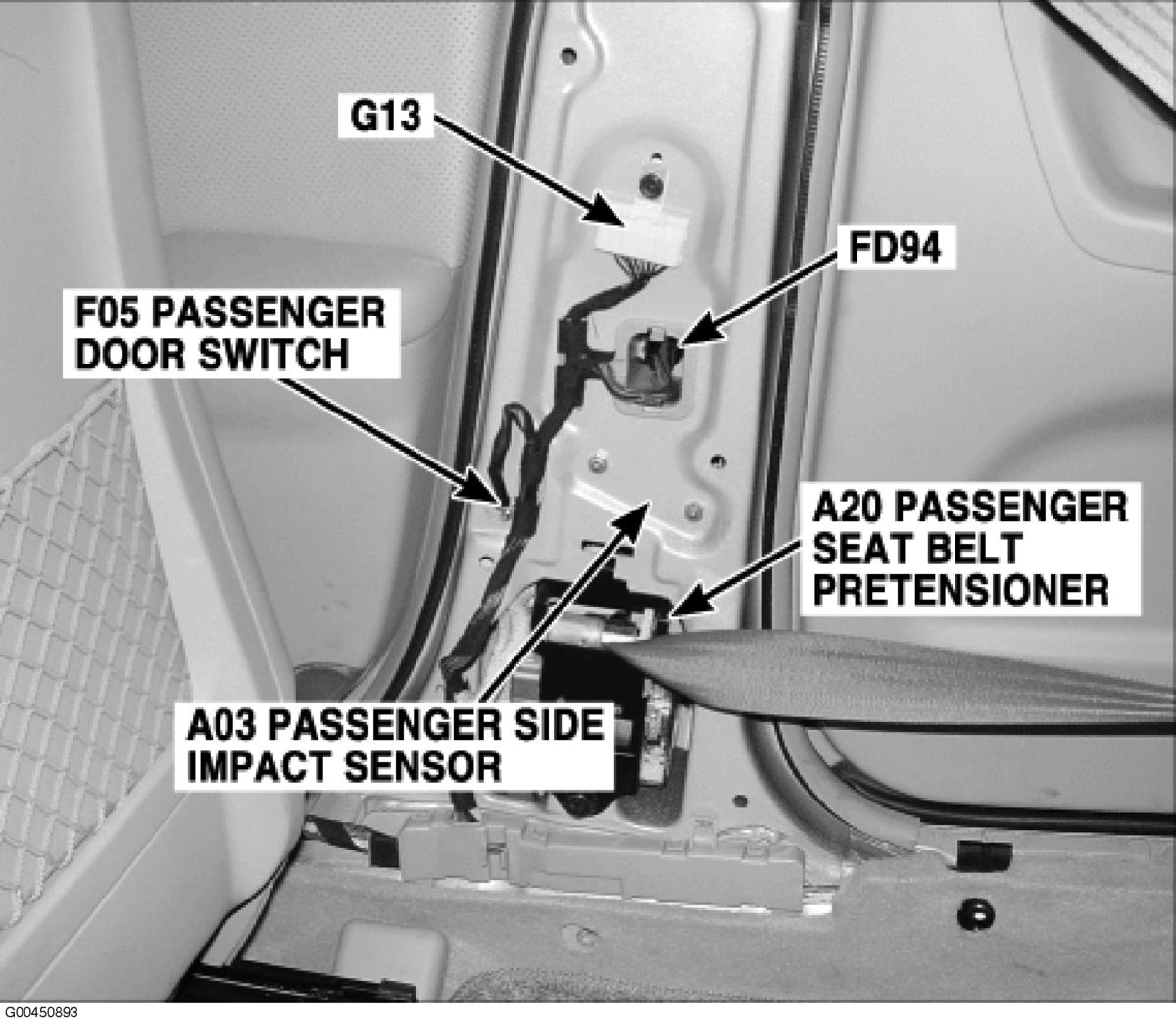

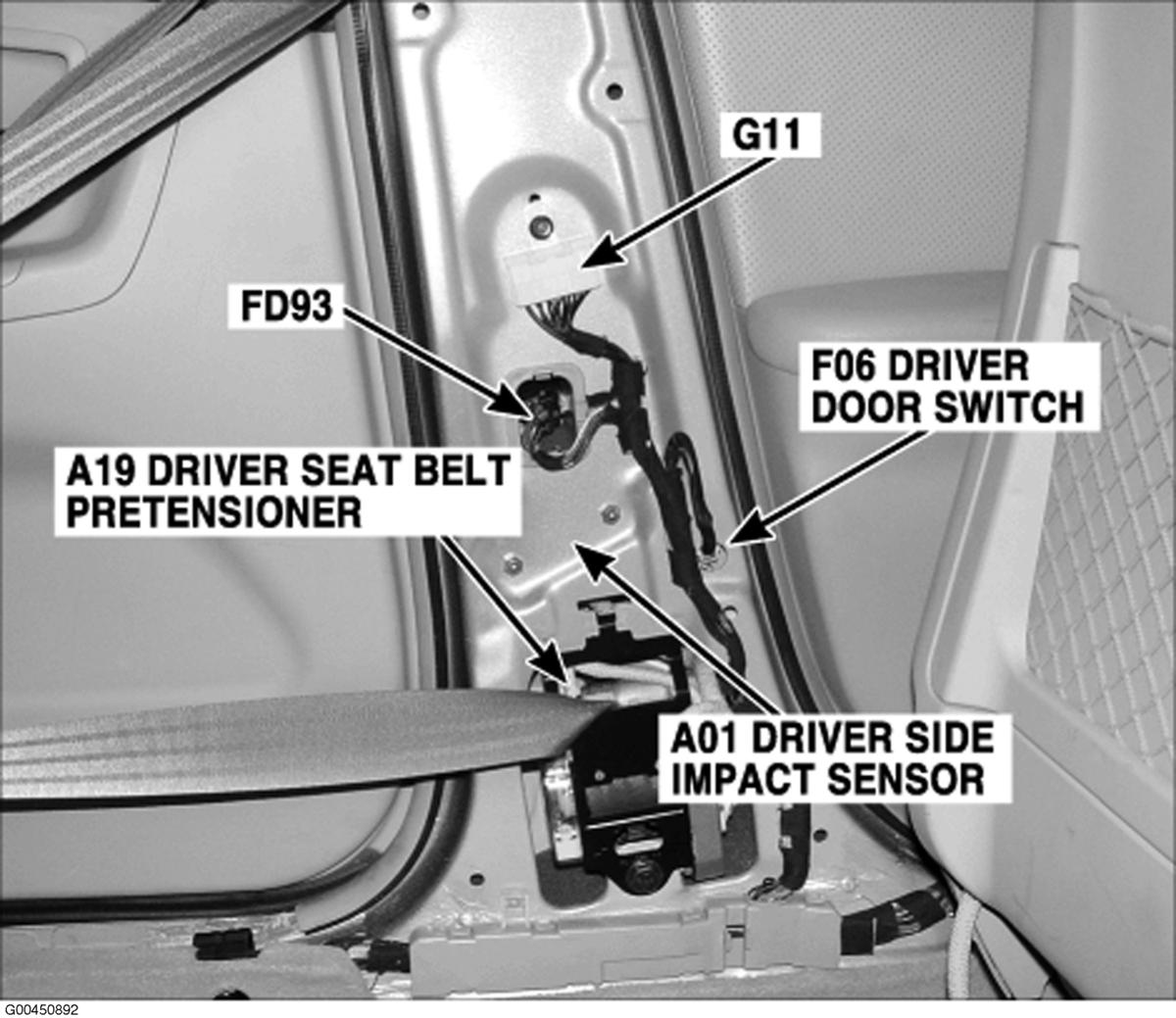

Fig 32: Right "B" Pillar

G00450893

Courtesy of KIA MOTORS AMERICA, INC.

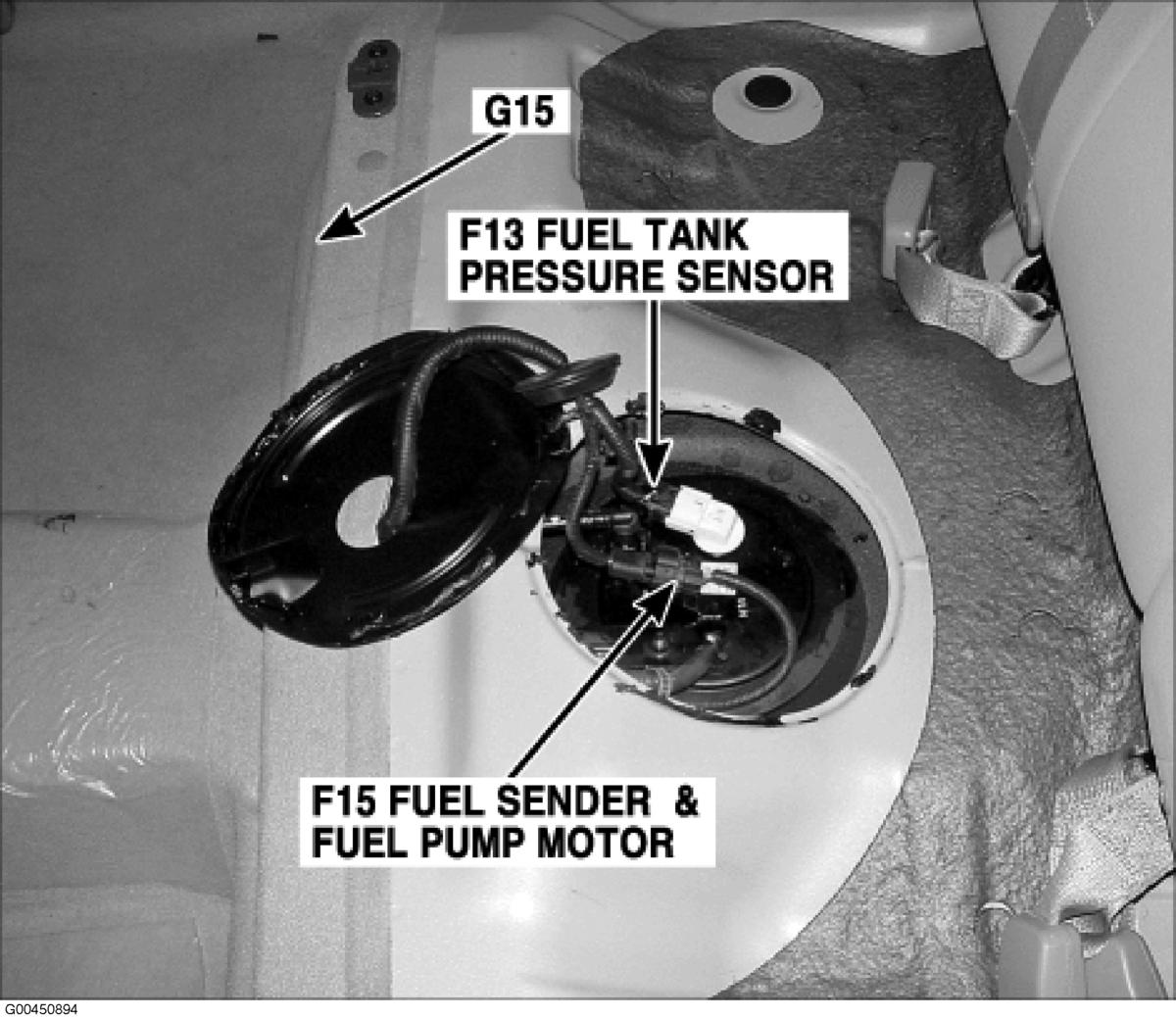

Fig 33: Under Rear Seats

G00450894

Courtesy of KIA MOTORS AMERICA, INC.

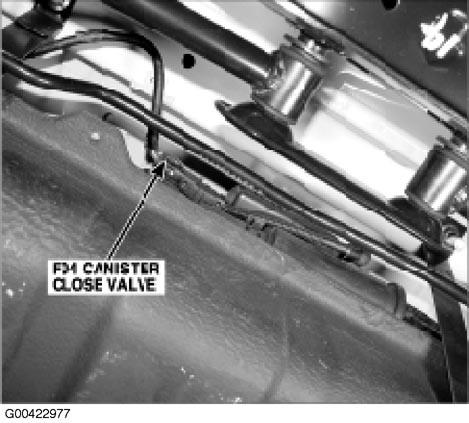

Fig 34: Rear Underside Of Vehicle

G00422977

Courtesy of KIA MOTORS AMERICA, INC.

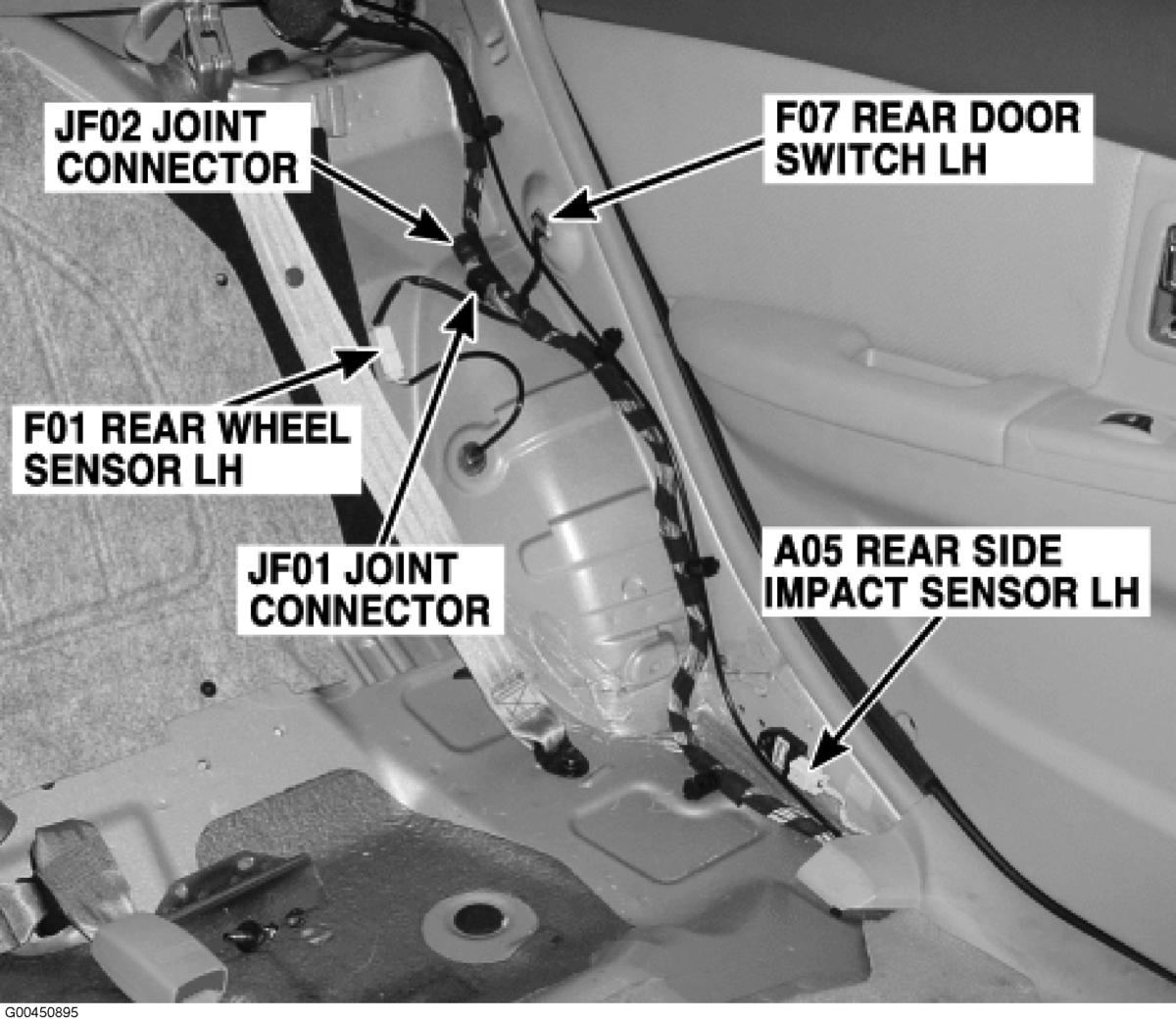

Fig 35: Left "C" Pillar

G00450895

Courtesy of KIA MOTORS AMERICA, INC.

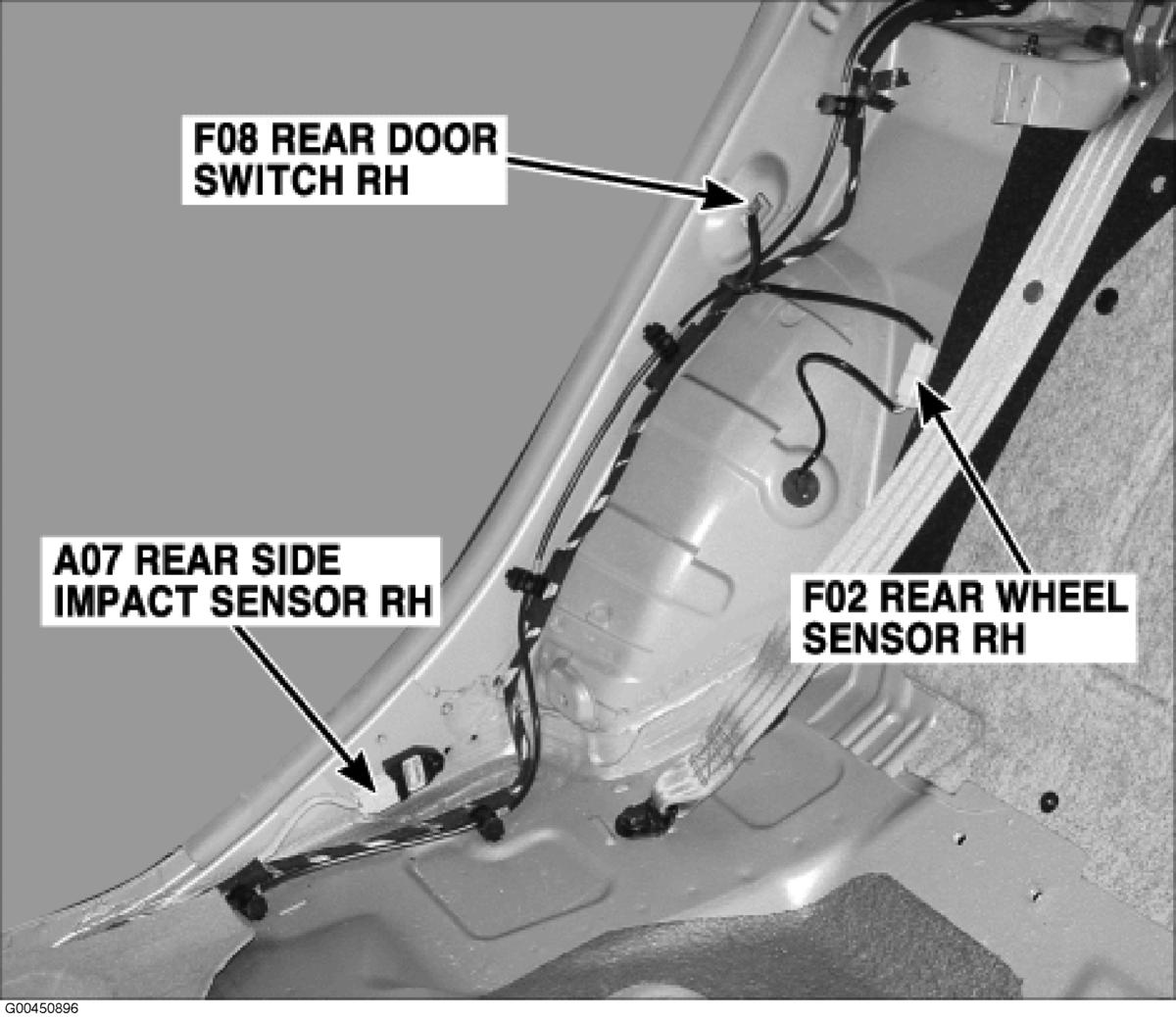

Fig 36: Right "C" Pillar

G00450896

Courtesy of KIA MOTORS AMERICA, INC.

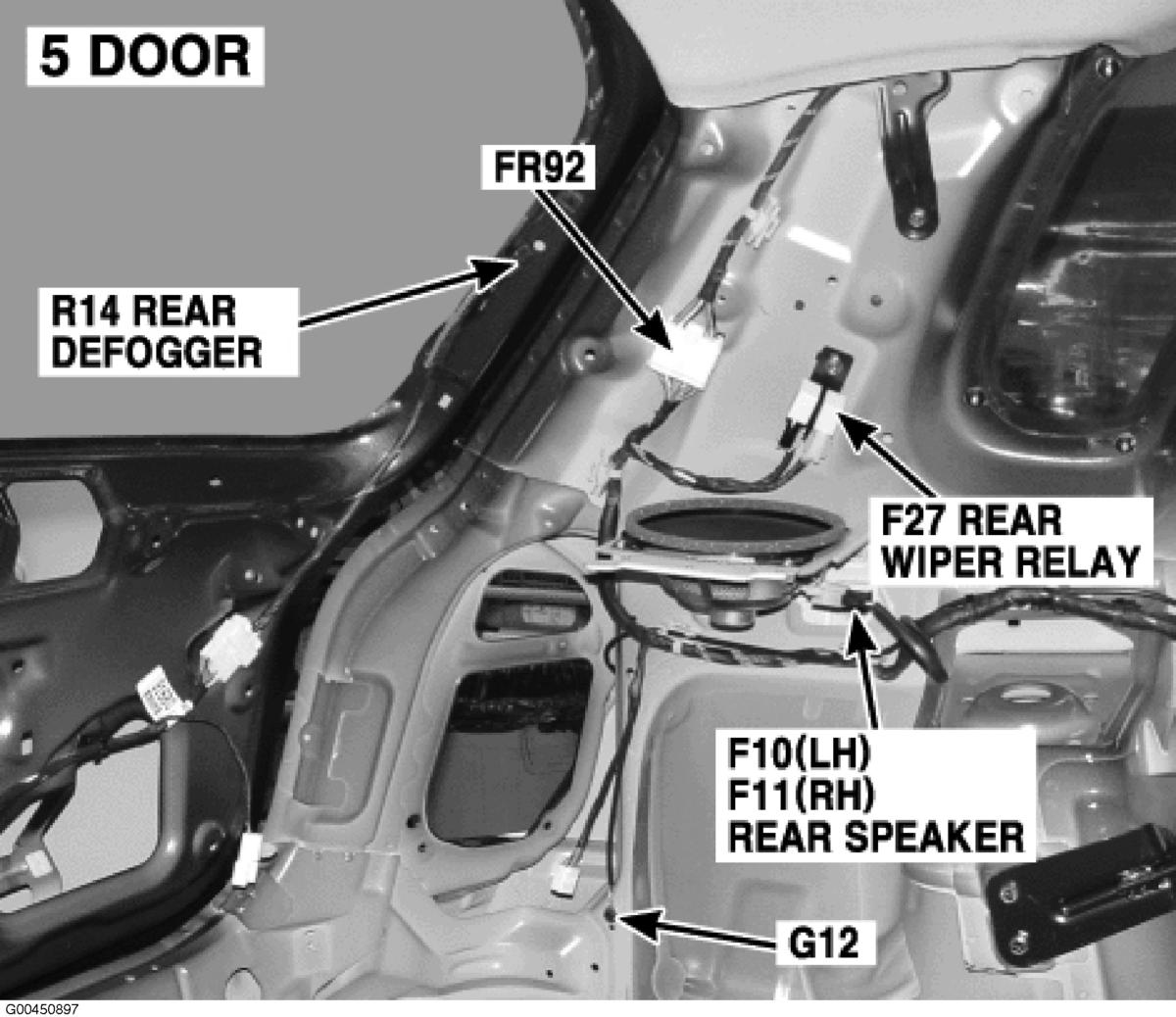

Fig 37: Left "D" Pillar (5 Door)

G00450897

Courtesy of KIA MOTORS AMERICA, INC.

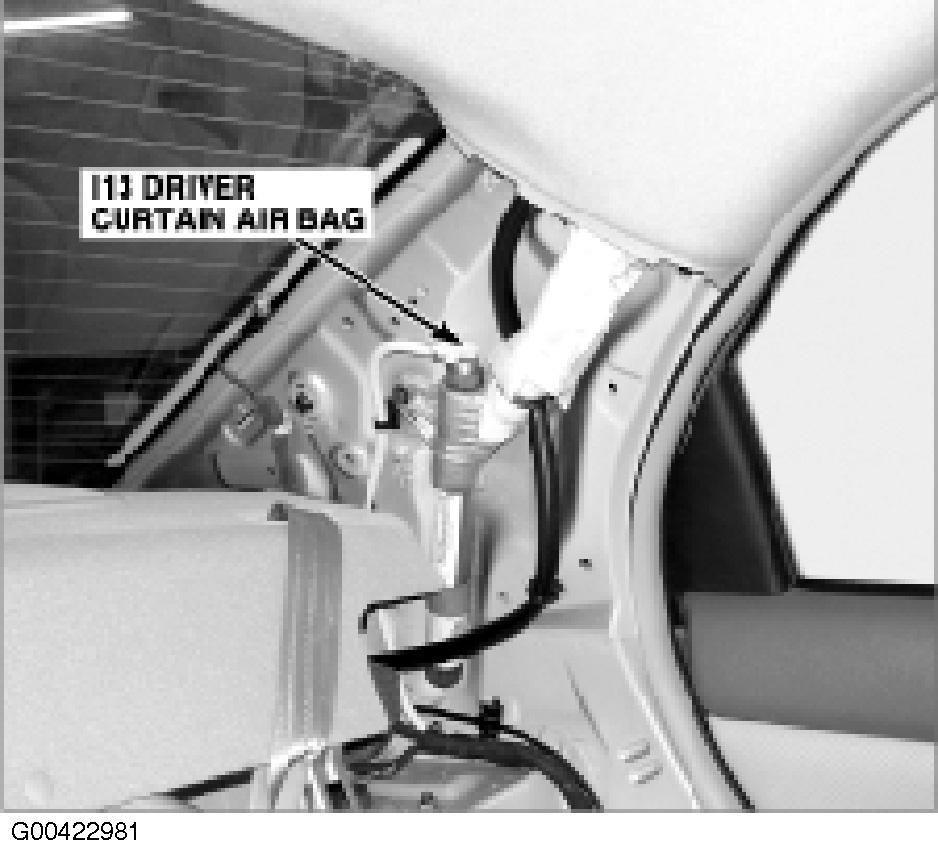

Fig 38: Left "C" Pillar

G00422981

Courtesy of KIA MOTORS AMERICA, INC.

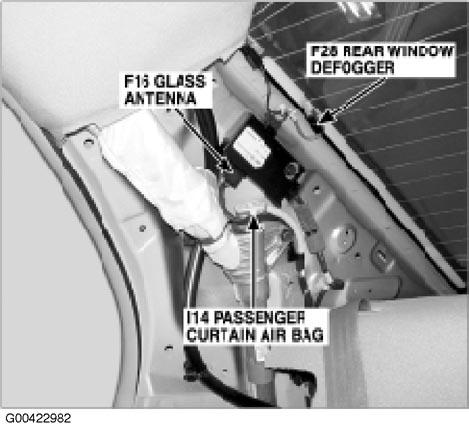

Fig 39: Right "C" Pillar

G00422982

Courtesy of KIA MOTORS AMERICA, INC.

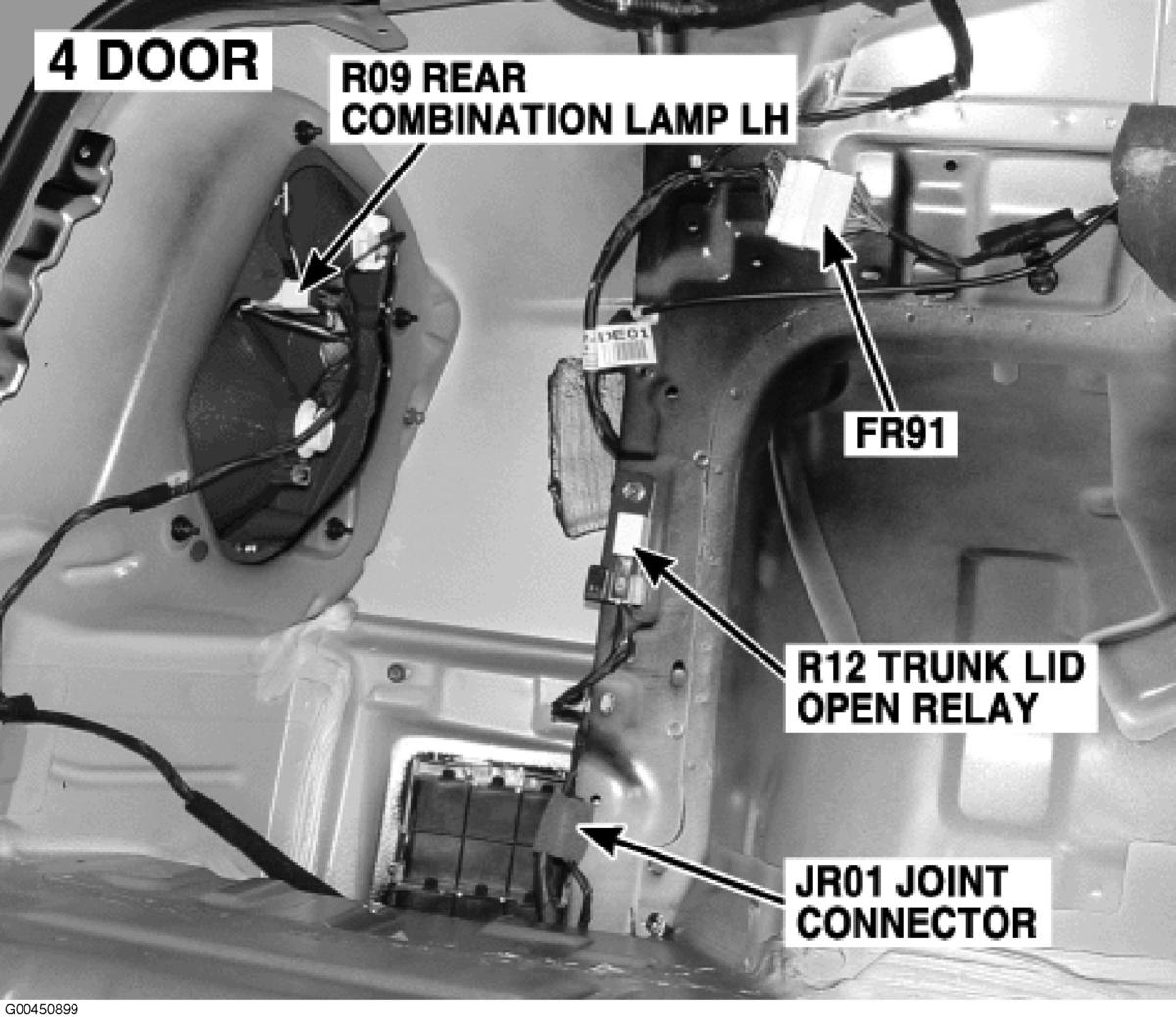

Fig 40: Left Rear Of Trunk (4 Door)

G00450899

Courtesy of KIA MOTORS AMERICA, INC.

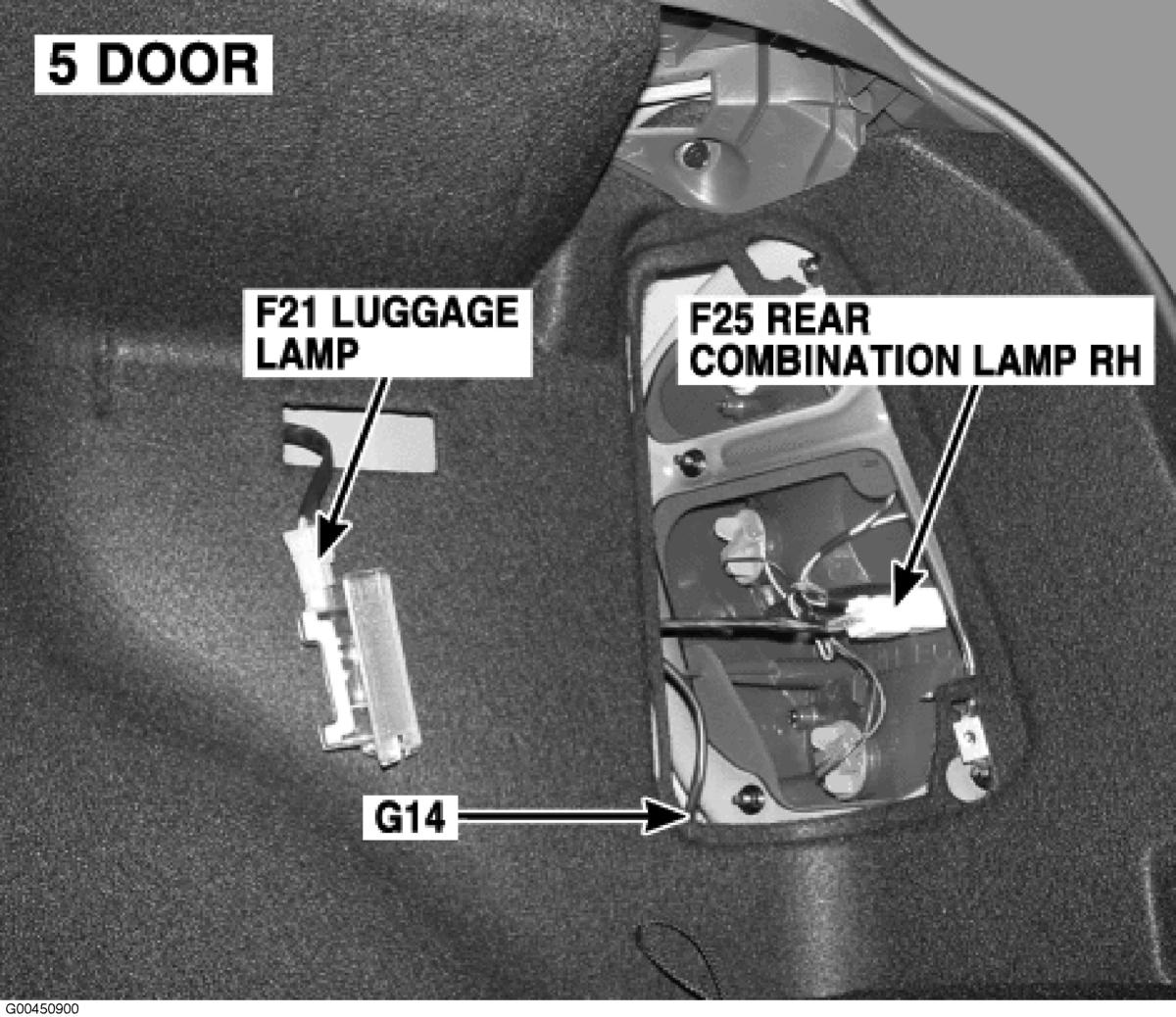

Fig 41: Right Rear Of Luggage Compartment (5 Door)

G00450900

Courtesy of KIA MOTORS AMERICA, INC.

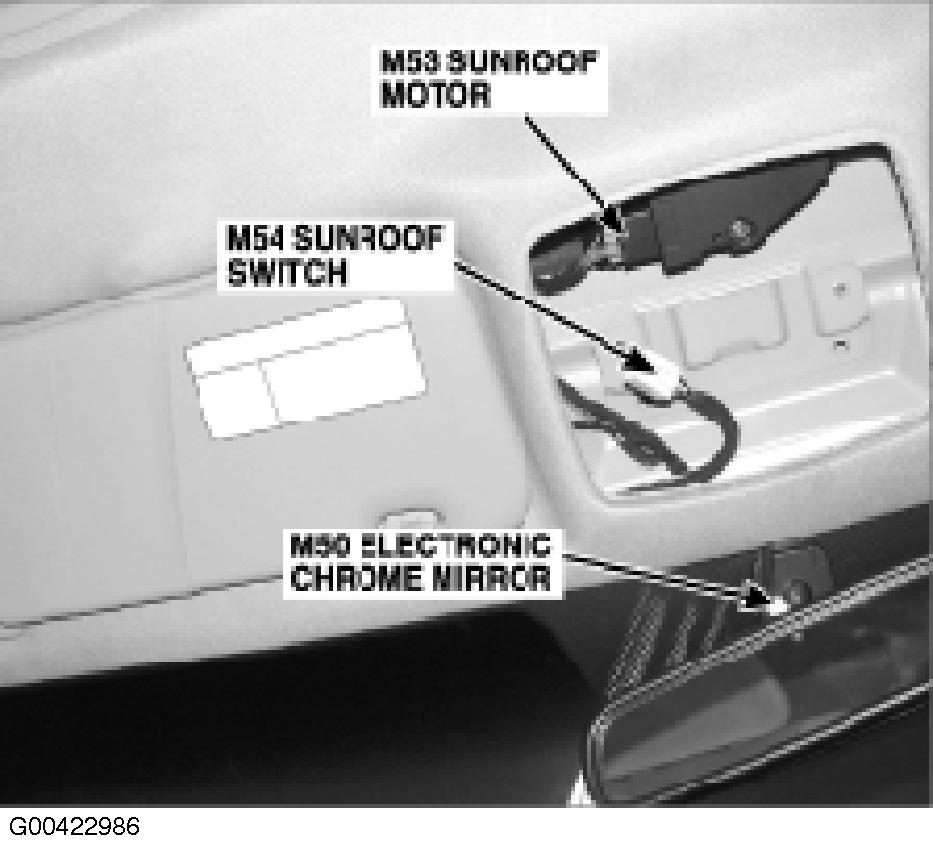

Fig 42: Center Front Of Roof

G00422986

Courtesy of KIA MOTORS AMERICA, INC.

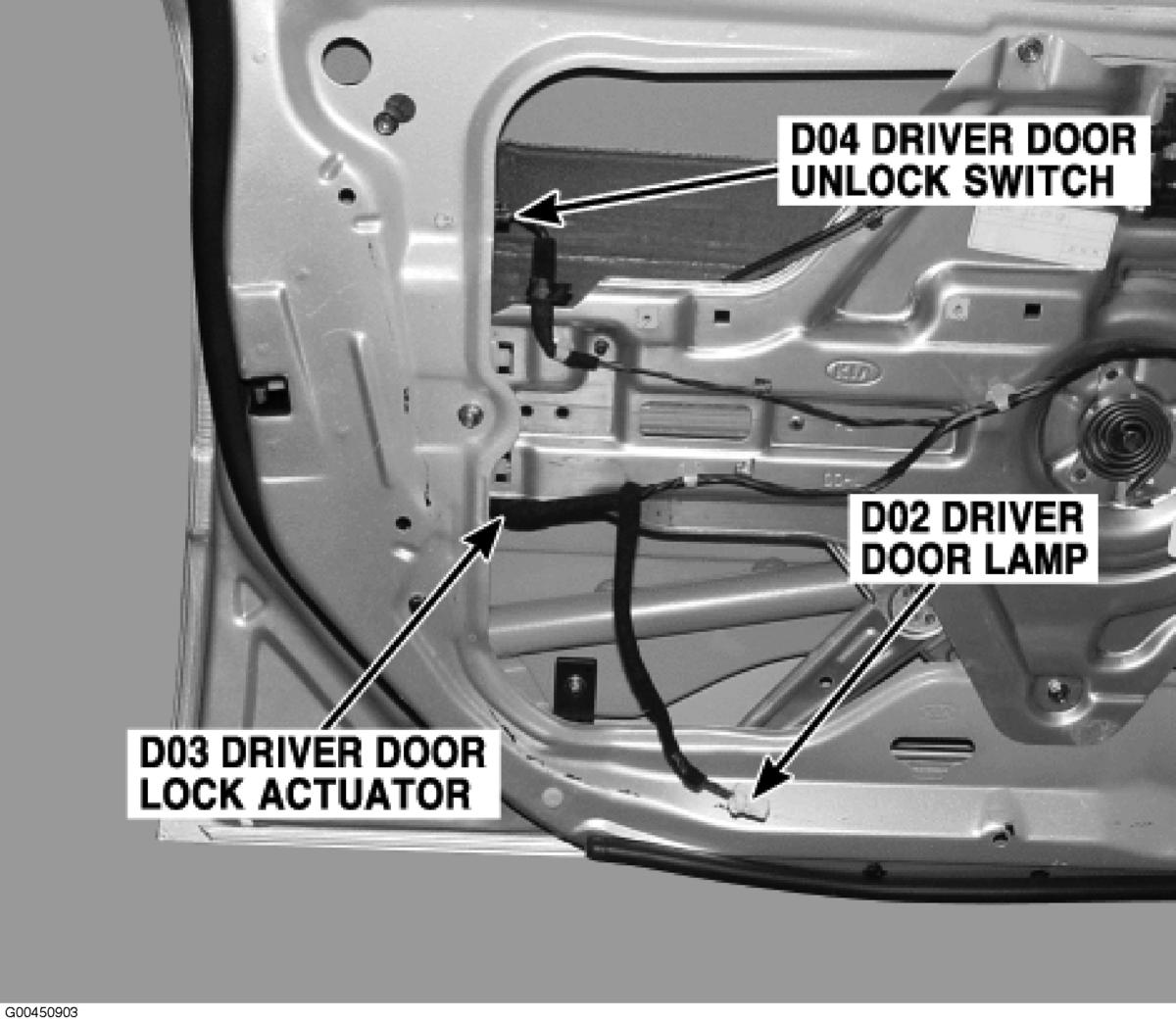

Fig 43: Left Front Door

G00450903

Courtesy of KIA MOTORS AMERICA, INC.

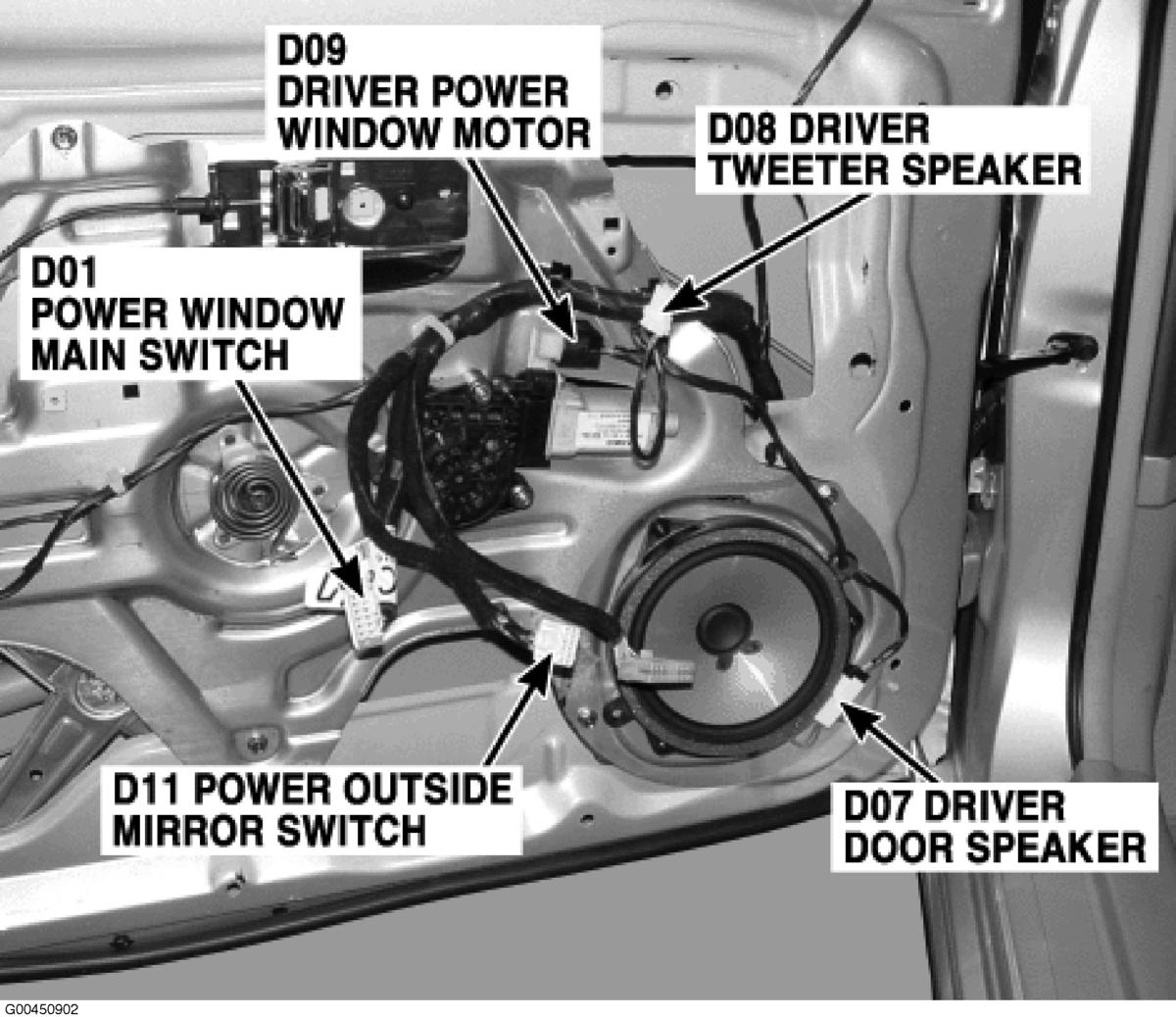

Fig 44: Left Front Door

G00450902

Courtesy of KIA MOTORS AMERICA, INC.

Fig 45: Right Front Door

G00450905

Courtesy of KIA MOTORS AMERICA, INC.

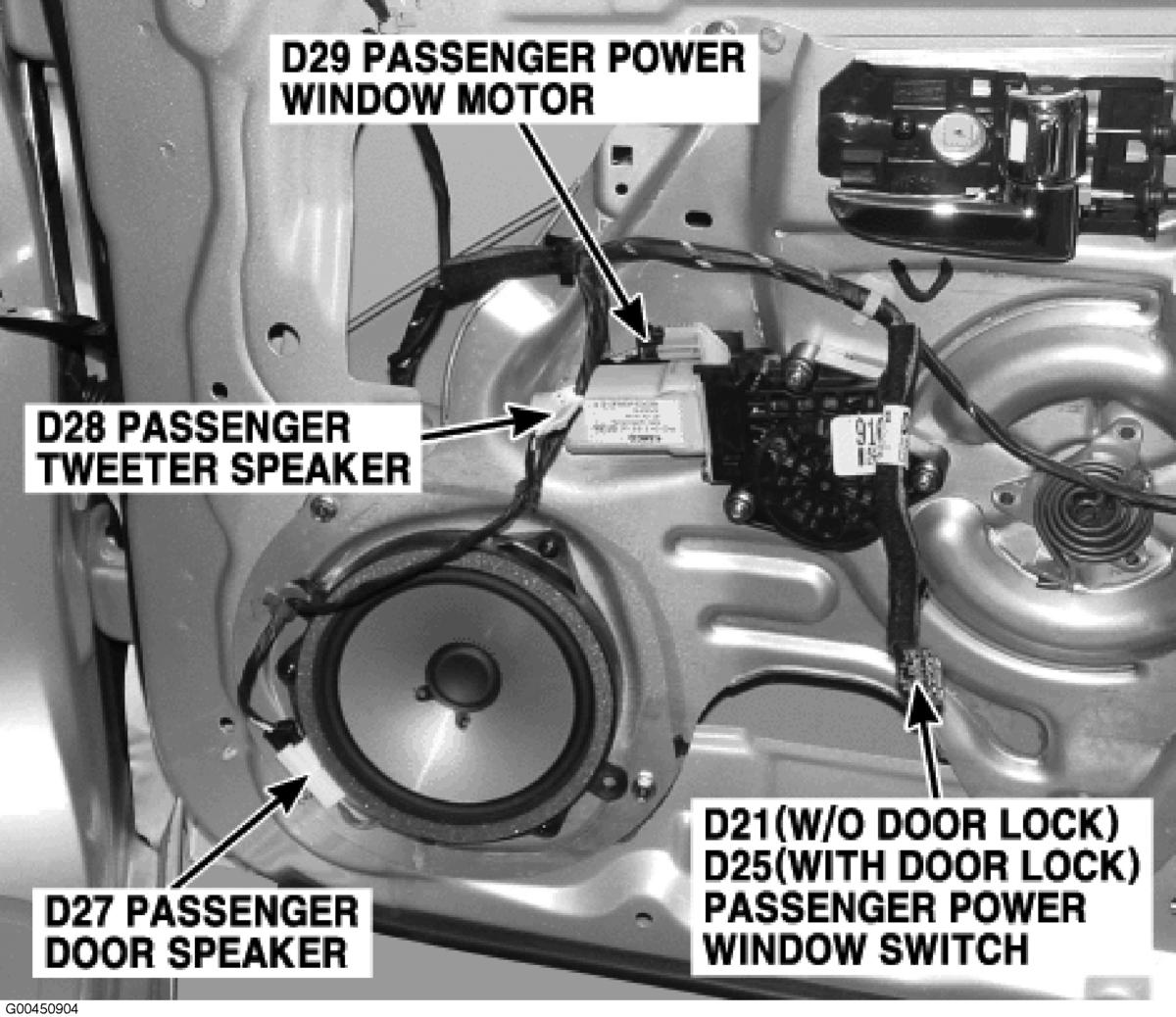

Fig 46: Right Front Door

G00450904

Courtesy of KIA MOTORS AMERICA, INC.

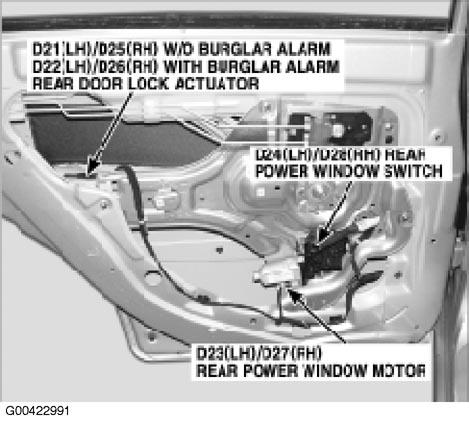

Fig 47: Rear Doors (Left Shown)

G00422991

Courtesy of KIA MOTORS AMERICA, INC.

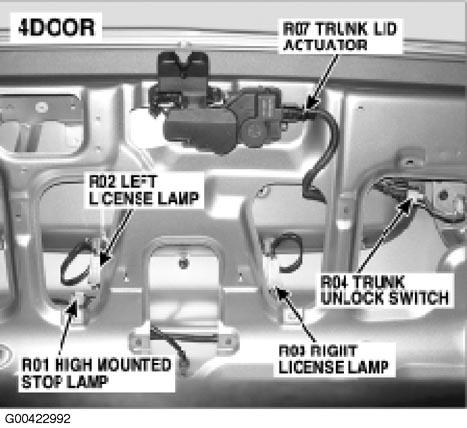

Fig 48: Rear Of Trunk (4 Door)

G00422992

Courtesy of KIA MOTORS AMERICA, INC.

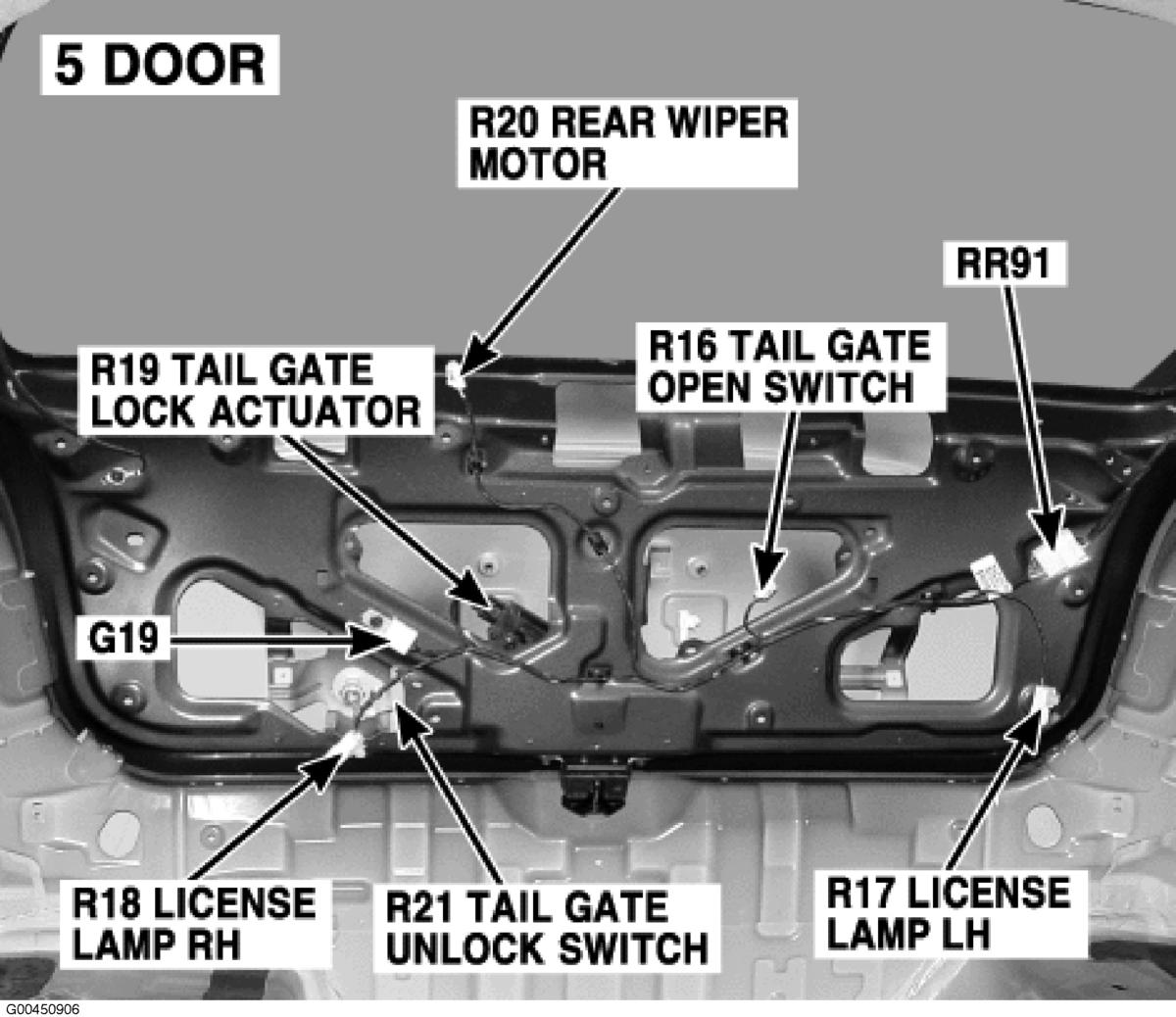

Fig 49: Tailgate (5 Door)

G00450906

Courtesy of KIA MOTORS AMERICA, INC.

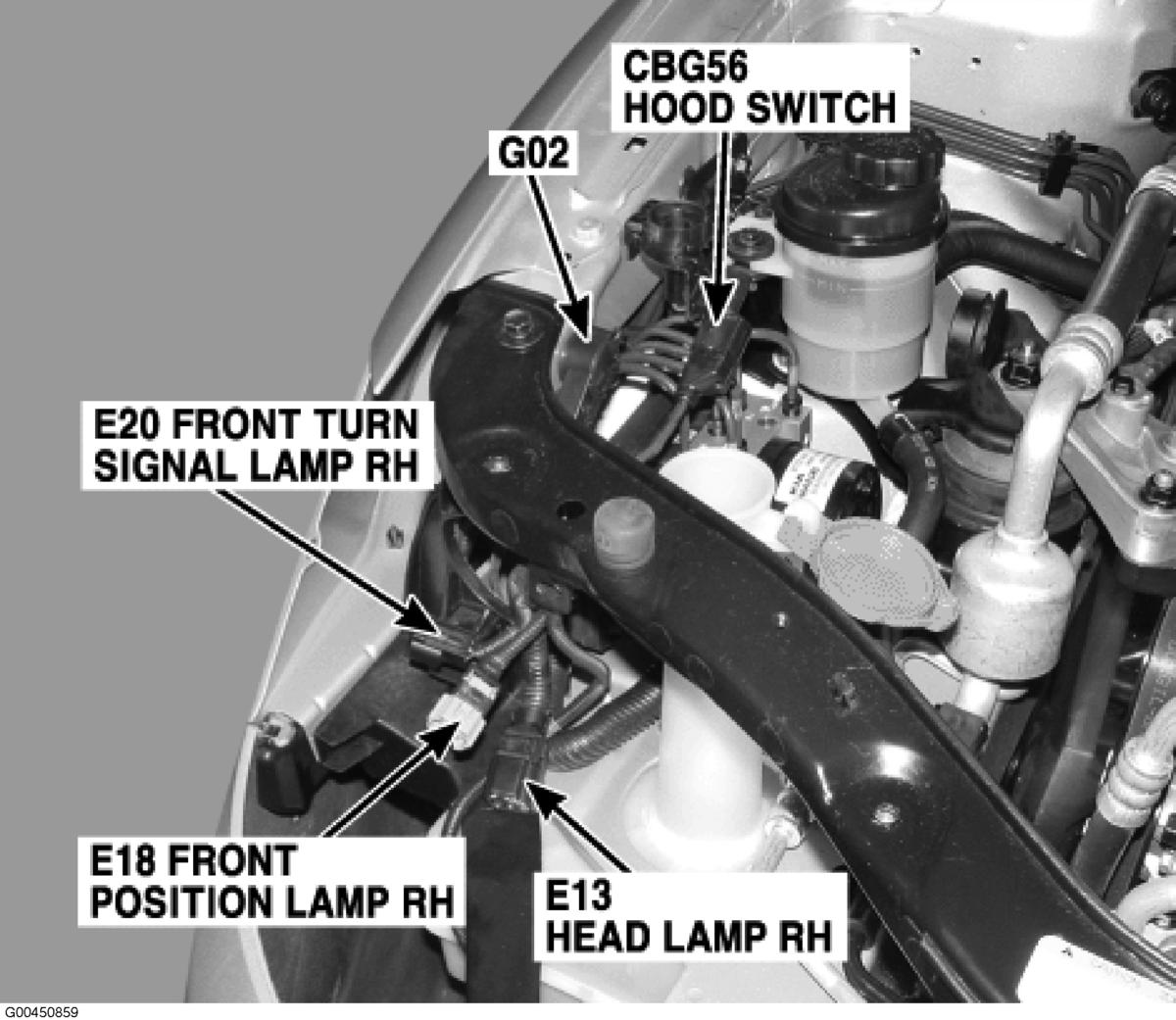

Fig 50: Right Front Of Engine Compartment

G00450859

Courtesy of KIA MOTORS AMERICA, INC.

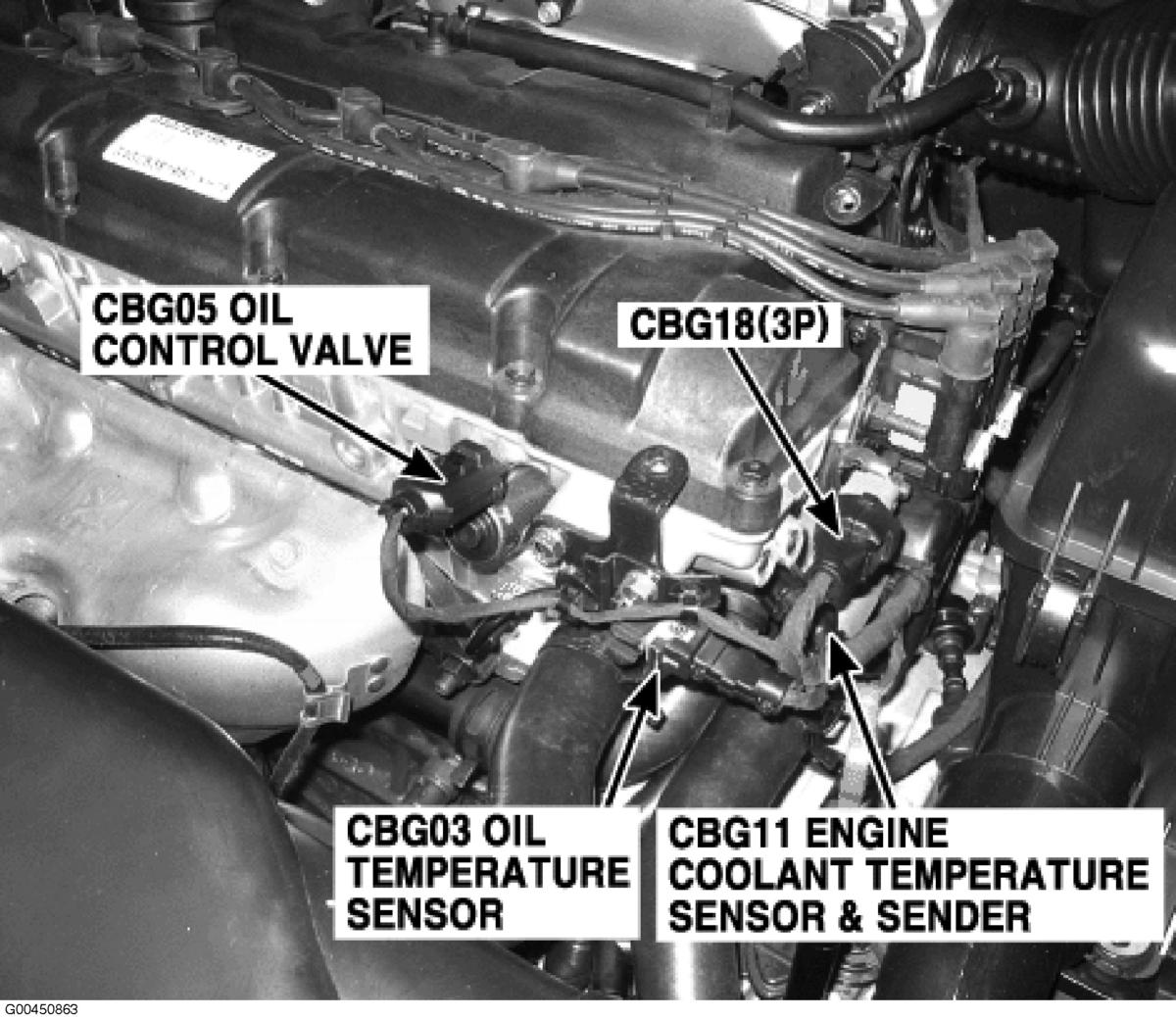

Fig 51: Rear Of Engine

G00450863

Courtesy of KIA MOTORS AMERICA, INC.

Fig 52: Rear Of Engine

G00450866

Courtesy of KIA MOTORS AMERICA, INC.

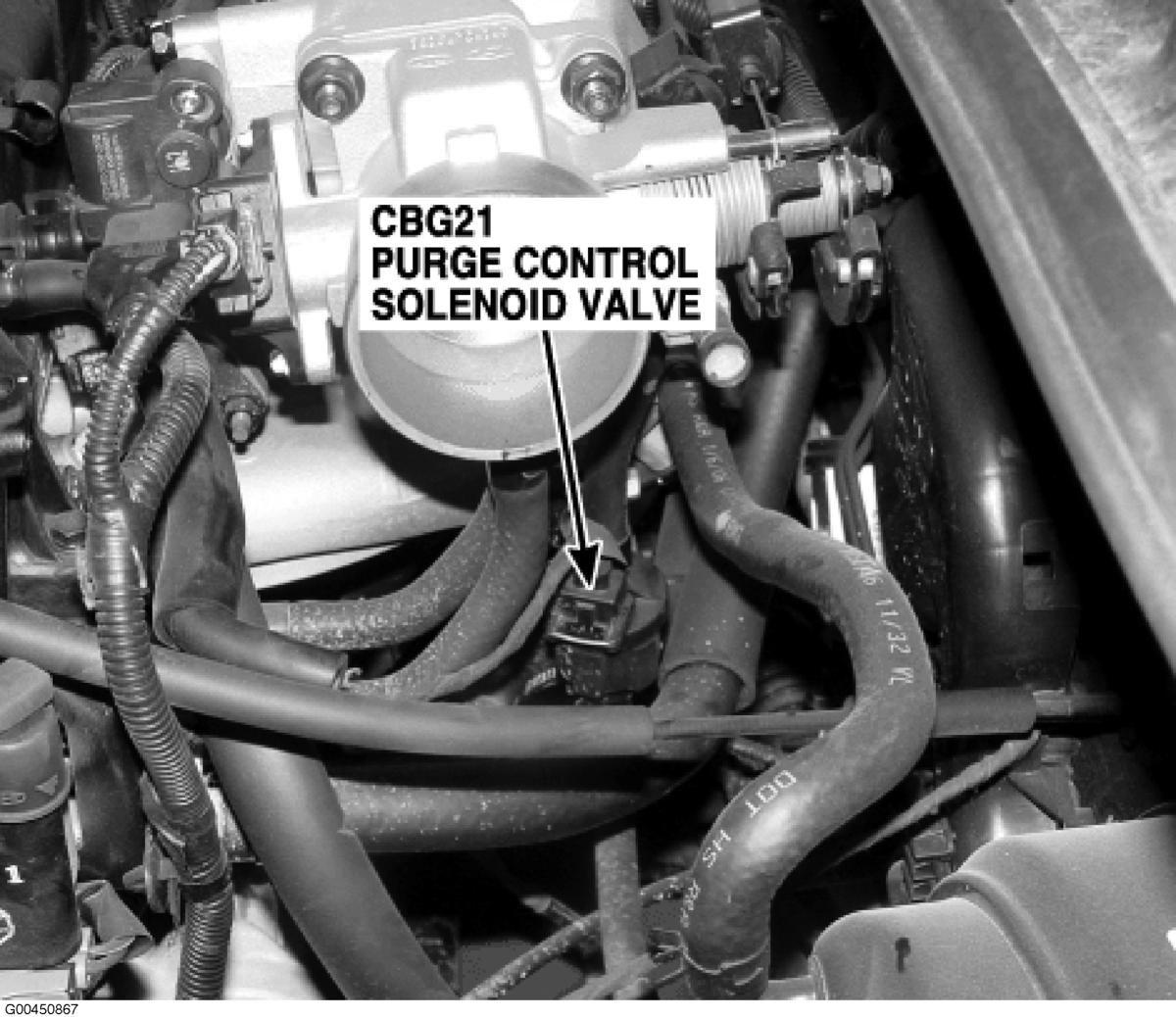

Fig 53: Rear Of Engine

G00450867

Courtesy of KIA MOTORS AMERICA, INC.

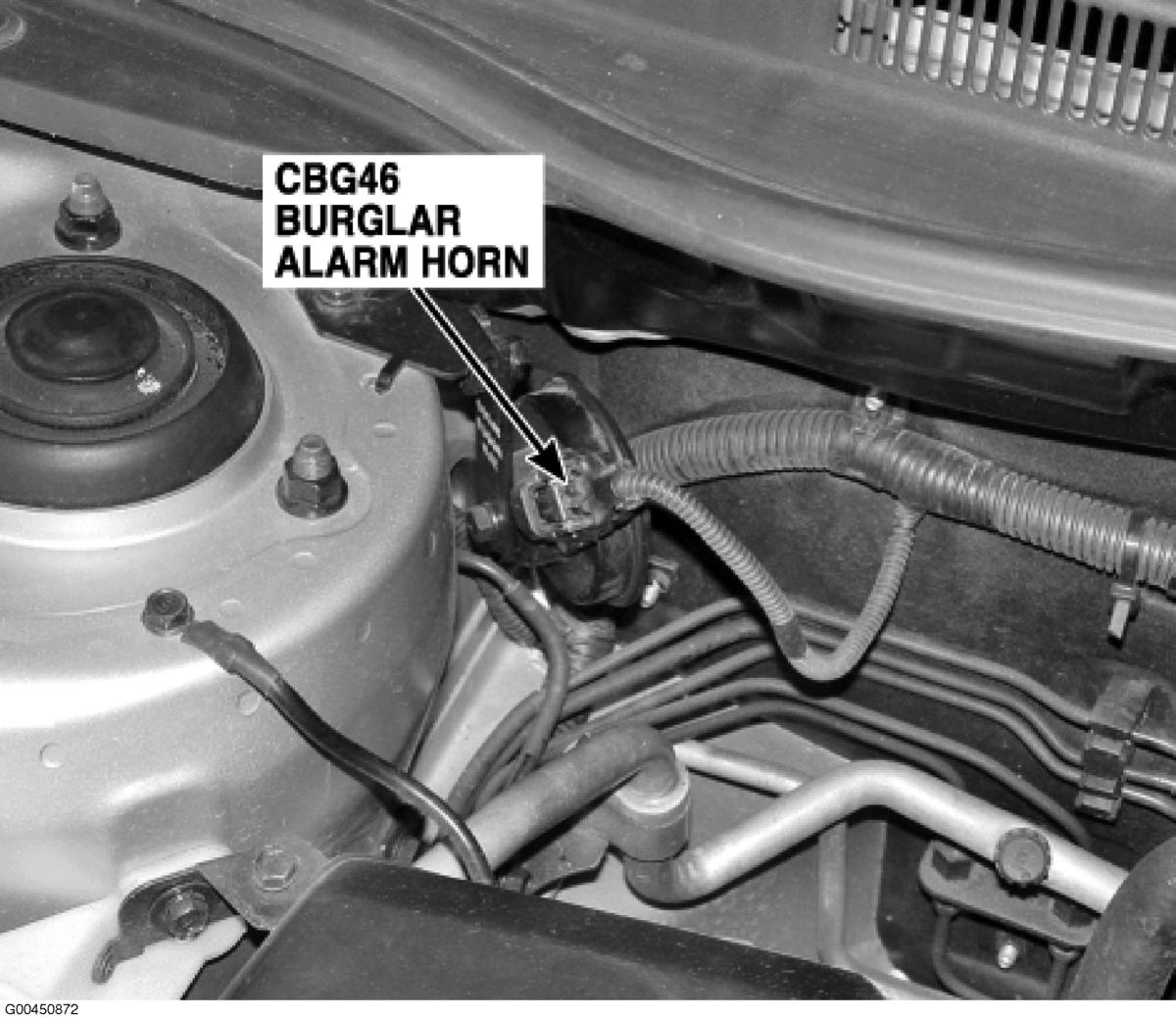

Fig 54: Right Rear Of Engine Compartment

G00450872

Courtesy of KIA MOTORS AMERICA, INC.

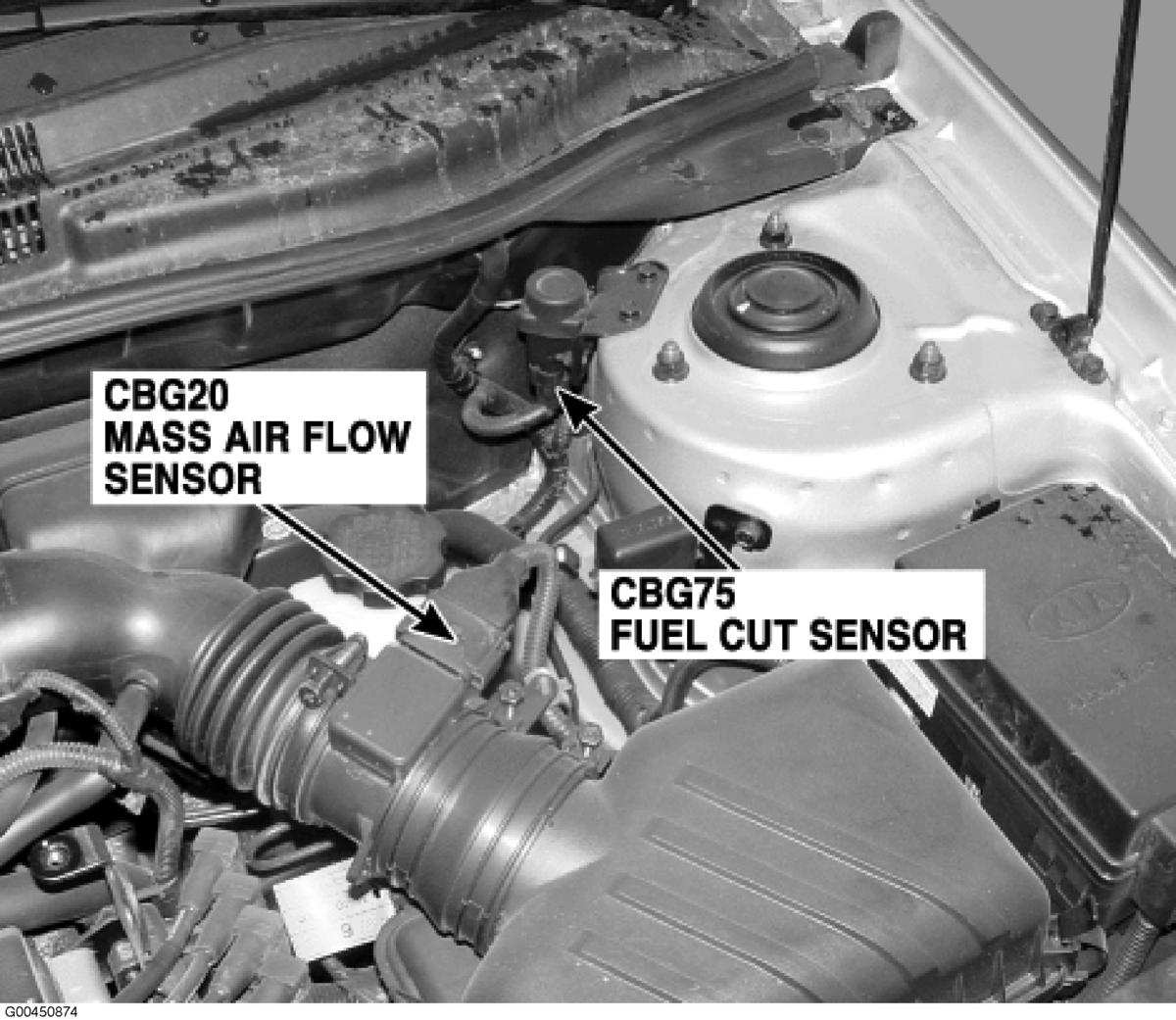

Fig 55: Left Rear Of Engine Compartment

G00450874

Courtesy of KIA MOTORS AMERICA, INC.

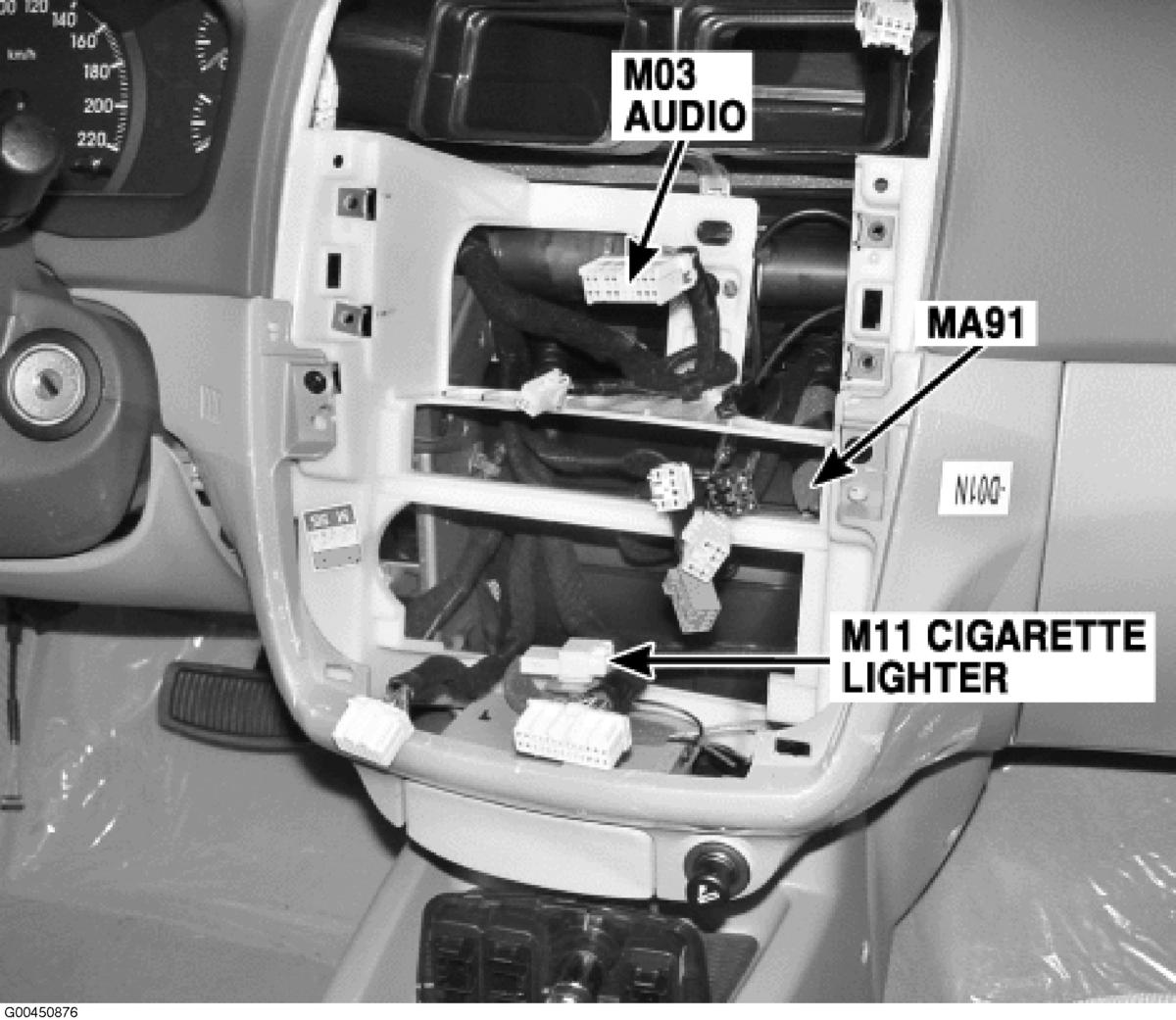

Fig 56: Center Of Dash

G00450876

Courtesy of KIA MOTORS AMERICA, INC.

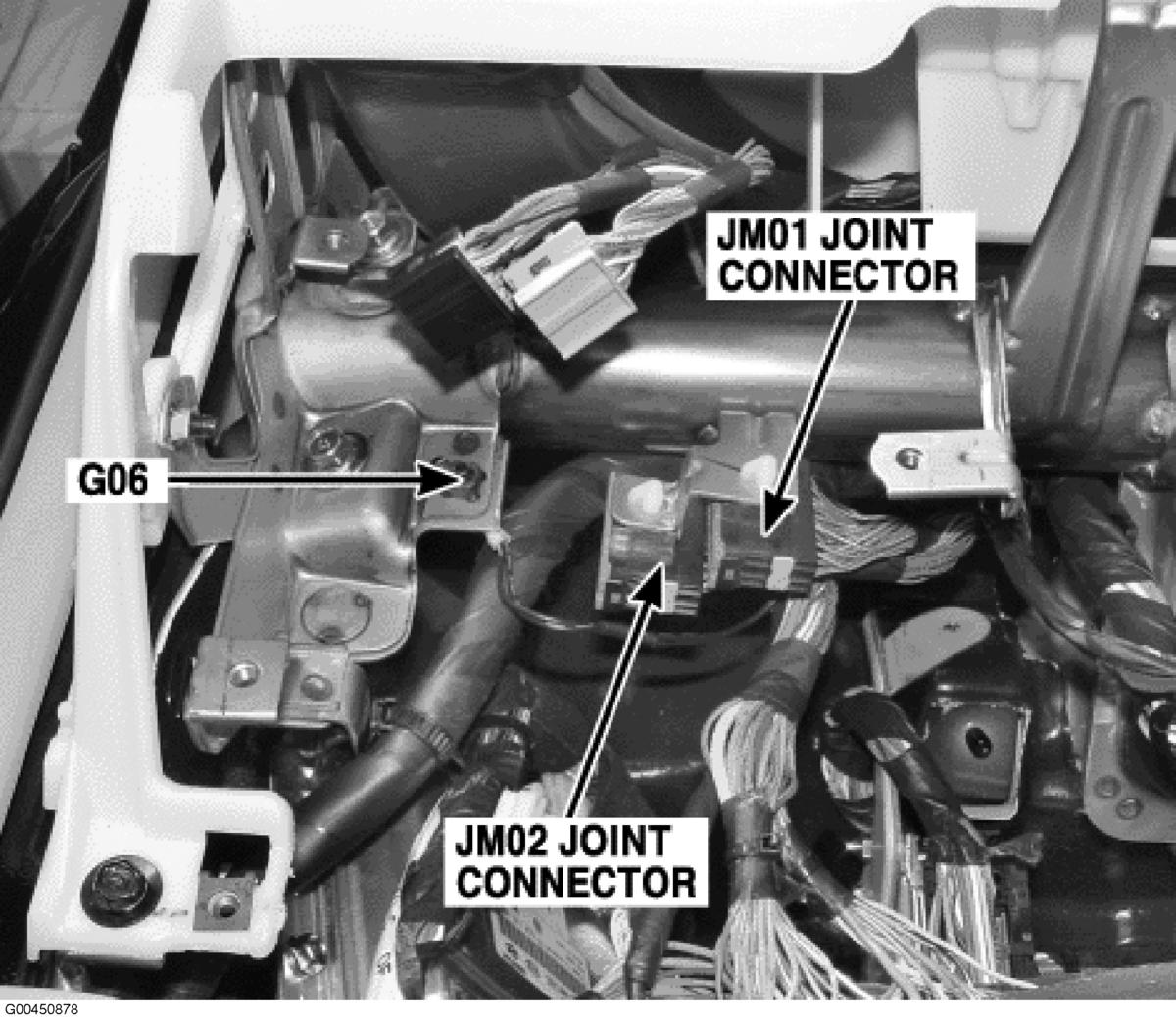

Fig 57: Lower Center Of Dash

G00450878

Courtesy of KIA MOTORS AMERICA, INC.

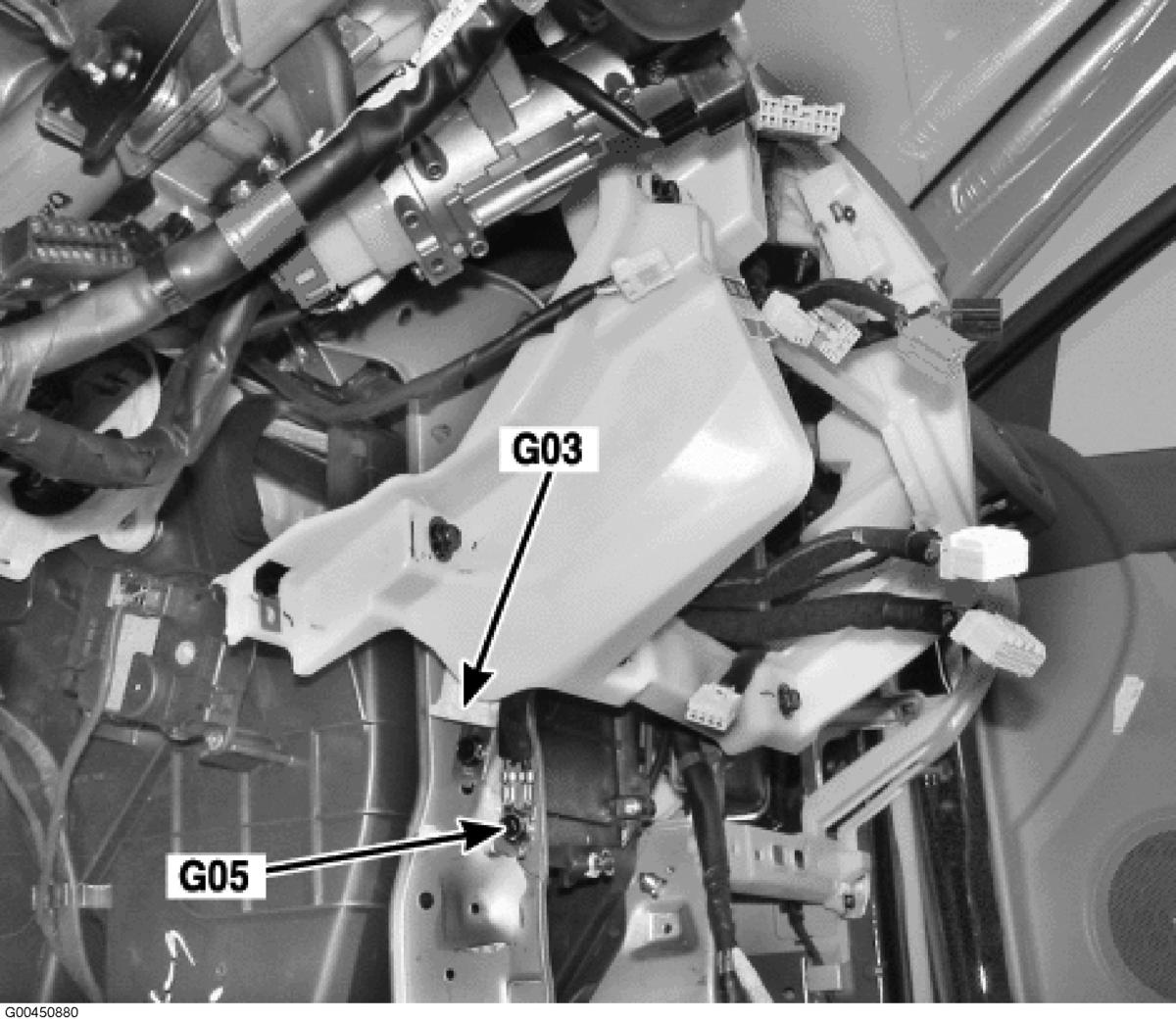

Fig 58: Center Of Dash

G00450880

Courtesy of KIA MOTORS AMERICA, INC.

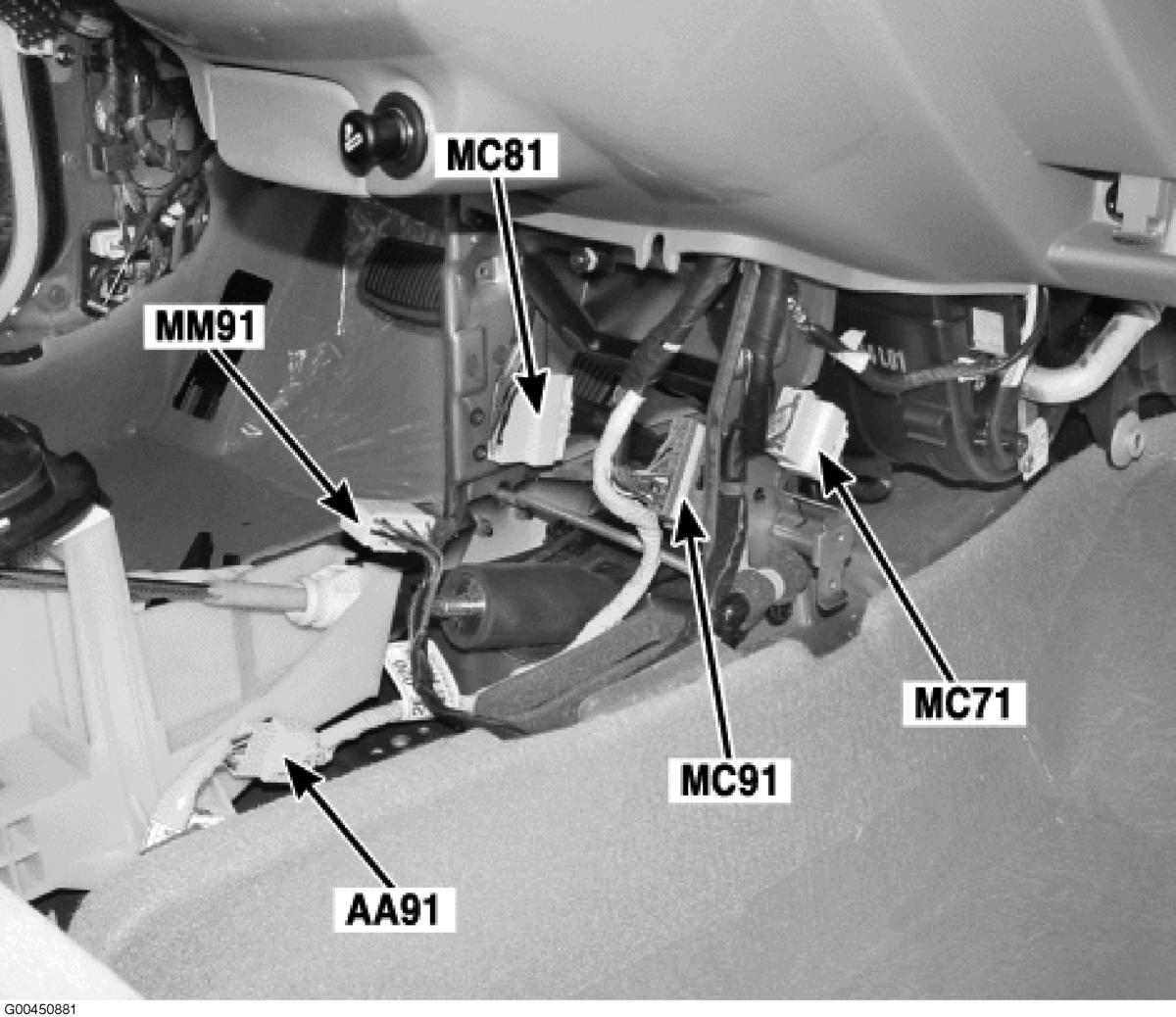

Fig 59: Center Console

G00450881

Courtesy of KIA MOTORS AMERICA, INC.

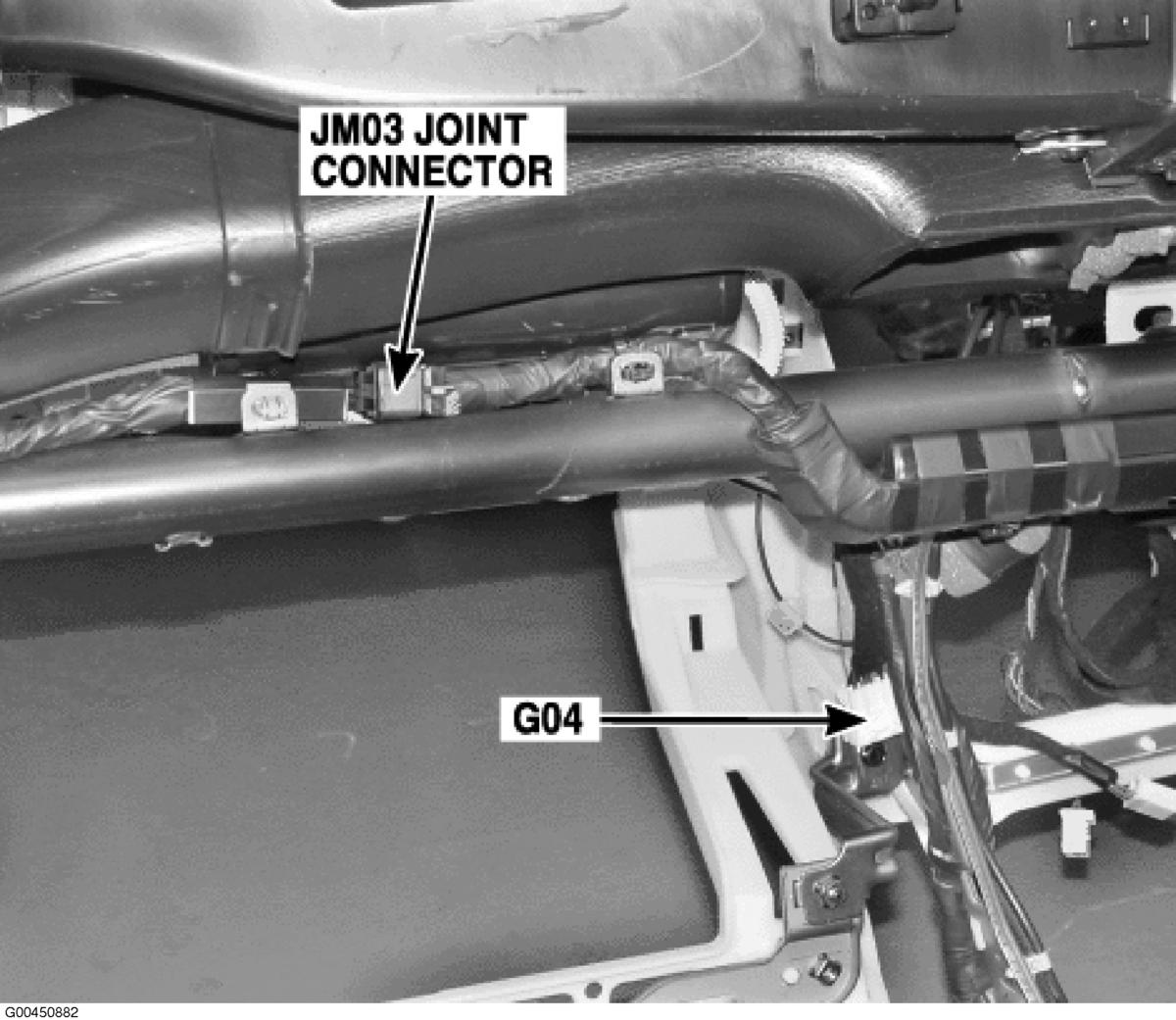

Fig 60: Center Of Dash

G00450882

Courtesy of KIA MOTORS AMERICA, INC.

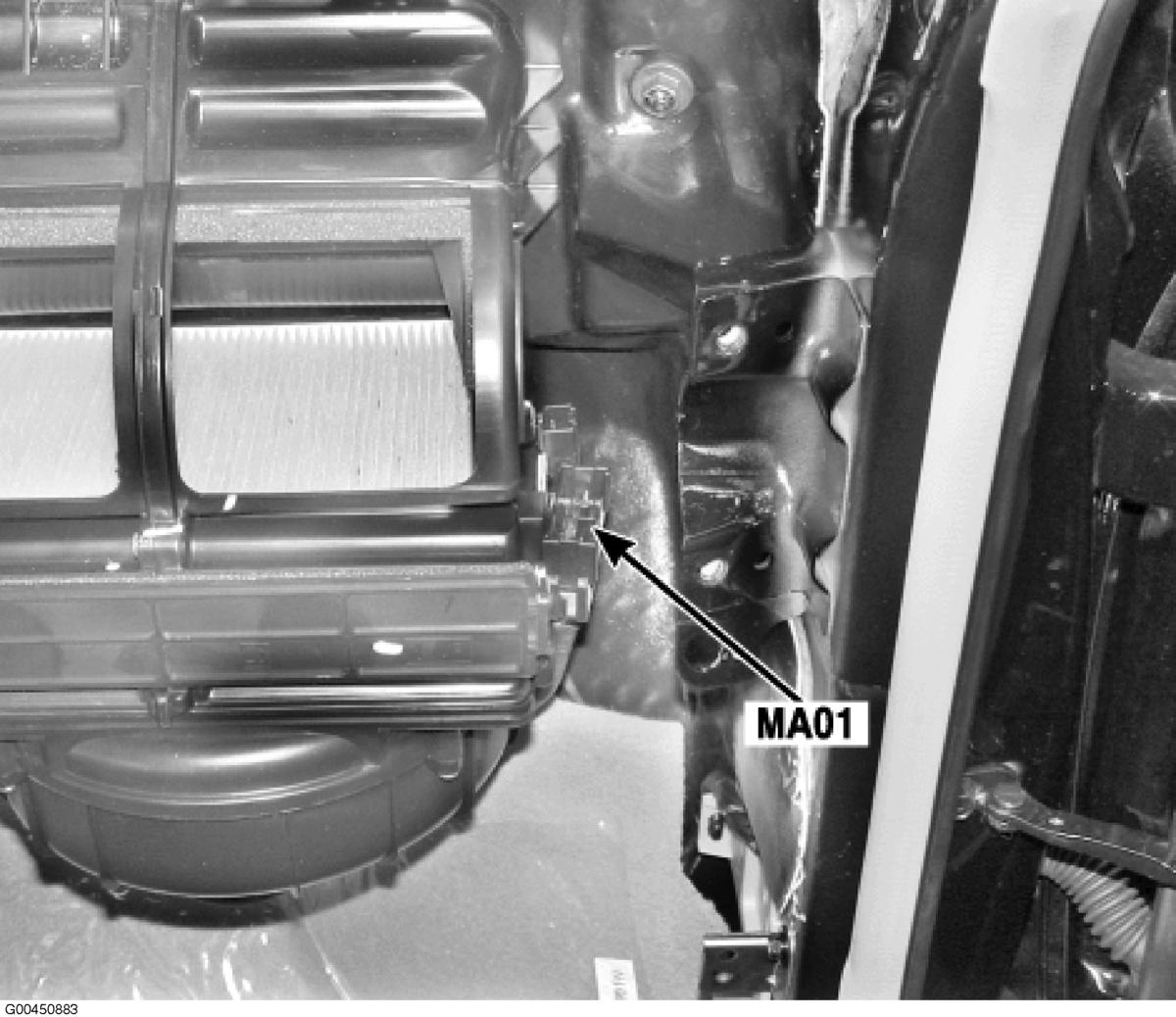

Fig 61: Right Side Of Dash

G00450883

Courtesy of KIA MOTORS AMERICA, INC.

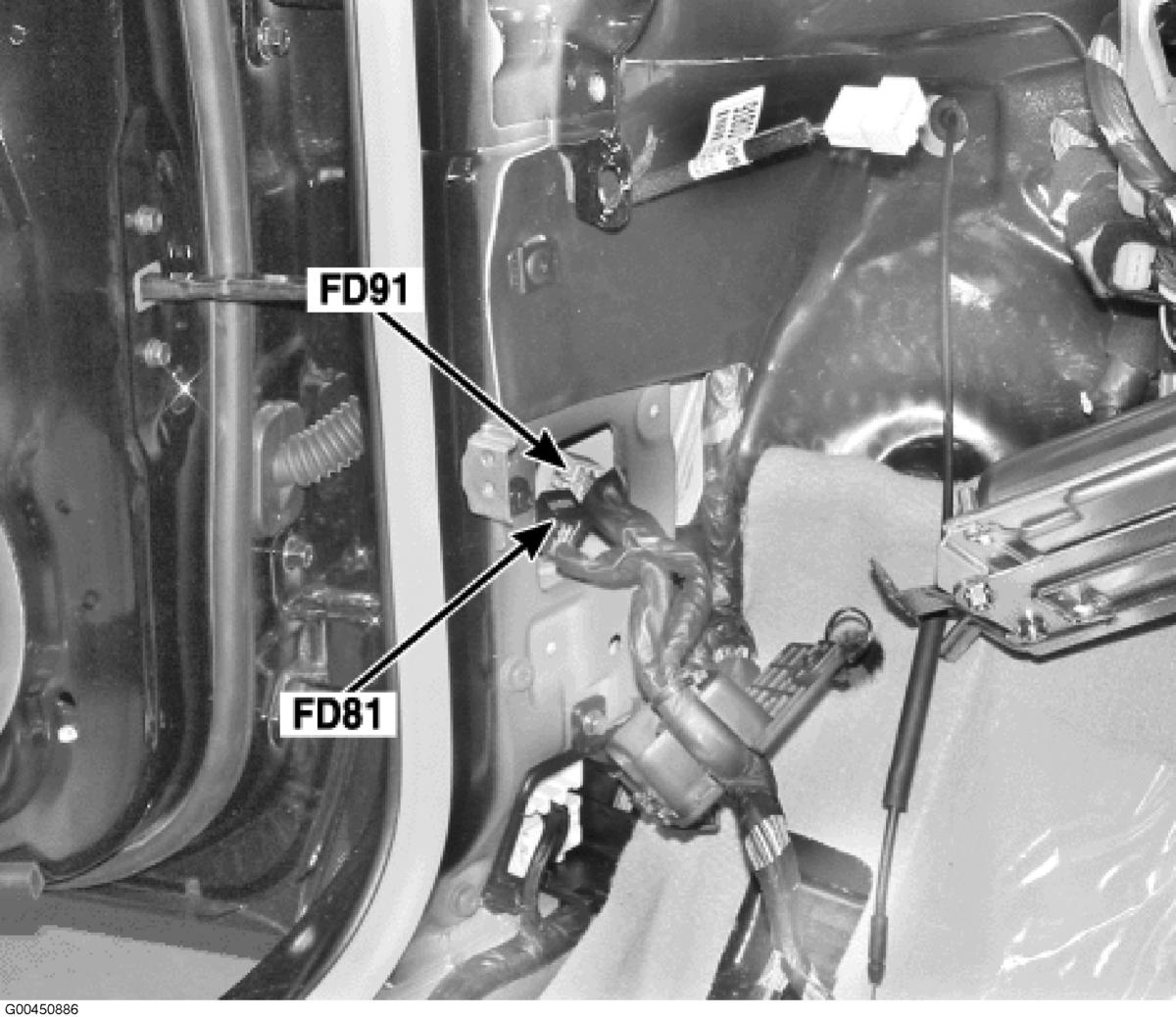

Fig 62: Left Kick Panel

G00450886

Courtesy of KIA MOTORS AMERICA, INC.

Fig 63: Left Side Of Dash

G00450887

Courtesy of KIA MOTORS AMERICA, INC.

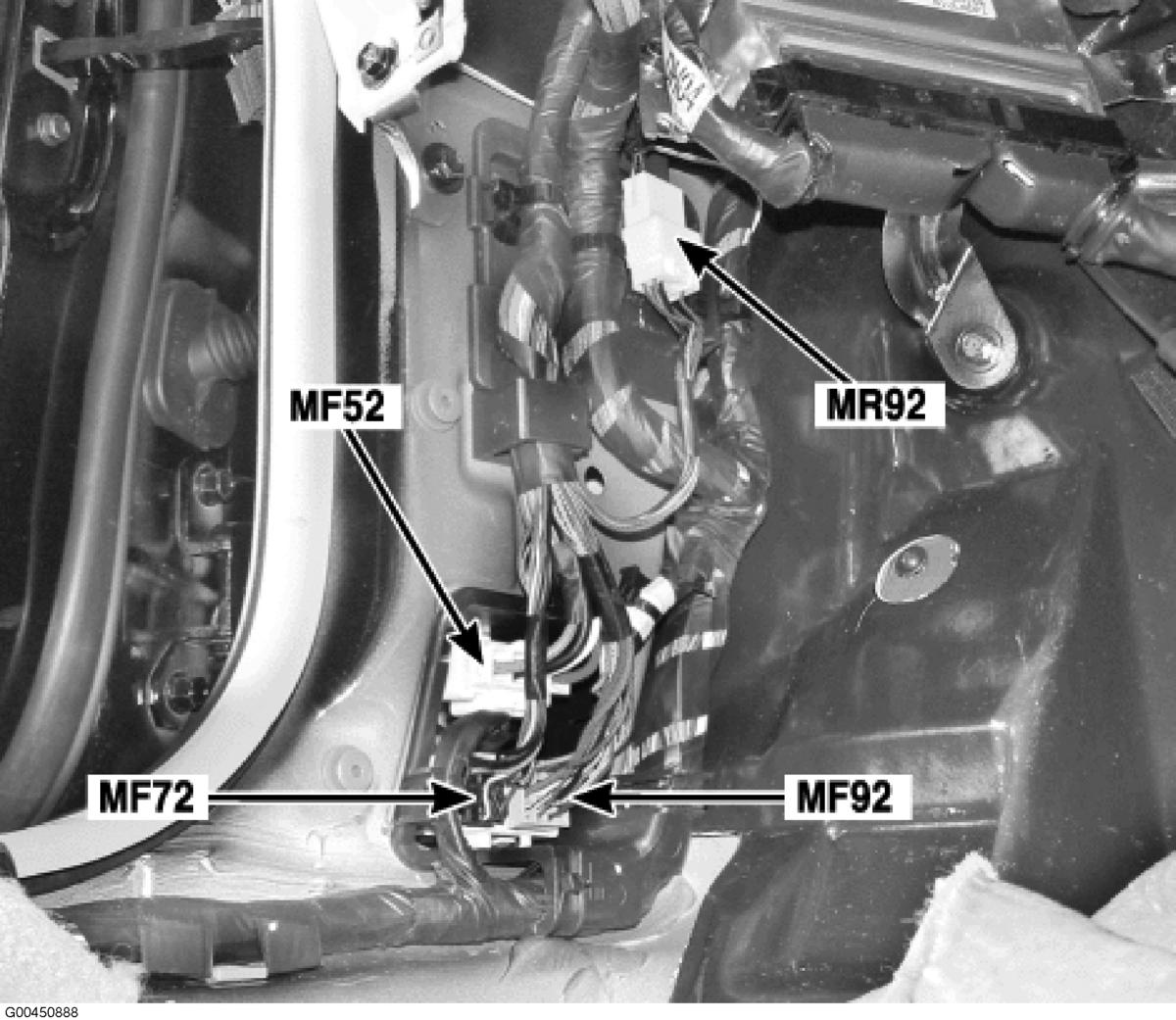

Fig 64: Left Kick Panel

G00450888

Courtesy of KIA MOTORS AMERICA, INC.

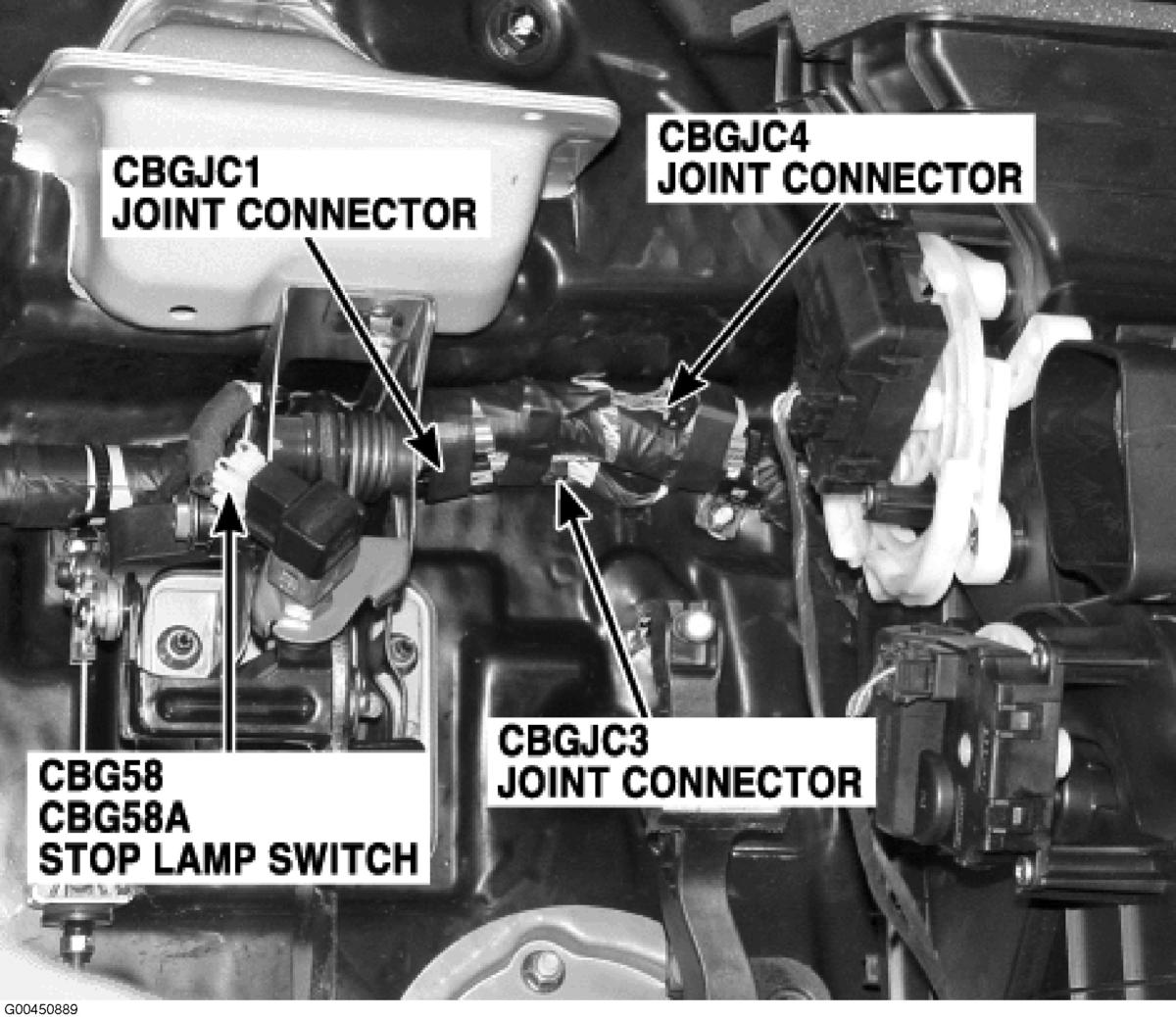

Fig 65: Under Left Side Of Dash

G00450889

Courtesy of KIA MOTORS AMERICA, INC.

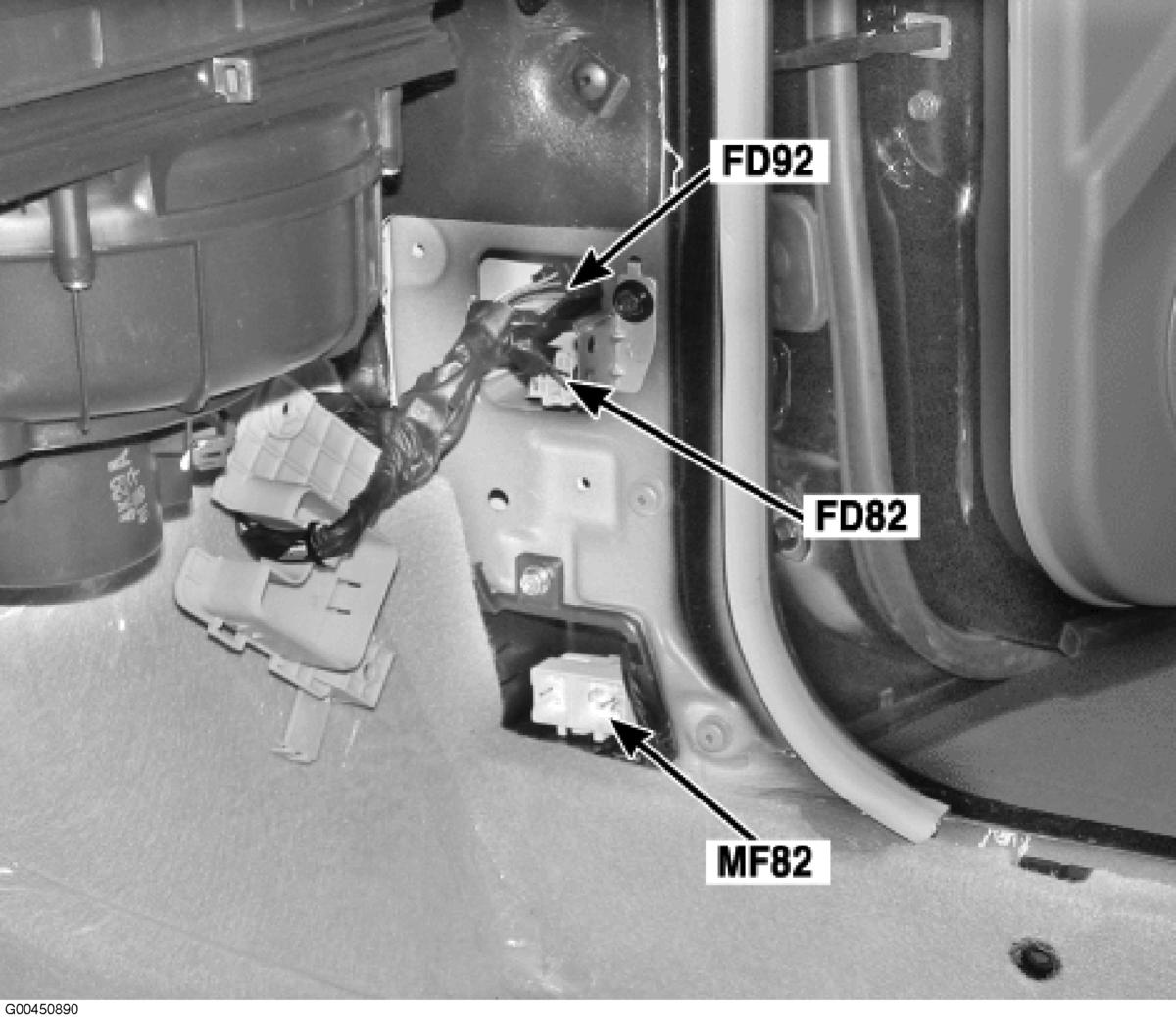

Fig 66: Right Kick Panel

G00450890

Courtesy of KIA MOTORS AMERICA, INC.

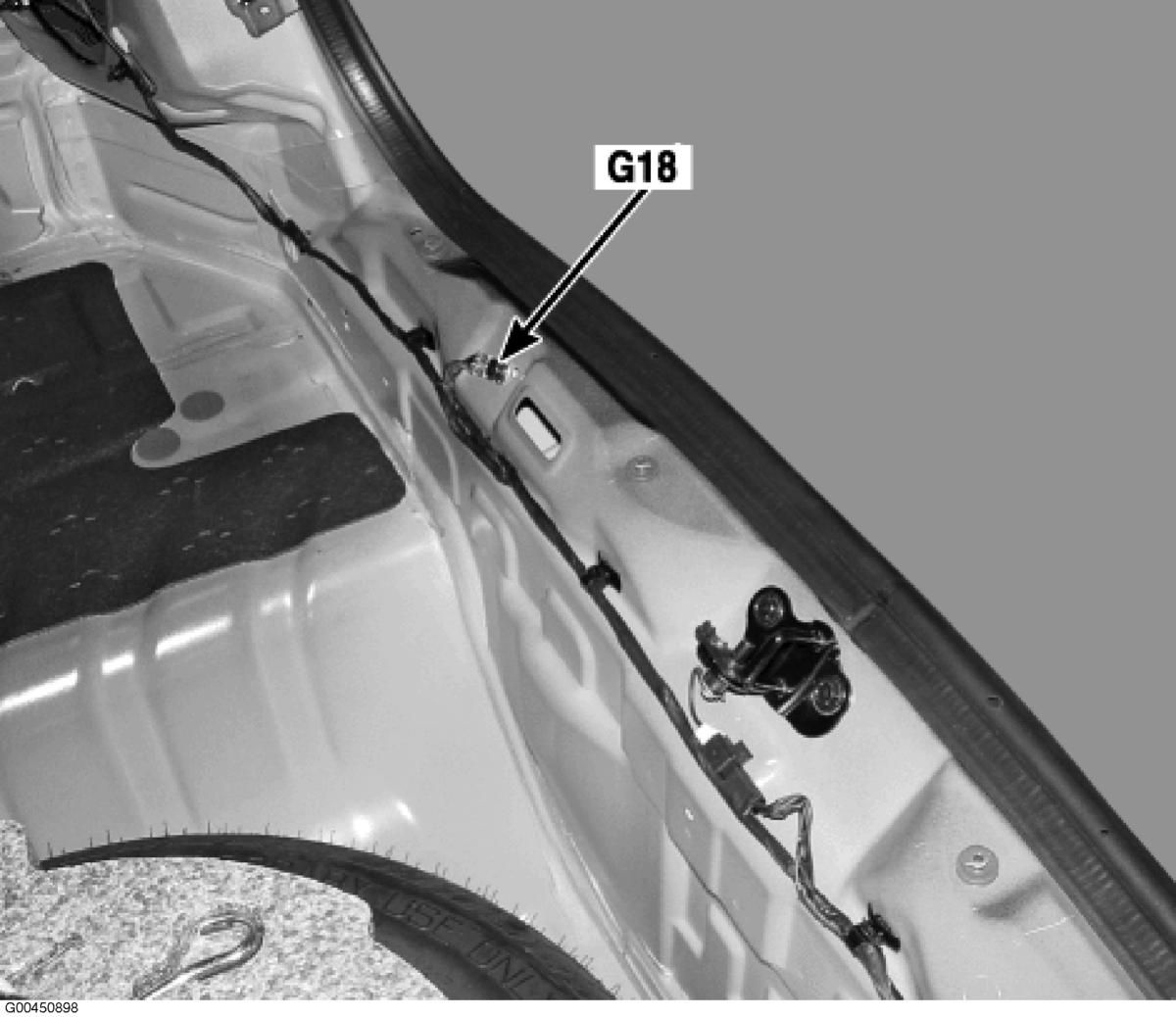

Fig 67: Luggage Compartment

G00450898

Courtesy of KIA MOTORS AMERICA, INC.

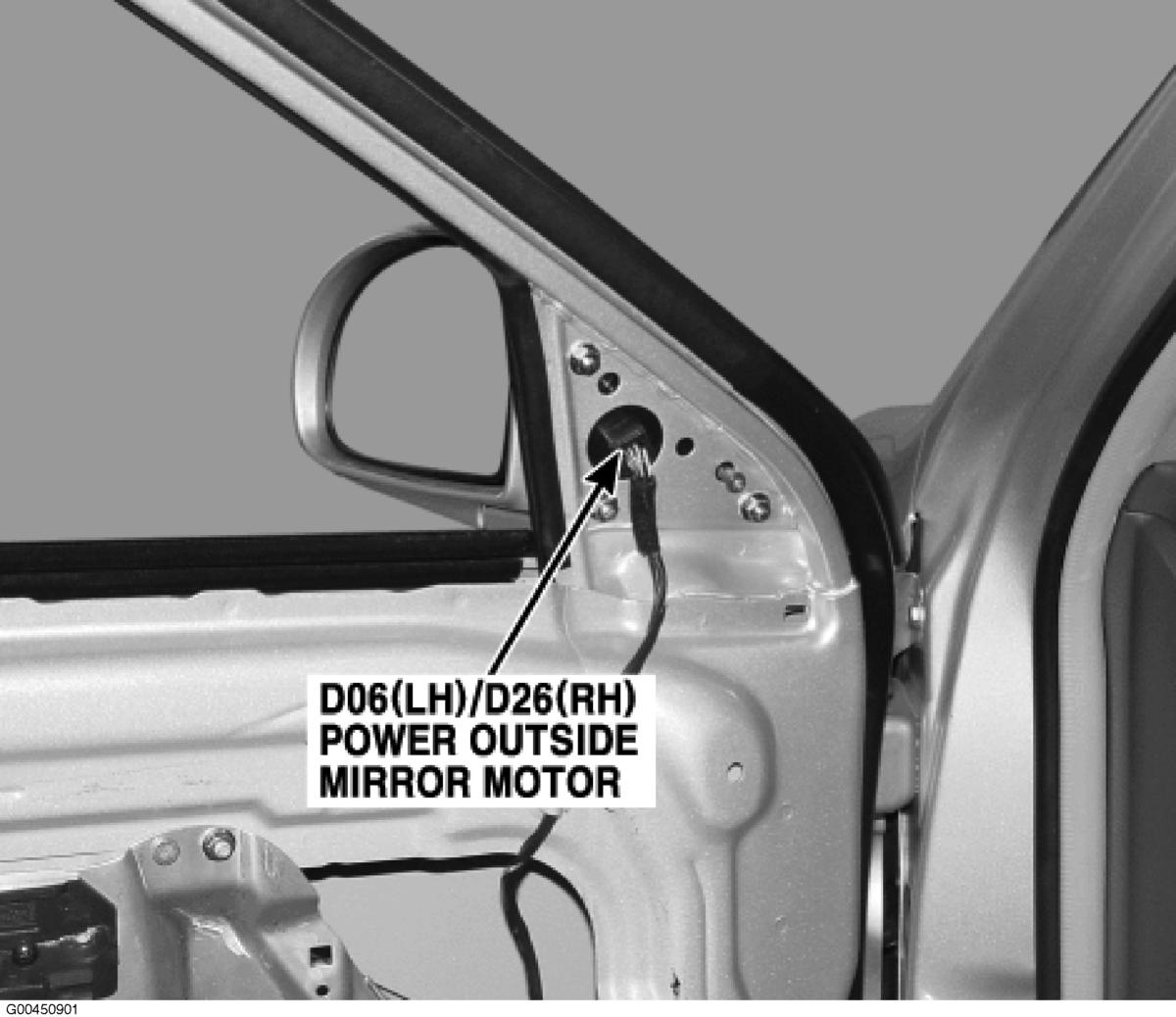

Fig 68: Front Doors

G00450901

Courtesy of KIA MOTORS AMERICA, INC.

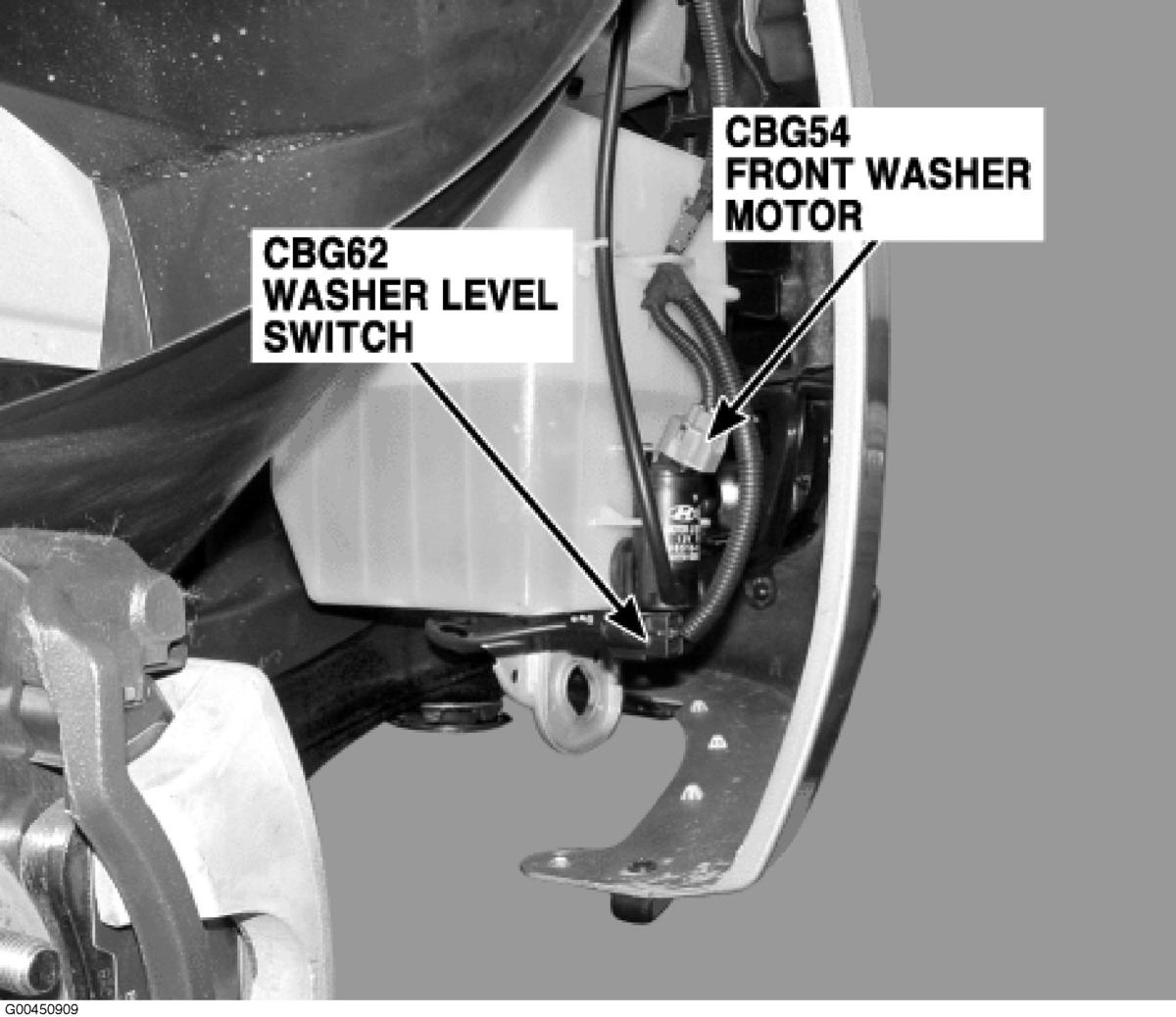

Fig 69: Right Front Of Engine Compartment

G00450909

Courtesy of KIA MOTORS AMERICA, INC.

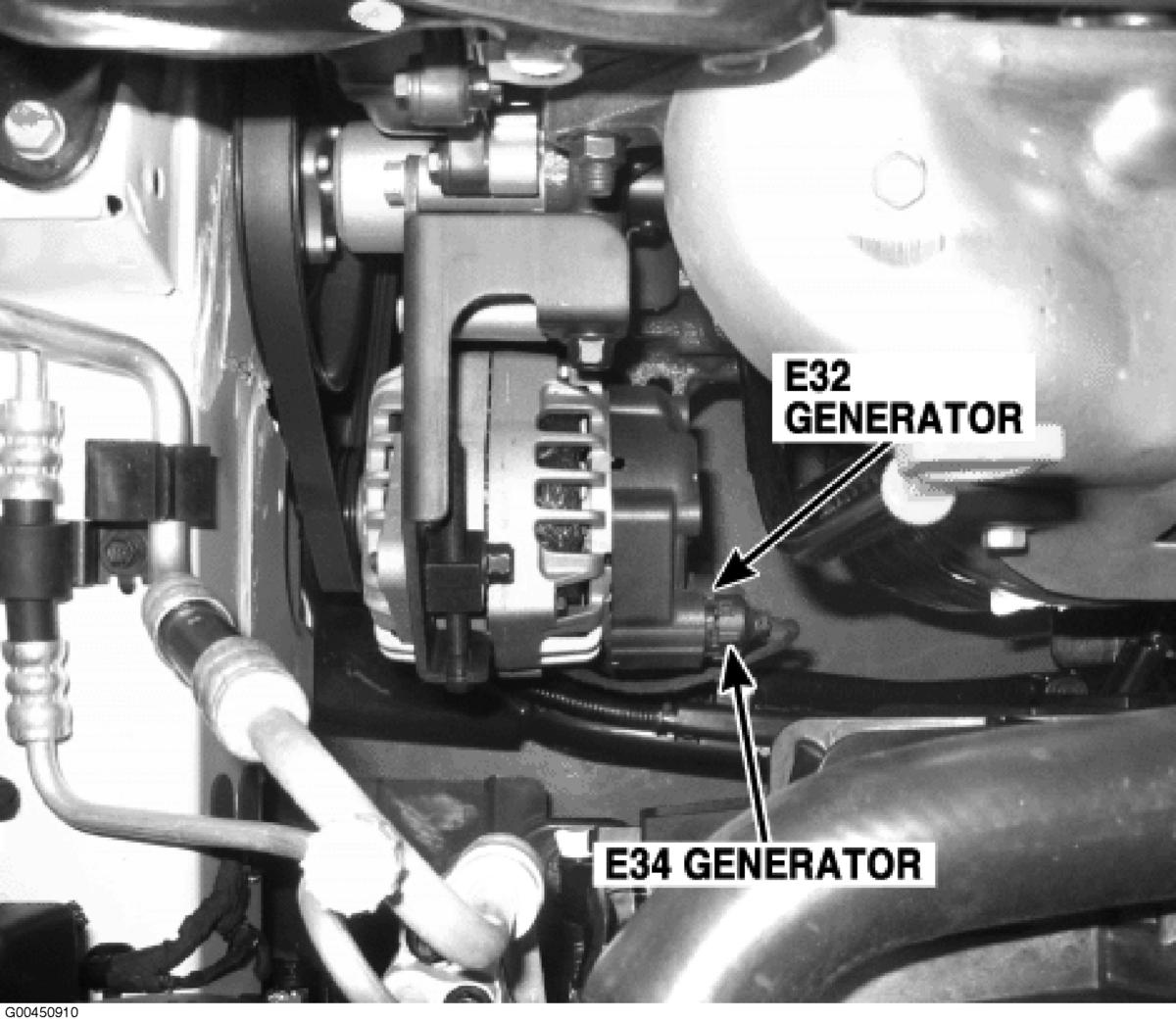

Fig 70: Lower Left Front Of Engine

G00450910

Courtesy of KIA MOTORS AMERICA, INC.

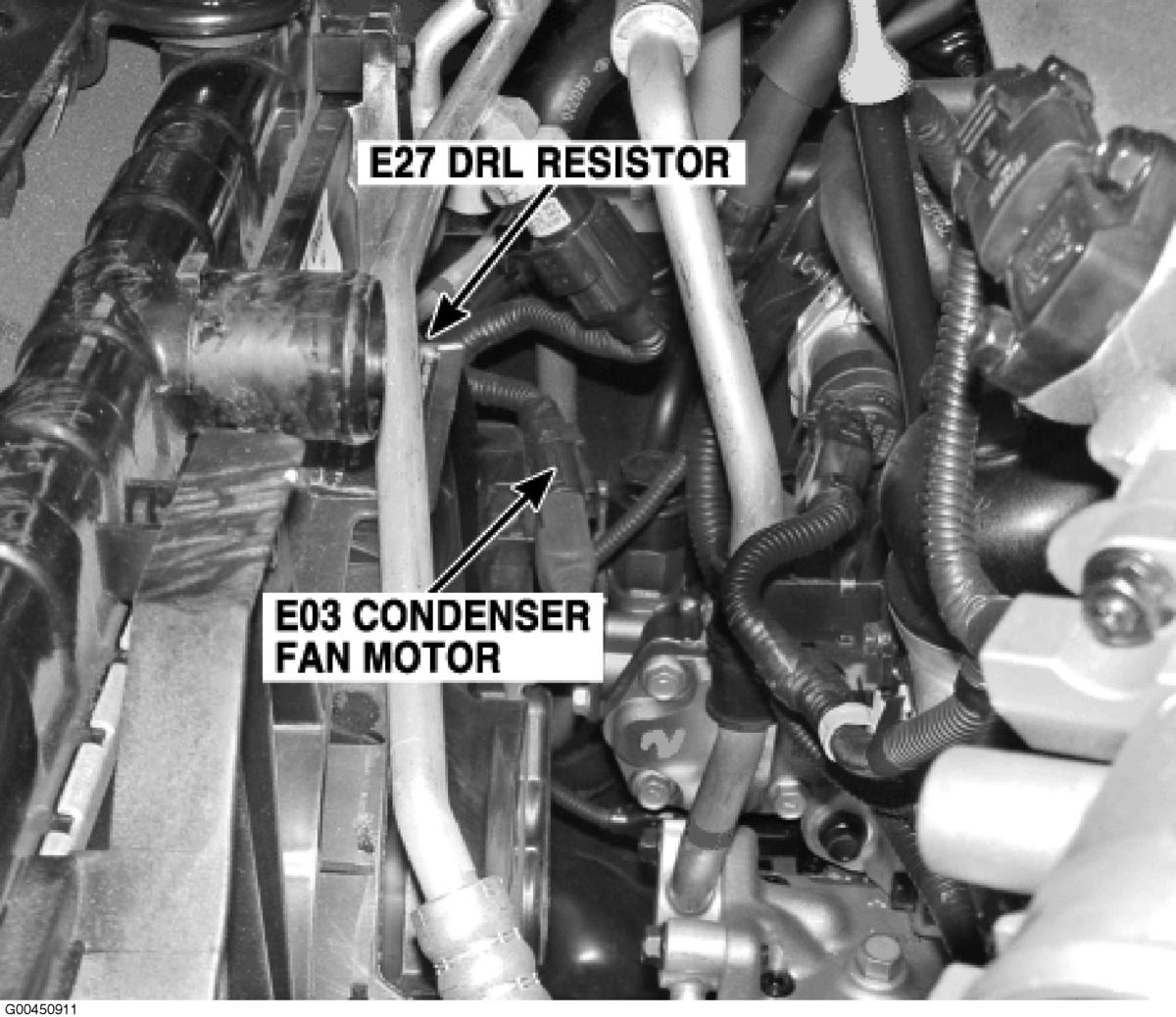

Fig 71: Front Of Engine Compartment

G00450911

Courtesy of KIA MOTORS AMERICA, INC.

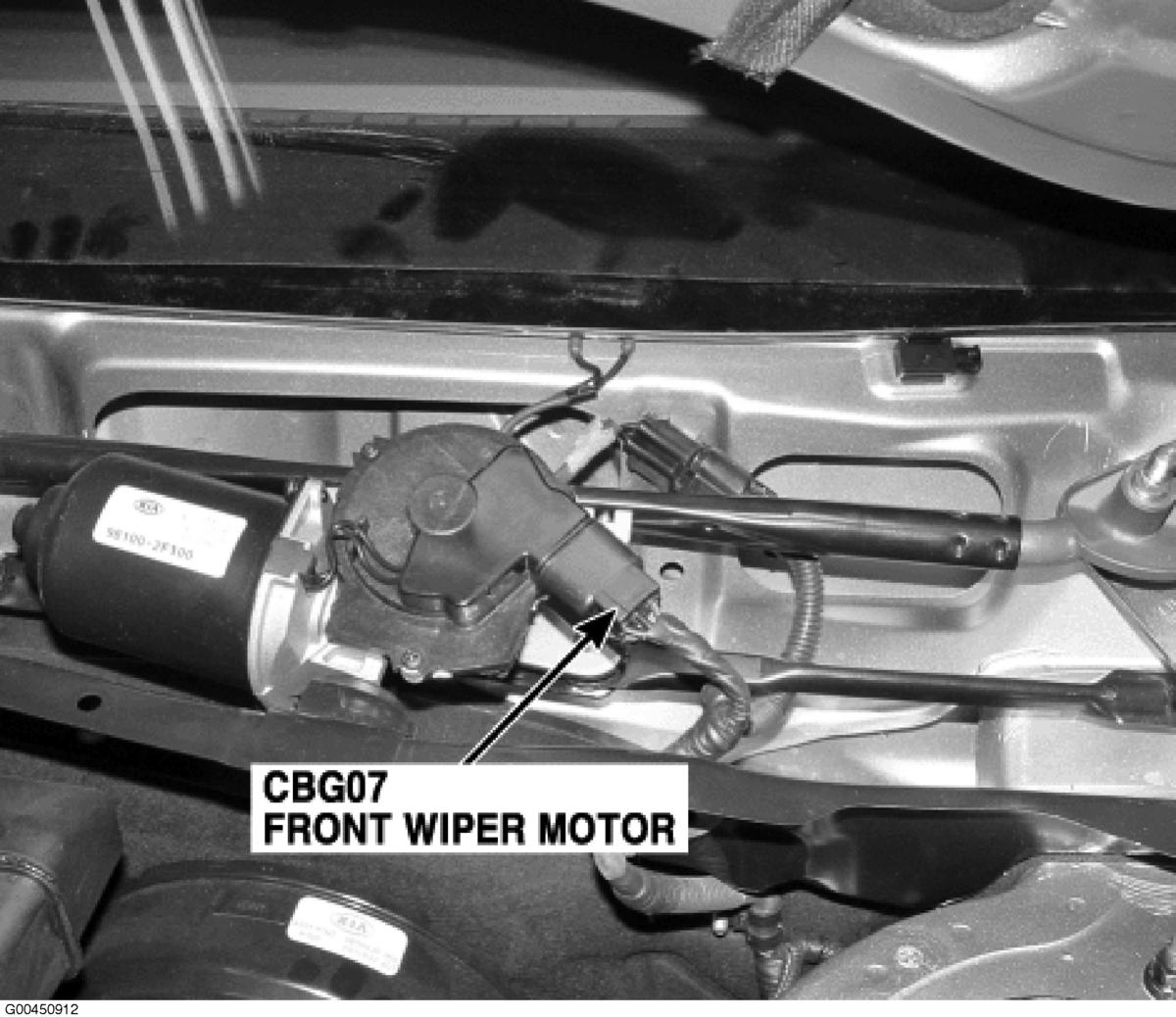

Fig 72: Rear Of Engine Compartment

G00450912

Courtesy of KIA MOTORS AMERICA, INC.
