Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

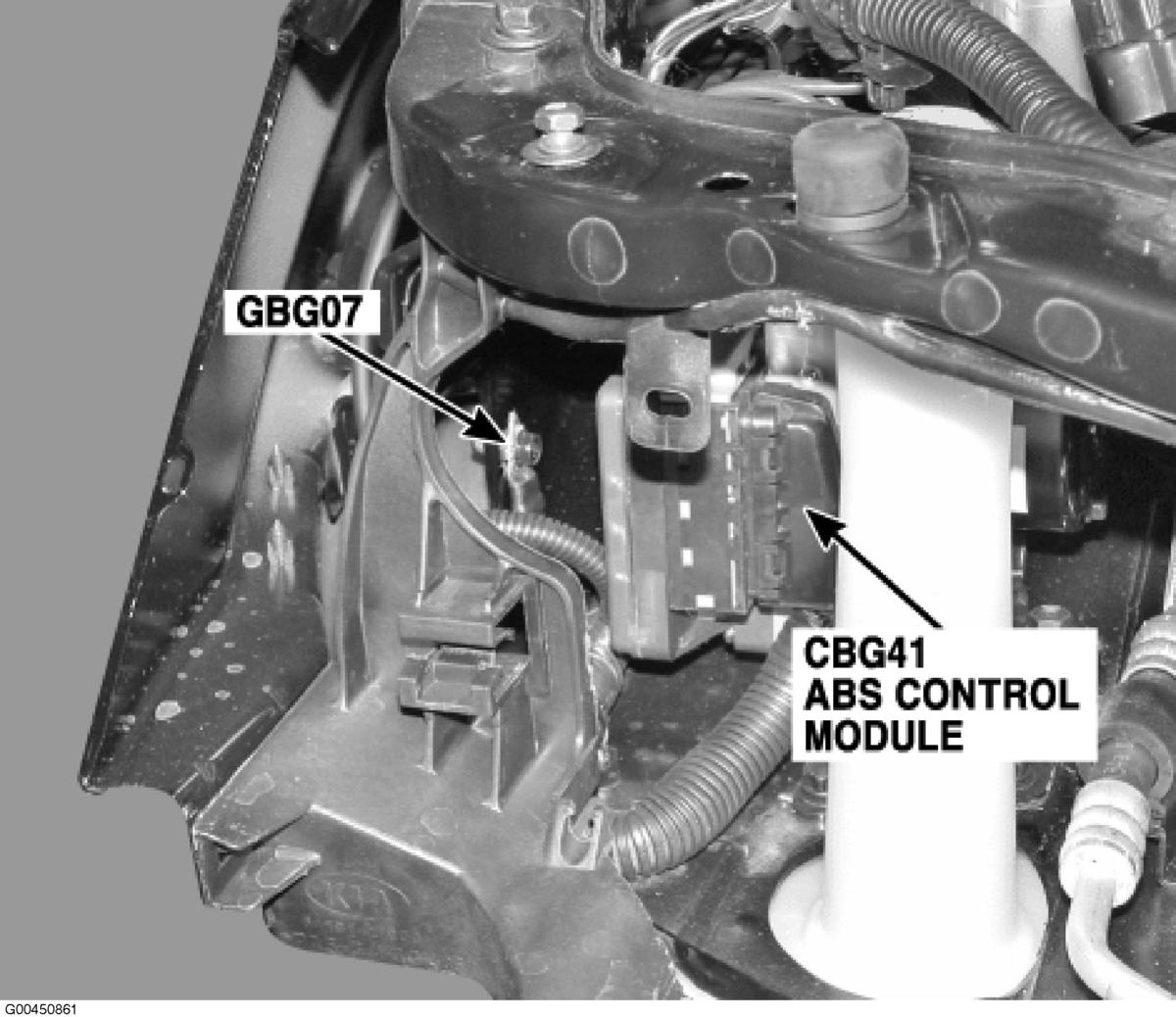

| ABS Control Module | At right front of engine compartment. See Figure. |

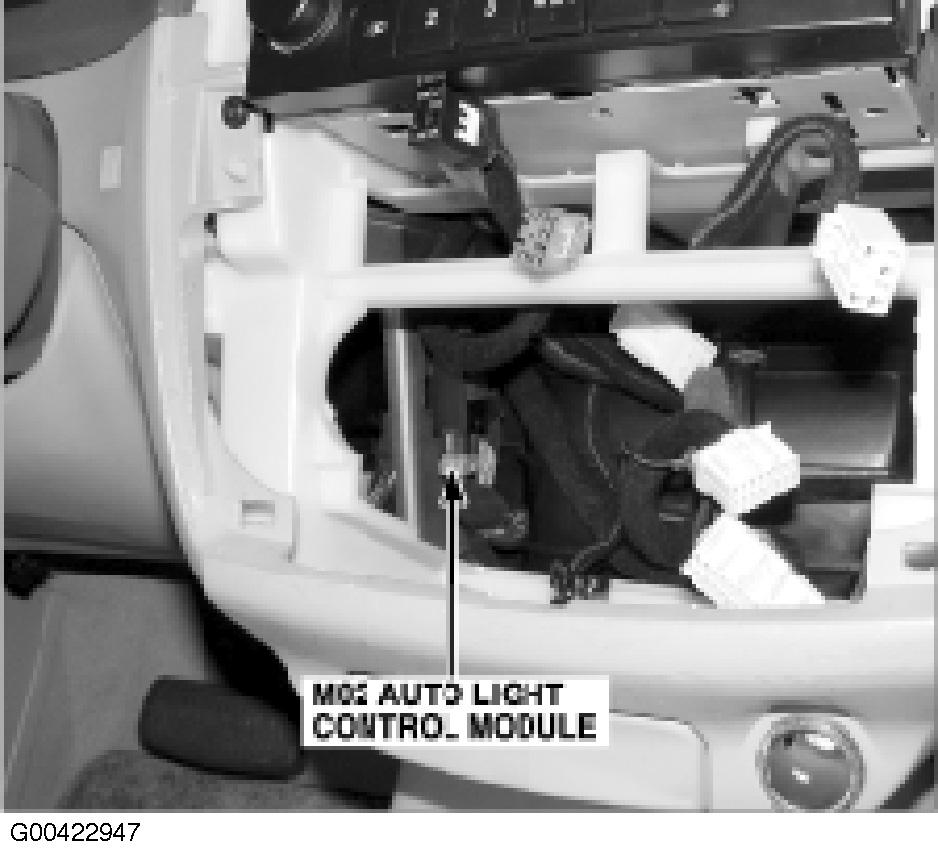

| Auto Light Control Module | Behind center of dash. See Figure. |

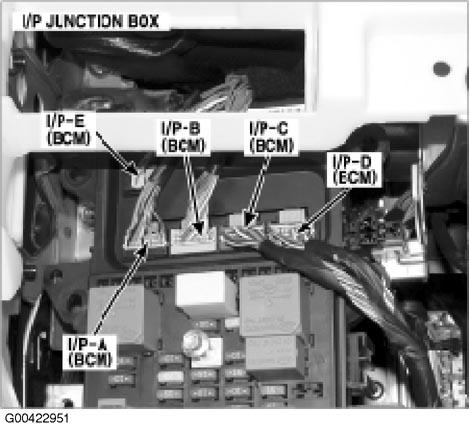

| BCM | Integral to instrument panel (I/P) junction box. See Figure. |

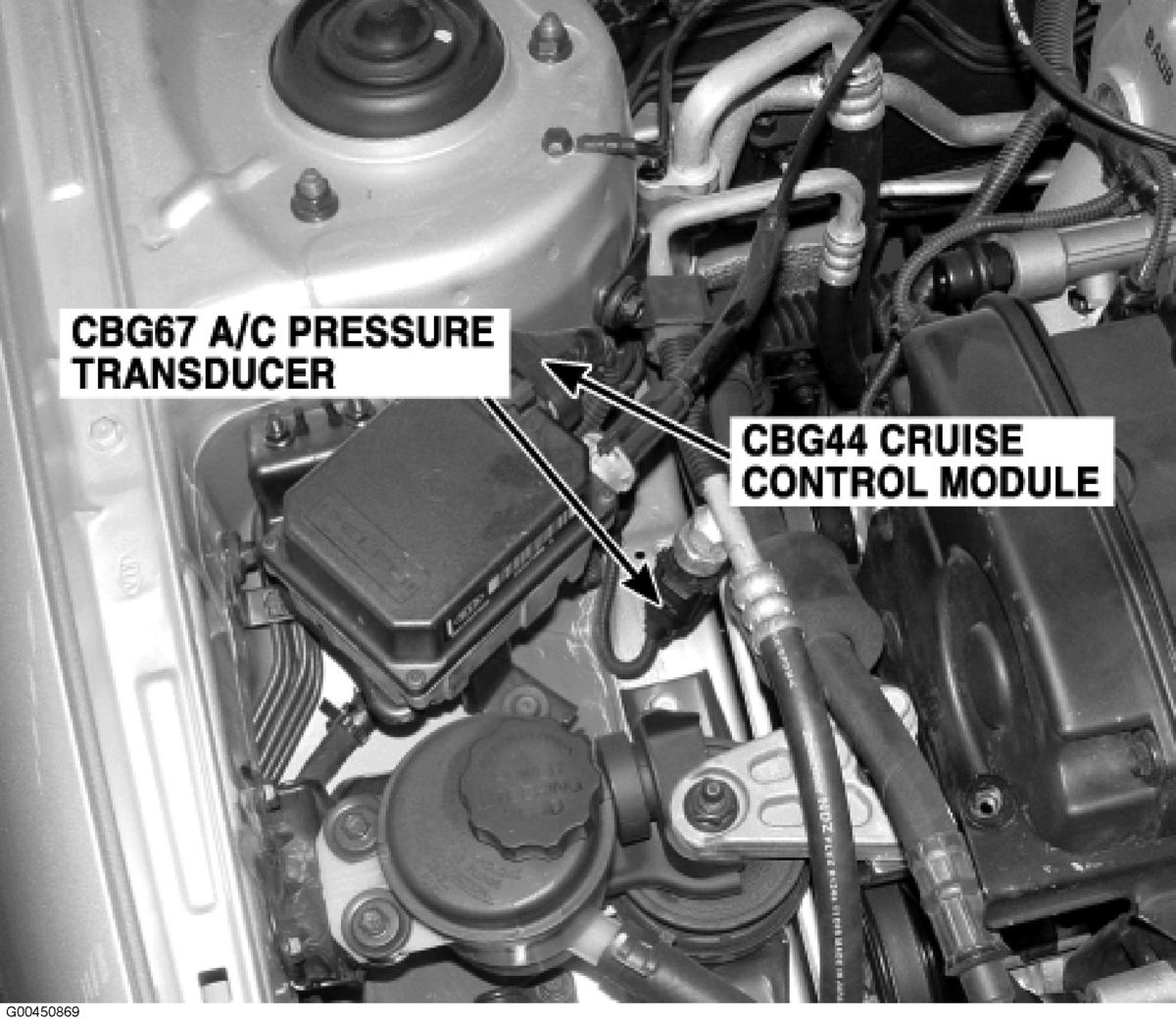

| Cruise Control Module | At right rear of engine compartment. See Figure. |

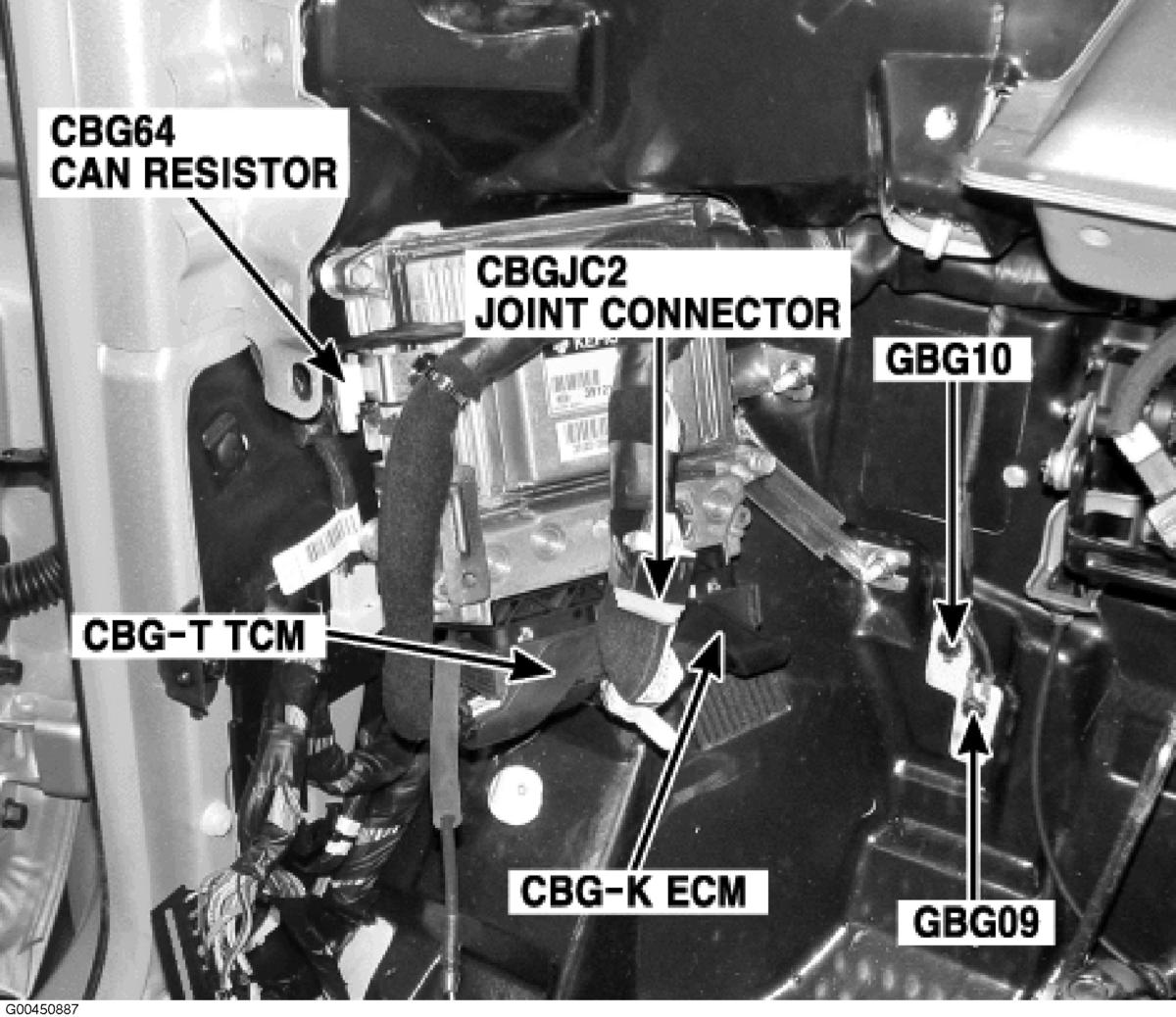

| ECM | Integral to instrument panel (I/P) junction box. See Figure. |

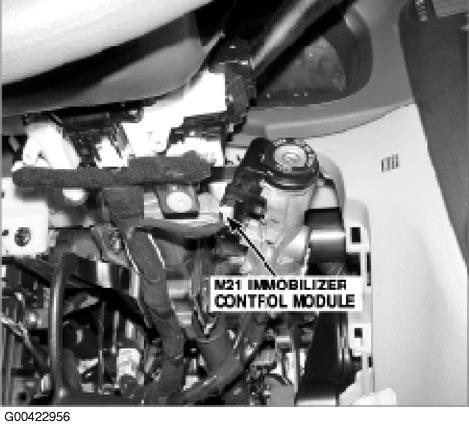

| Immobilizer Control Module | On steering column. See Figure. |

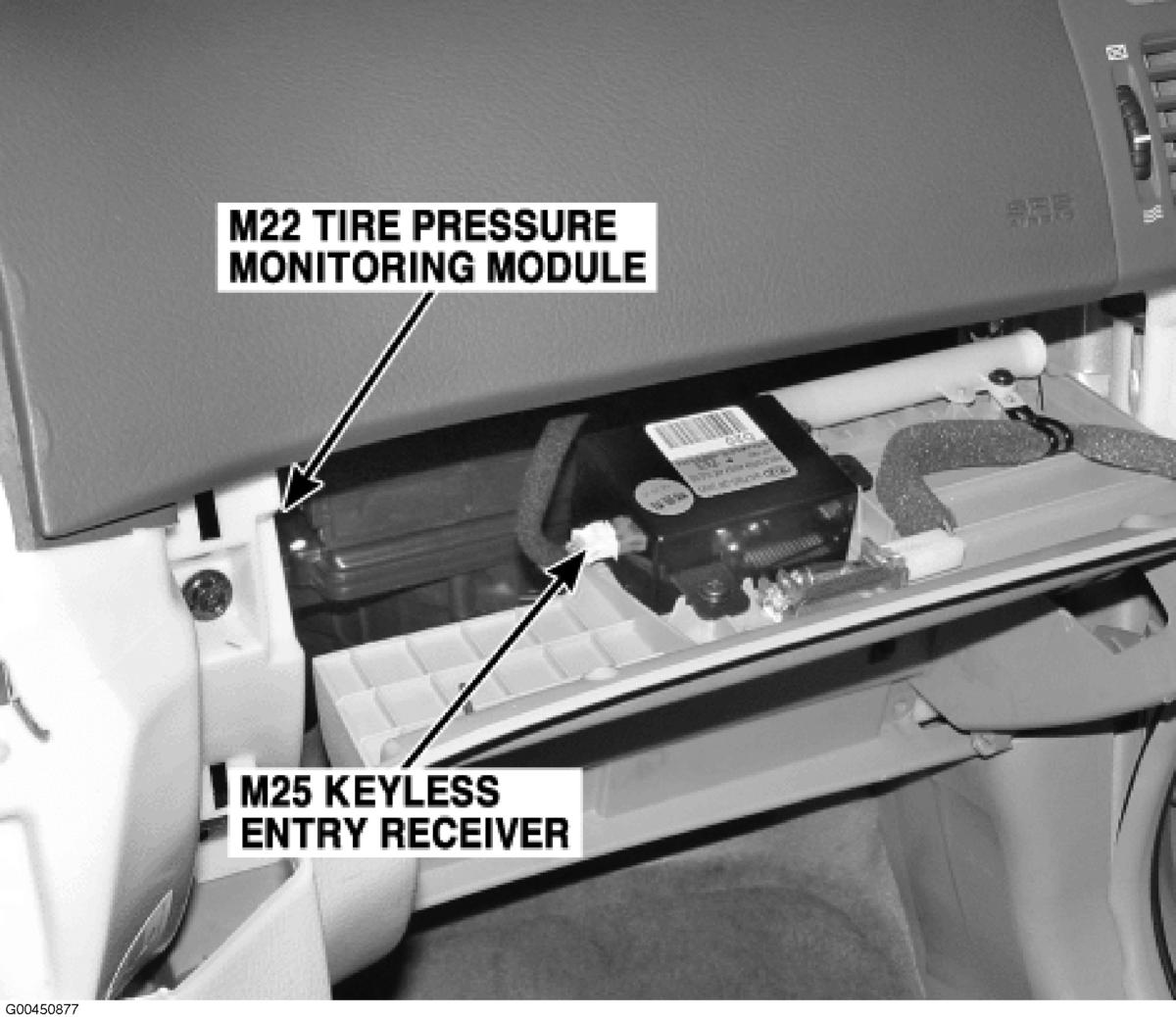

| Keyless Entry Receiver | Under glove compartment. See Figure. |

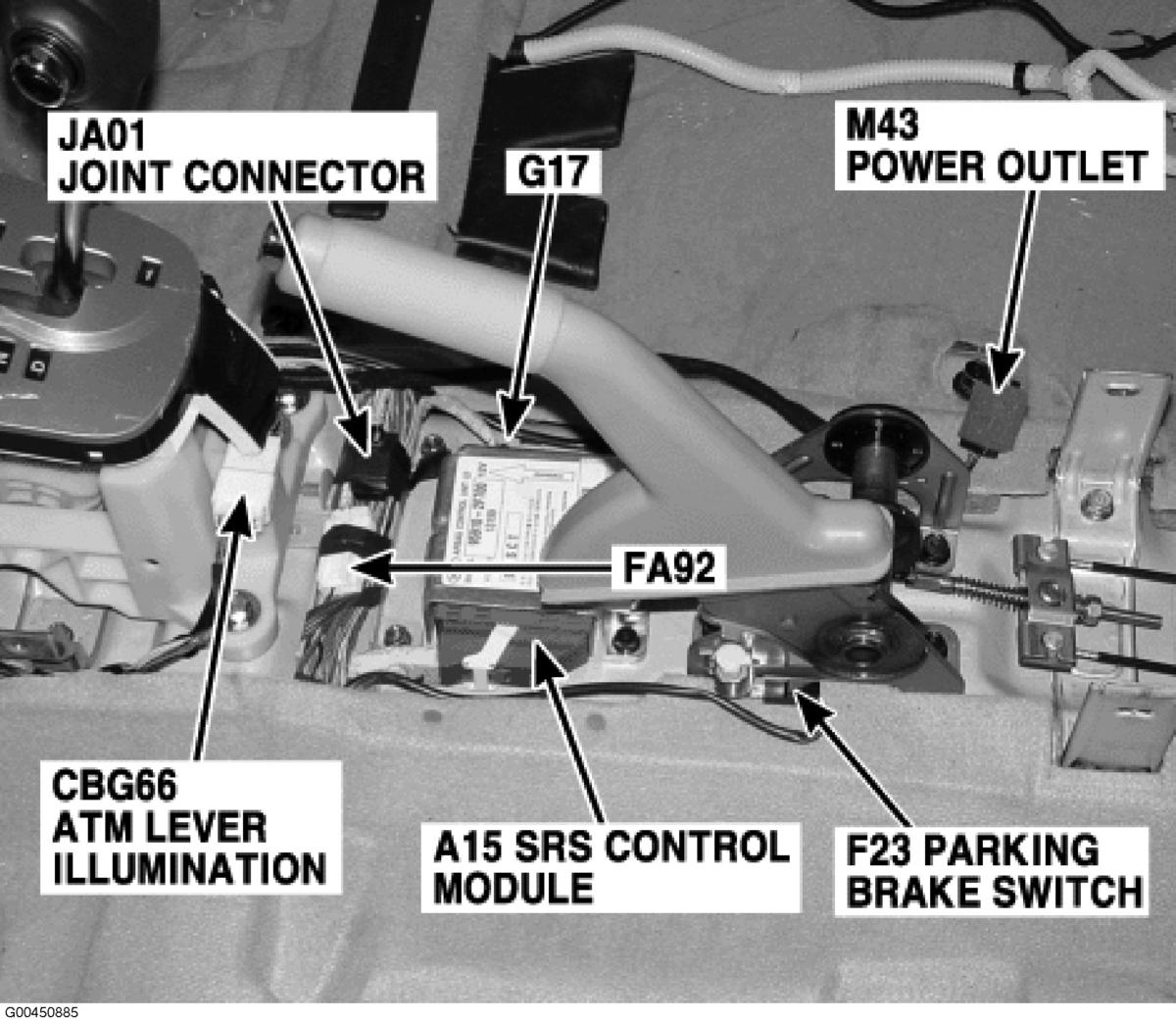

| SRS Control Module | Under center console. See Figure. |
| TCM | Integral to instrument panel (I/P) junction box. See Figure. |
| Tire Pressure Monitoring Module | Behind right side of dash. See Figure. |
