Armrest Replacement

  1. Remove the armrest mounting cover (A).

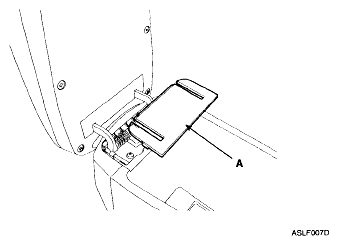

    Fig 1: Identifying Armrest Mounting Cover
    G04806091Courtesy of KIA MOTORS AMERICA, INC.
  2. After loosening the armrest mounting screws, remove the armrest (B).

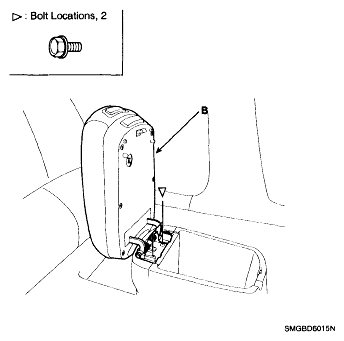

    Fig 2: Identifying Armrest
    G04806092Courtesy of KIA MOTORS AMERICA, INC.
  3. Installation is the reverse of removal.
