Audio Assembly Replacement

  1. Remove the center fascia panel. See CLUSTER FASCIA PANEL REPLACEMENT .
  2. Loosen the screws.
  3. Disconnect the audio connector and antenna cable, then remove the audio assembly (A).

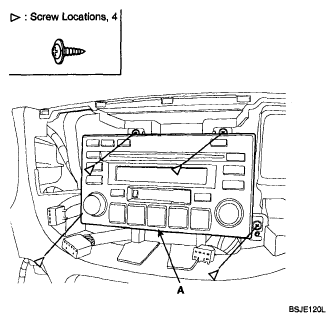

    Fig 1: Identifying Audio Assembly
    G04863405
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector is plugged in properly.
