Cluster Replacement

  1. Remove the cluster fascia panel. See CLUSTER FASCIA PANEL REPLACEMENT .
  2. Loosen the mounting screws.
    CAUTION:
    • Take care not to drop the glass scratch the glass surface.

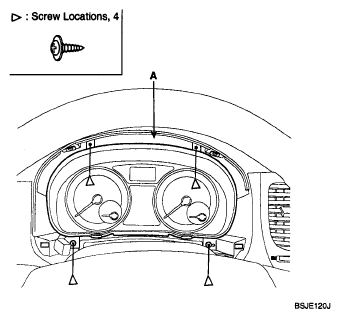

      Fig 1: Identifying Cluster Fascia Panel And Mounting Screws
      G04863403
  3. Disconnect the cluster connector (A), then remove the cluster.

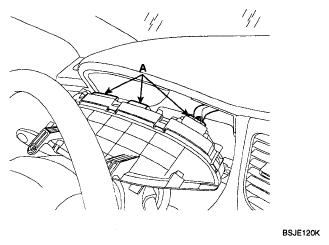

    Fig 2: Identifying Cluster Connector
    G04863404
    NOTE:
    • Make sure the connector is plugged in properly.
