Heater Control Unit Replacement

  1. Remove the center lower tray (A).

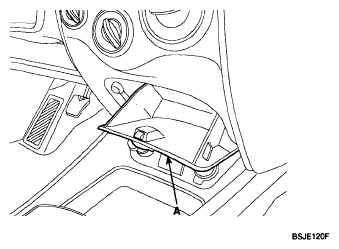

    Fig 1: Identifying Center Lower Tray
    G04863399
  2. After loosen the center fascia lower panel mounting screw, remove the center fascia lower panel (A). Disconnect the heater control unit connector (B).

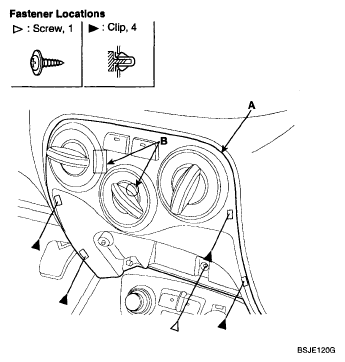

    Fig 2: Identifying Center Fascia Lower Panel And Heater Control Unit Connector
    G04863400
  3. Disconnect the heater control cable (A).

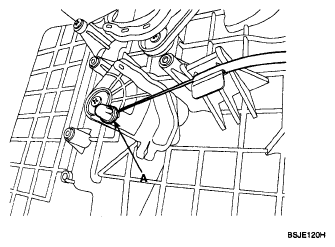

    Fig 3: Identifying Heater Control Cable
    G04863401
  4. Loosen the heater control unit mounting screw. Remove the heater control unit (A).

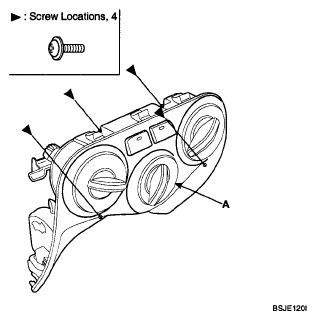

    Fig 4: Identifying Heater Control Unit And Mounting Screw
    G04863402
  5. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector is plugged in properly.
