Starting System: Starter: Disassembly

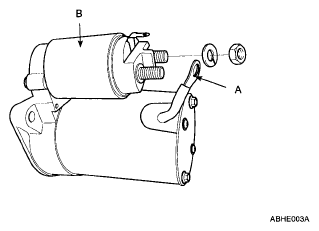

Disconnect the M-terminal (A) on the magnet switch assembly (B).

Fig 1: Identifying M-Terminal And Magnet Switch Assembly
Courtesy of KIA MOTORS AMERICA, INC.

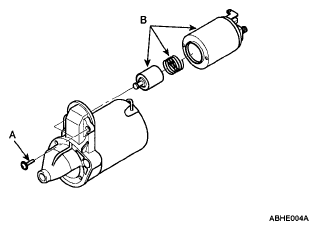

After loosening the 2 screws (A), detach the magnet switch assembly (B).

Fig 2: Identifying Magnet Switch Assembly And Screws
Courtesy of KIA MOTORS AMERICA, INC.

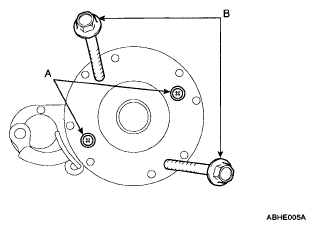

Loosen the brush holder mounting screw (A) and through bolts (B).

Fig 3: Identifying Brush Holder Mounting Screw And Through Bolts
Courtesy of KIA MOTORS AMERICA, INC.

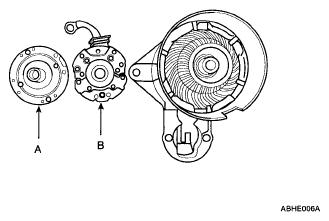

Remove the rear bracket (A) and brush holder assembly (B).

Fig 4: Identifying Rear Bracket And Brush Holder Assembly
Courtesy of KIA MOTORS AMERICA, INC.

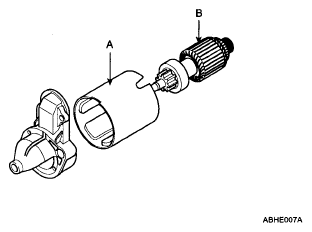

Remove the yoke (A) and armature (B).

Fig 5: Identifying Yoke And Armature
Courtesy of KIA MOTORS AMERICA, INC.

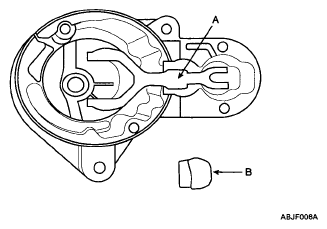

Remove the, lever plate (A) and packing (B).

Fig 6: Identifying Lever Plate And Packing
Courtesy of KIA MOTORS AMERICA, INC.
Remove the overrunning clutch and lever

Fig 7: Identifying Overrunning Clutch And Lever
Courtesy of KIA MOTORS AMERICA, INC.
Press the stop ring (A) using a socket (B).

Fig 8: Identifying Stop Ring And Socket
Courtesy of KIA MOTORS AMERICA, INC.
After removing the stopper (A) using stopper pliers (B).

Fig 9: Identifying Stopper And Stopper Pliers
Courtesy of KIA MOTORS AMERICA, INC.

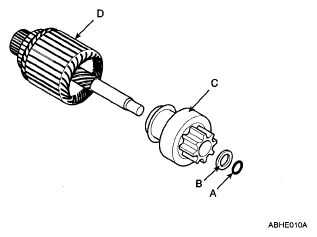

Remove the stopper (A), stop ring (B), overrunning clutch (C) and armature (D).

Fig 10: Identifying Stopper, Stop Ring, Overrunning Clutch And Armature
Courtesy of KIA MOTORS AMERICA, INC.
Reassembly is the reverse of disassembly.
NOTE: Using a suitable pulling tool (A), pull the overrunning clutch stop ring (B) over the stopper (C).

Fig 11: Identifying Pulling Tool, Overrunning Clutch Stop Ring And Stopper
Courtesy of KIA MOTORS AMERICA, INC.
