Audio Assembly Replacement

  1. Remove the center fascia panel. See REPLACEMENT .
  2. Loosen the screws.

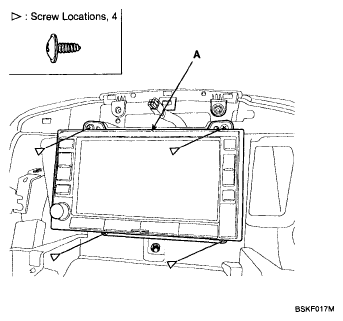

    Fig 1: Identifying Center Fascia Panel And Screw
    G04884086Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the connector (A), then remove the audio assembly (B).

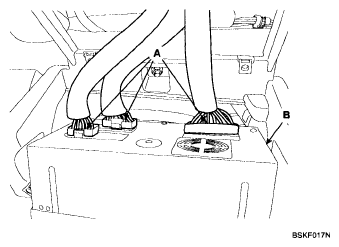

    Fig 2: Identifying Connector And Audio Assembly
    G04884087Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector are plugged in properly.
