Heater Control Unit Replacement

Remove the center fascia panel. See REPLACEMENT .
Remove the console upper cover (A).
Disconnect the connector (B).

Fig 1: Identifying Center Cover And Connector
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the air vent mounting screw, then remove the air vent (A).

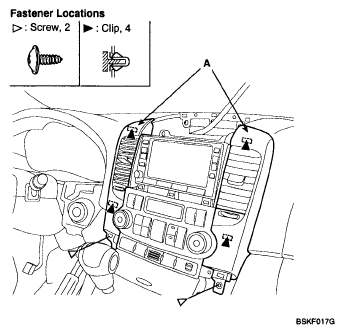

Fig 2: Identifying Air Vent And Fastener Locations
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the heater control unit mounting screws, then remove the heater control unit (A).

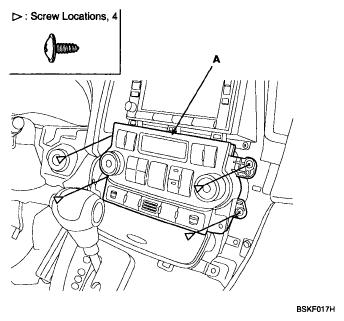

Fig 3: Identifying Heater Control Unit And Screw
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Make sure the connector (A) is plugged in properly.

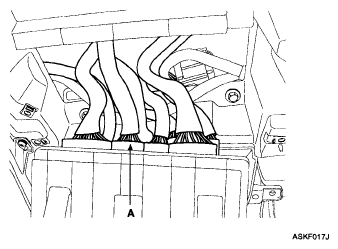

Fig 4: Identifying Connector (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

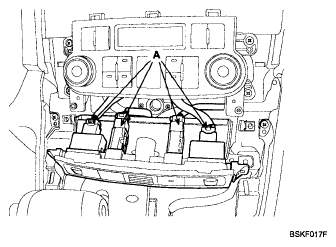

Fig 5: Identifying Connector (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
