Home >> Kia >> 2008 >> Sedona Base >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Switch >> Replacement >> Quarter Glass Switch

Quarter Glass Switch

  1. Remove (-) negative battery terminal.
  2. Disconnect the connector (B) after removing the quarter glass switch (A) from the rear cargo area luggage trim.

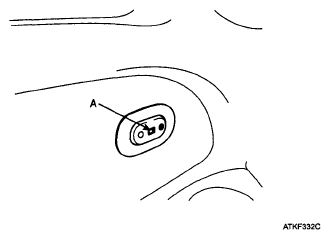

    Fig 1: Identifying Quarter Glass Switch
    G04885073Courtesy of KIA MOTORS AMERICA, INC.
  3. Installation is the reverse of removal.
