Power Windows: Troubleshooting

  1. No windows operate from the main switch on the driver's door.
    Fig 1: Troubleshooting Chart
    G06367397Courtesy of KIA MOTORS AMERICA, INC.

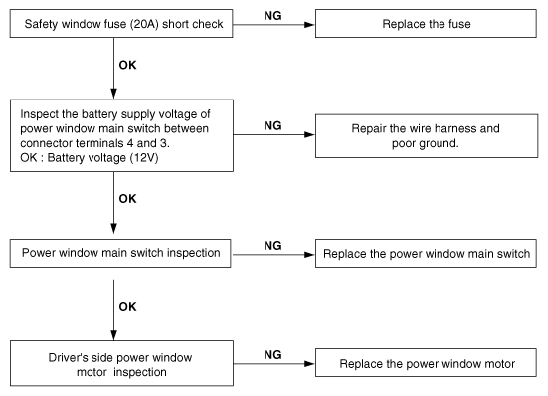

  2. Driver's side window does not operate.
    Fig 2: Troubleshooting Chart
    G06367398Courtesy of KIA MOTORS AMERICA, INC.

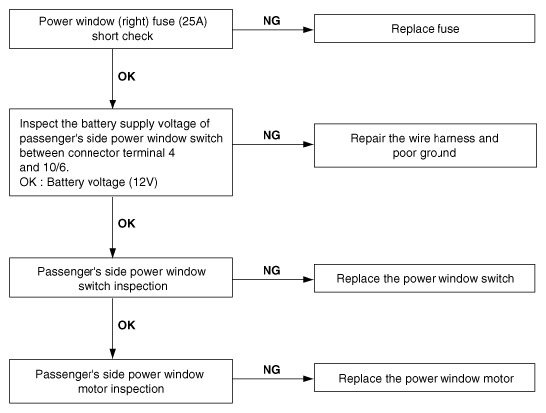

  3. Passenger's side window does not operate.
Fig 3: Troubleshooting Chart
G06367399Courtesy of KIA MOTORS AMERICA, INC.
