Automatic Transaxle: Component

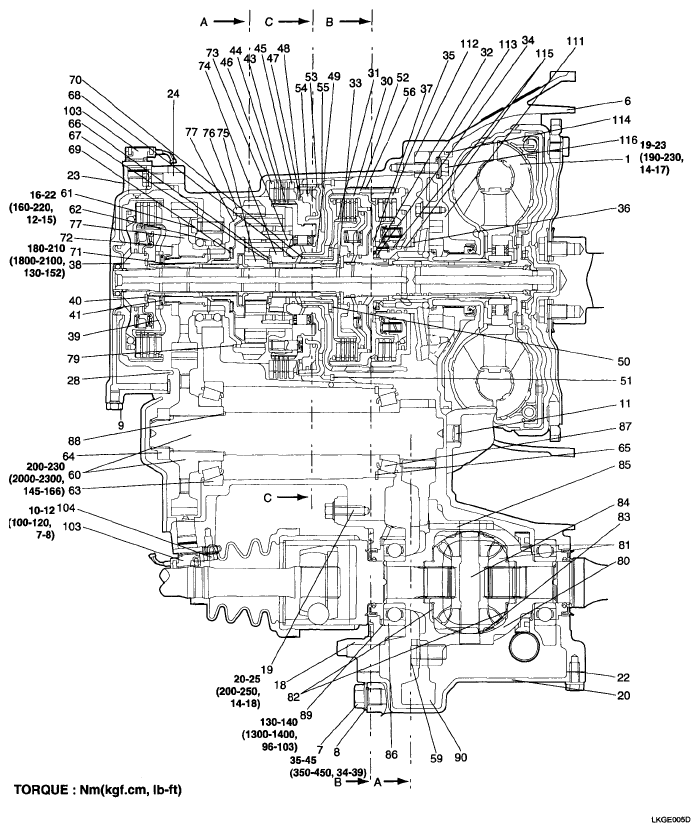

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications (1 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

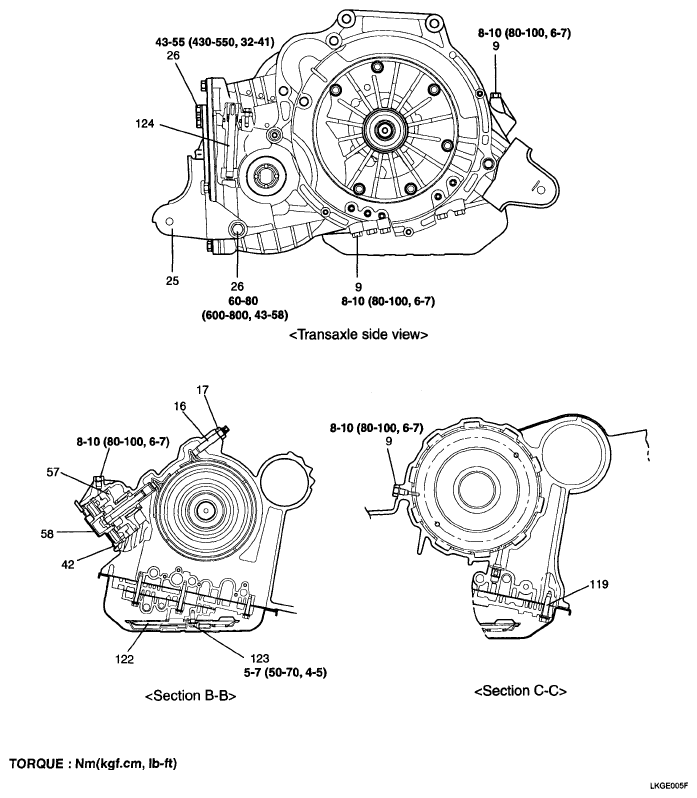

Fig 2: Automatic Transaxle Replacement Components With Torque Specifications (2 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

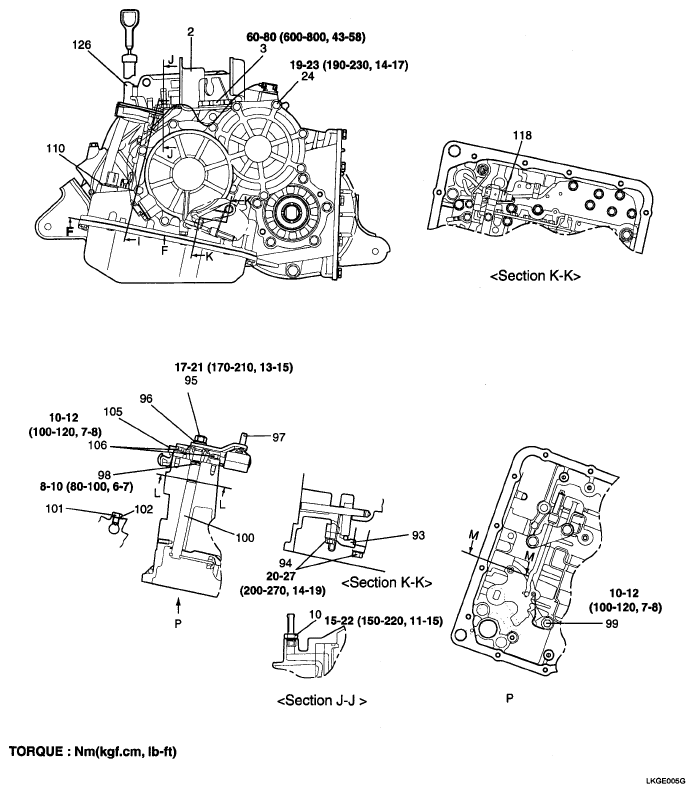

Fig 3: Automatic Transaxle Replacement Components With Torque Specifications (3 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

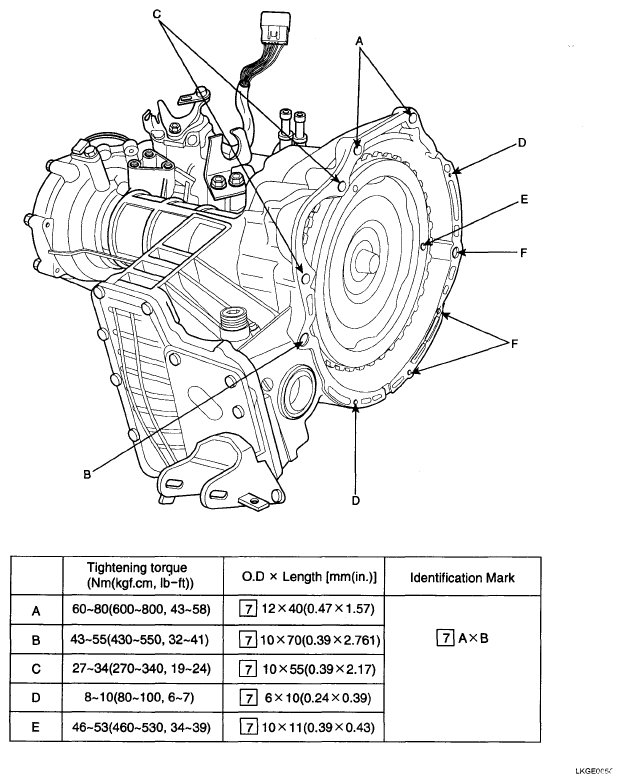

Fig 4: Automatic Transaxle Replacement Components With Torque Specifications (4 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

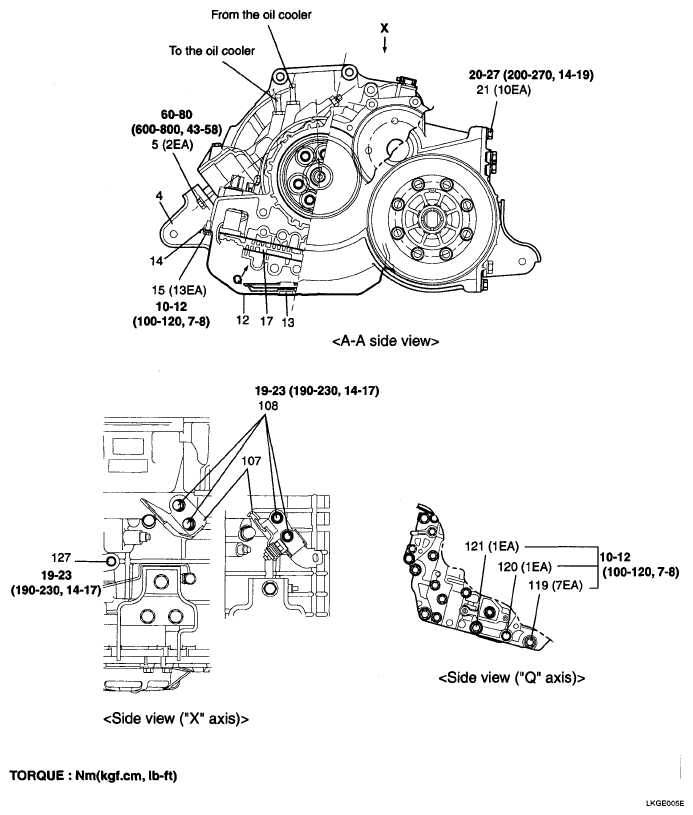

Fig 5: Automatic Transaxle Replacement Components With Torque Specifications (5 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

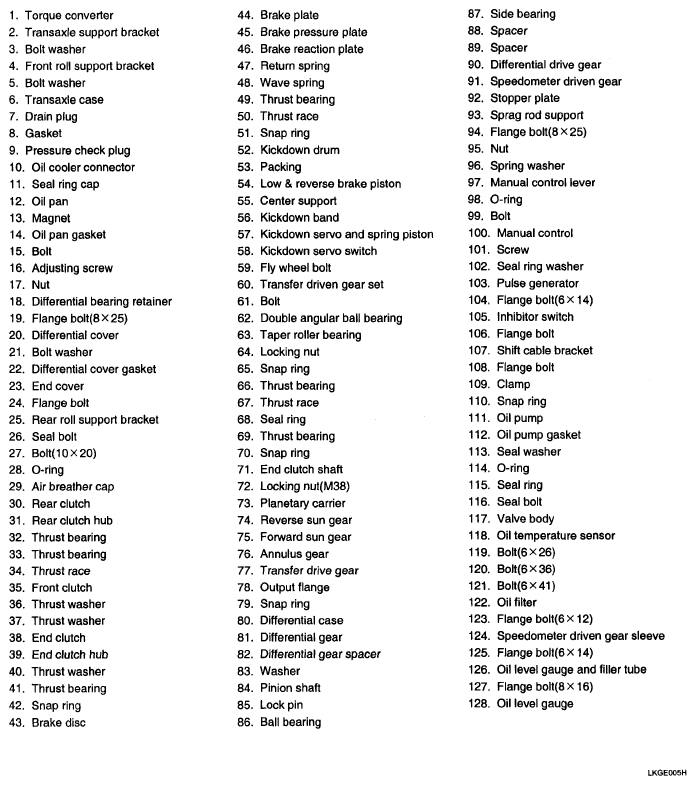

Fig 6: Identifying Automatic Transaxle Components

Courtesy of KIA MOTORS AMERICA, INC.
