"R" Range
"R" Range
Operating elements: Front Clutch, Low & Reverse Brake

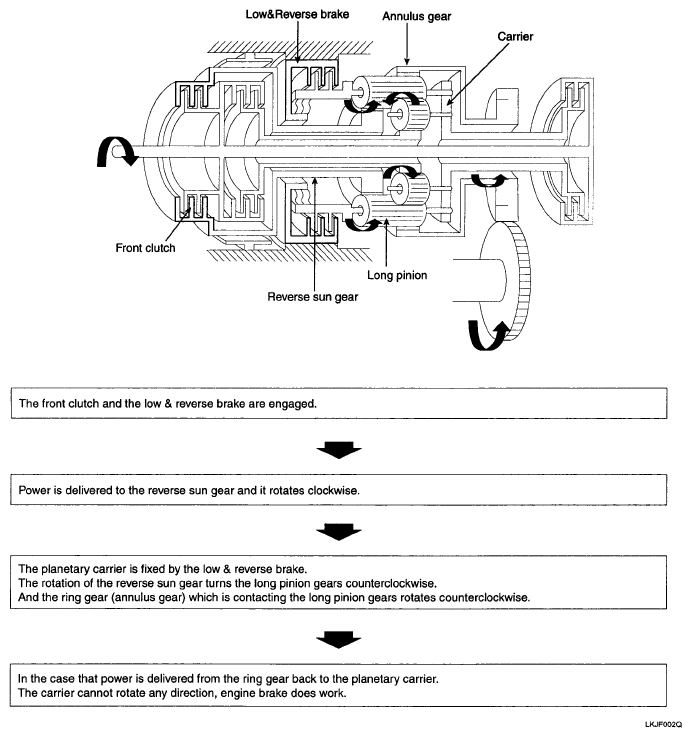

Fig 1: "R" Range - Front Clutch Low & Reverse Brake Operation
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
