Manual Valve

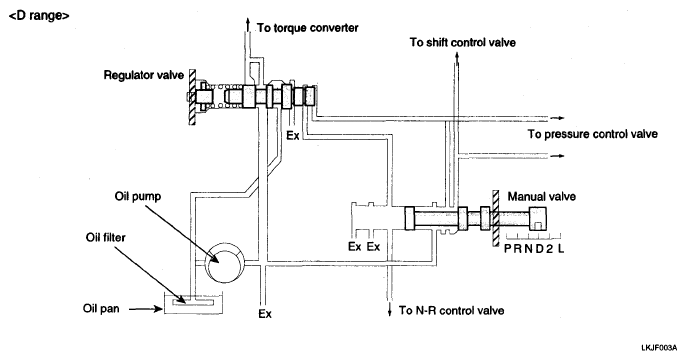

Fig 1: Manual Valve Operation Diagram - "D" Range
G04862504Courtesy of KIA MOTORS AMERICA, INC.

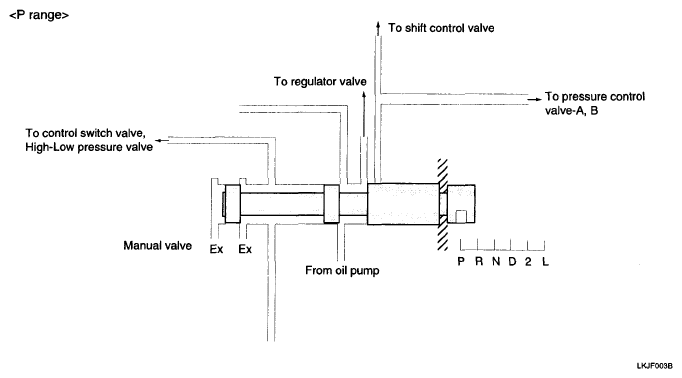

Fig 2: Manual Valve Operation Diagram - "P" Range
G04862505Courtesy of KIA MOTORS AMERICA, INC.

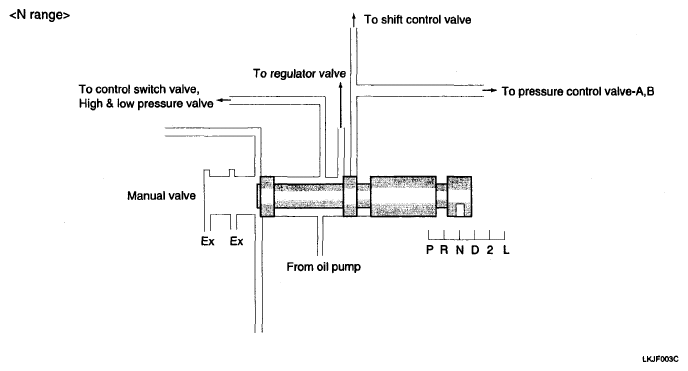

Fig 3: Manual Valve Operation Diagram - "N" Range
G04862506Courtesy of KIA MOTORS AMERICA, INC.
