Rondo EX, 2.4 8
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 2.4L
>>
Components and Components Location
>>
Component location
Component location

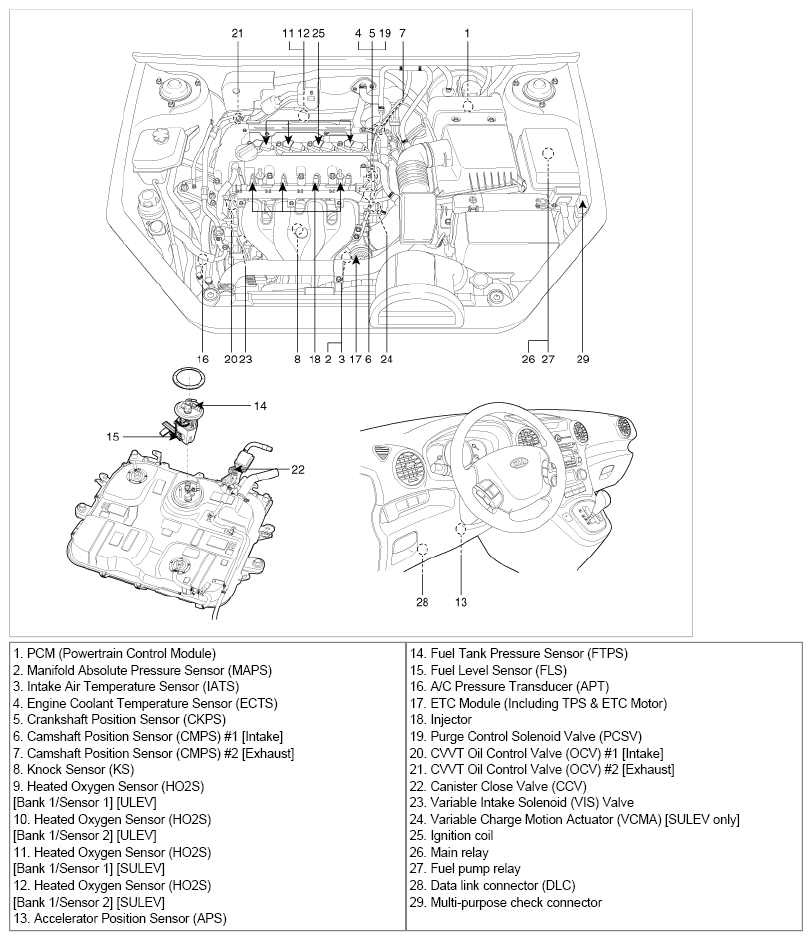

Fig 1: Locating Fuel System Components (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

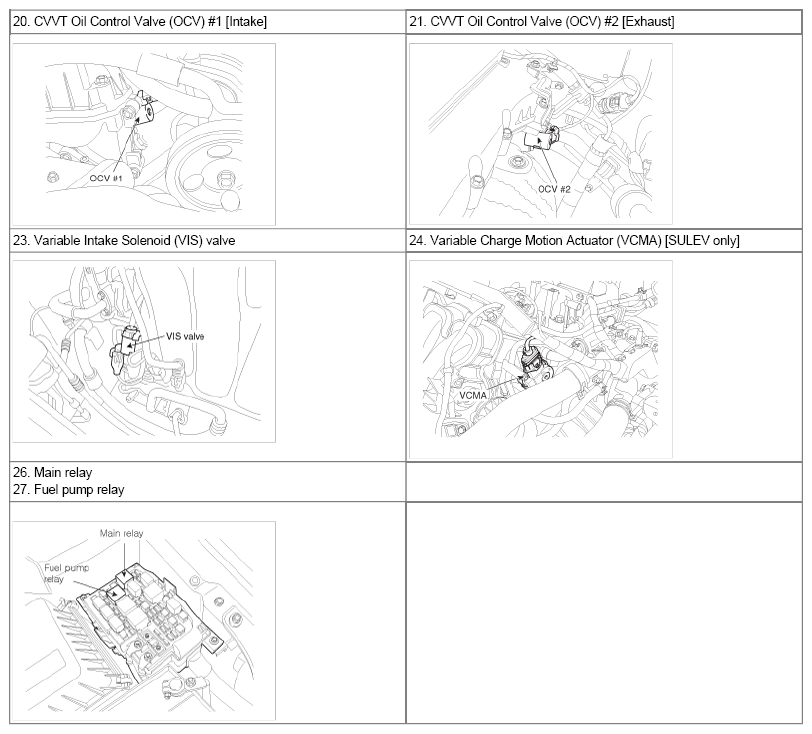

Fig 2: Locating Fuel System Components (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

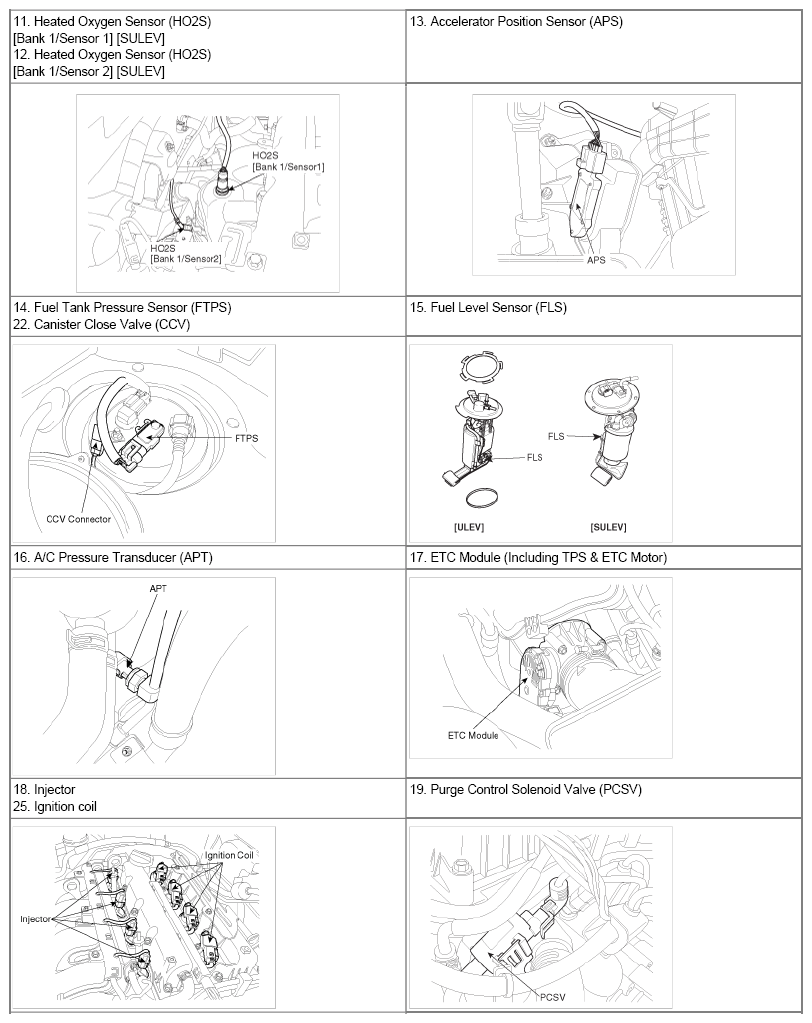

Fig 3: Locating Fuel System Components (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

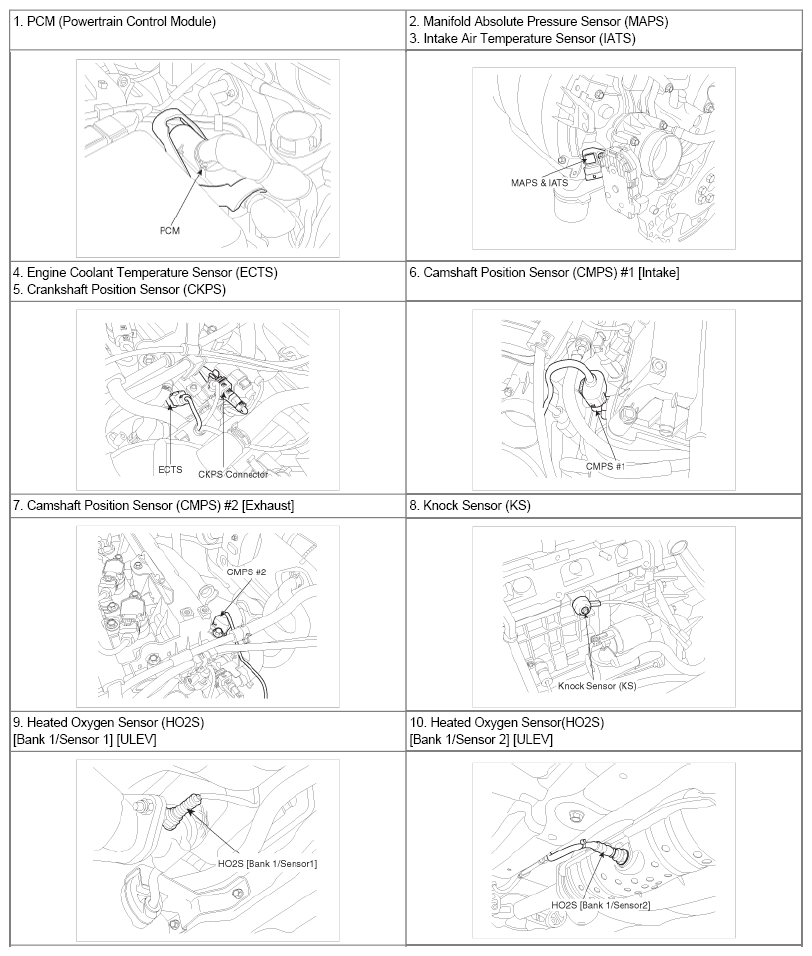

Fig 4: Locating Fuel System Components (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
