Components Location

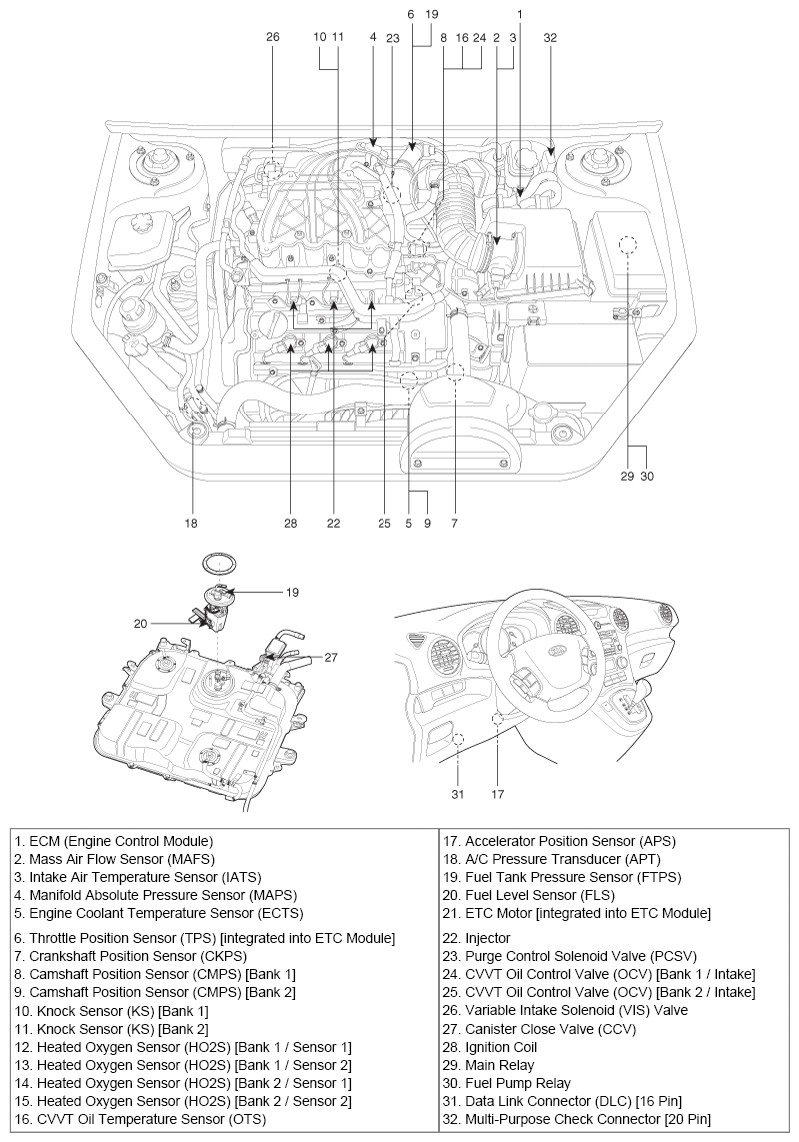

Fig 1: Identifying Engine Control System Components Location (1 Of 3)
G06486555Courtesy of KIA MOTORS AMERICA, INC.

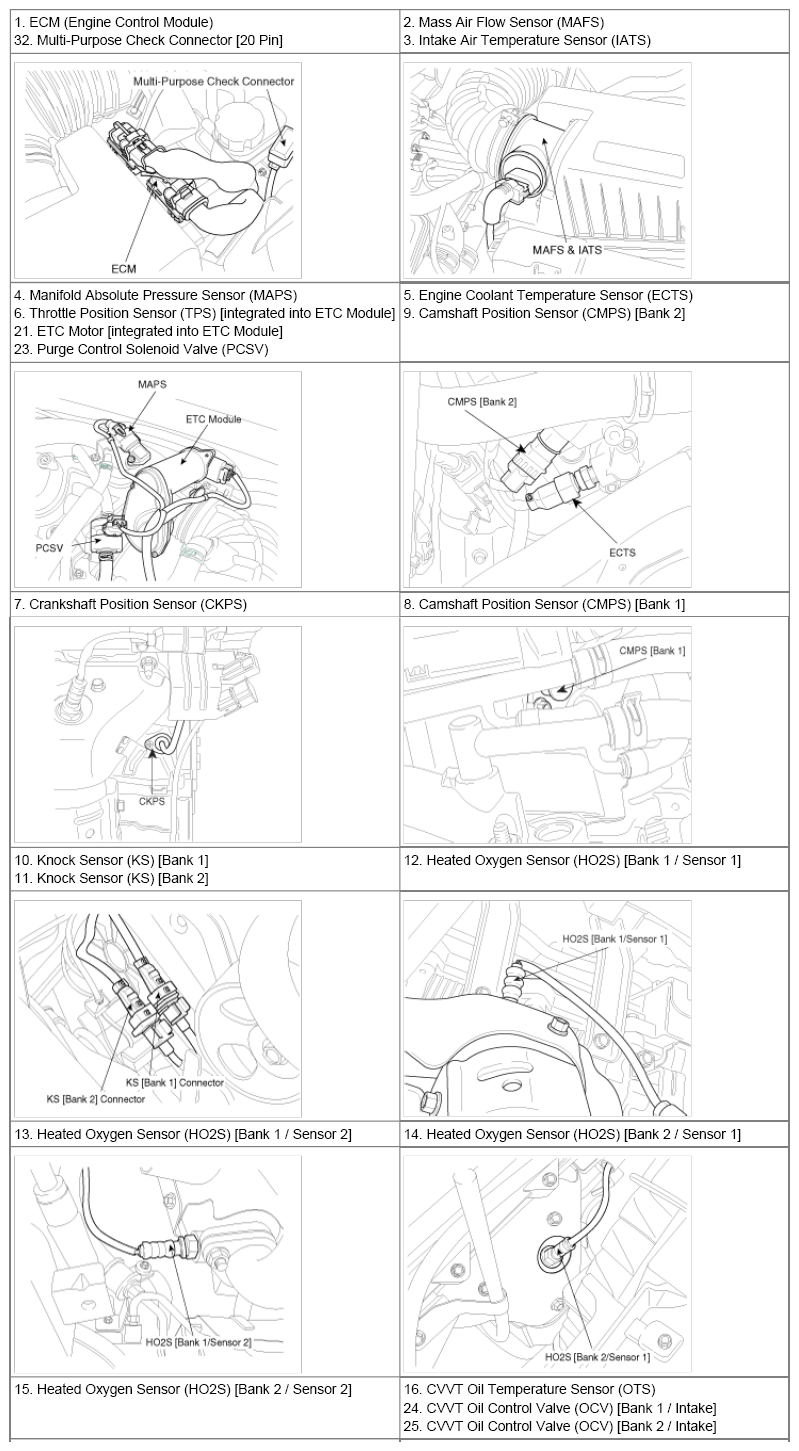

Fig 2: Identifying Engine Control System Components Location (2 Of 3)
G06486556Courtesy of KIA MOTORS AMERICA, INC.

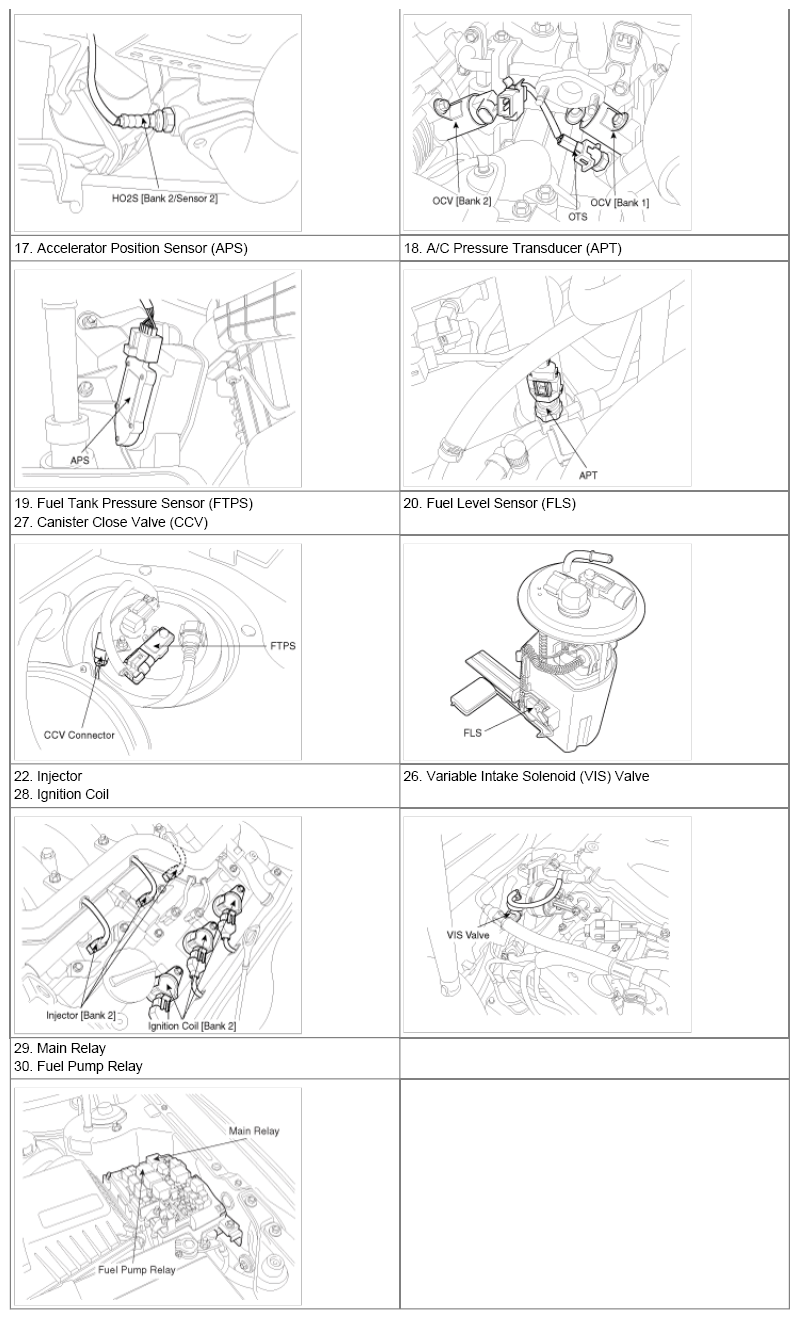

Fig 3: Identifying Engine Control System Components Location (3 Of 3)
G06486557Courtesy of KIA MOTORS AMERICA, INC.
