Circuit Diagram

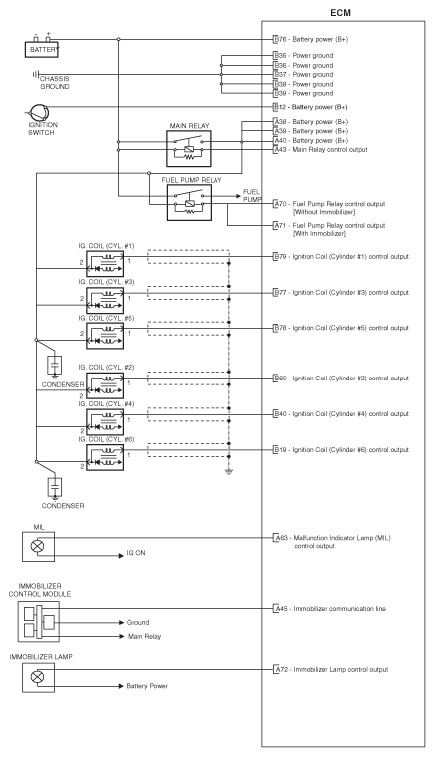

Fig 1: ECM Circuit Diagram (1 Of 5)

G06486559

Courtesy of KIA MOTORS AMERICA, INC.

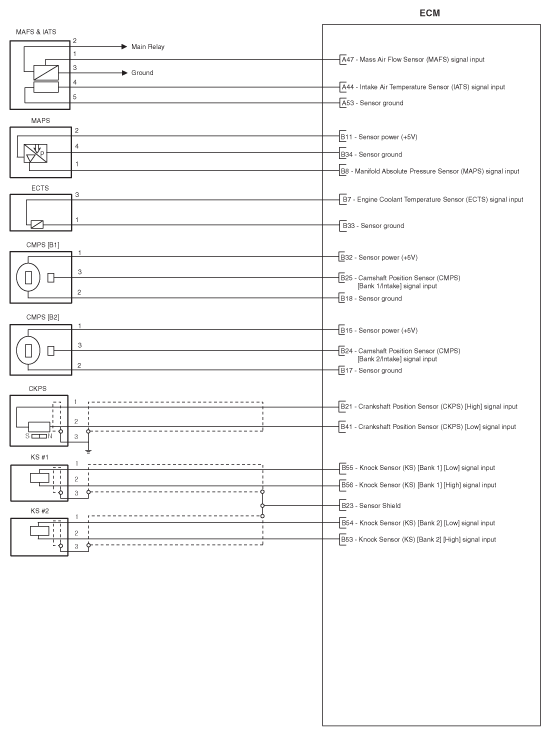

Fig 2: ECM Circuit Diagram (2 Of 5)

G06486560

Courtesy of KIA MOTORS AMERICA, INC.

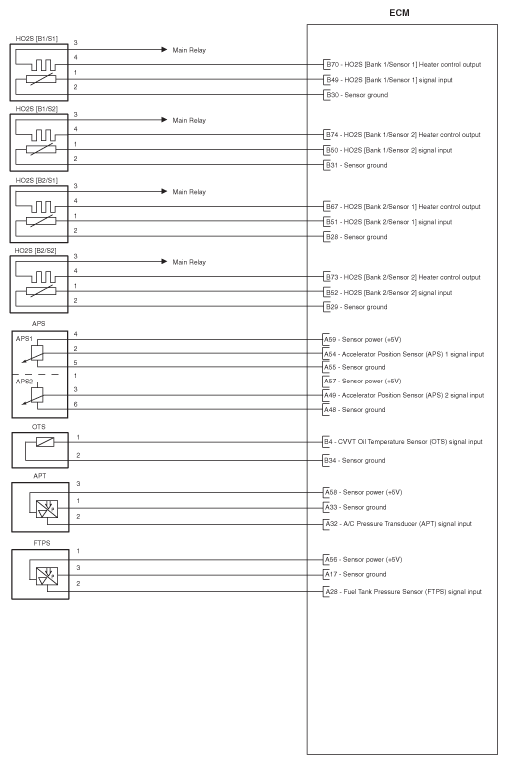

Fig 3: ECM Circuit Diagram (3 Of 5)

G06486561

Courtesy of KIA MOTORS AMERICA, INC.

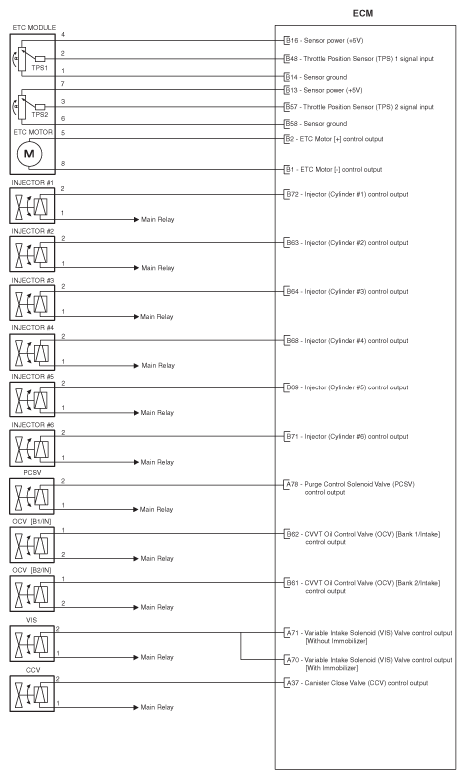

Fig 4: ECM Circuit Diagram (4 Of 5)

G06486562

Courtesy of KIA MOTORS AMERICA, INC.

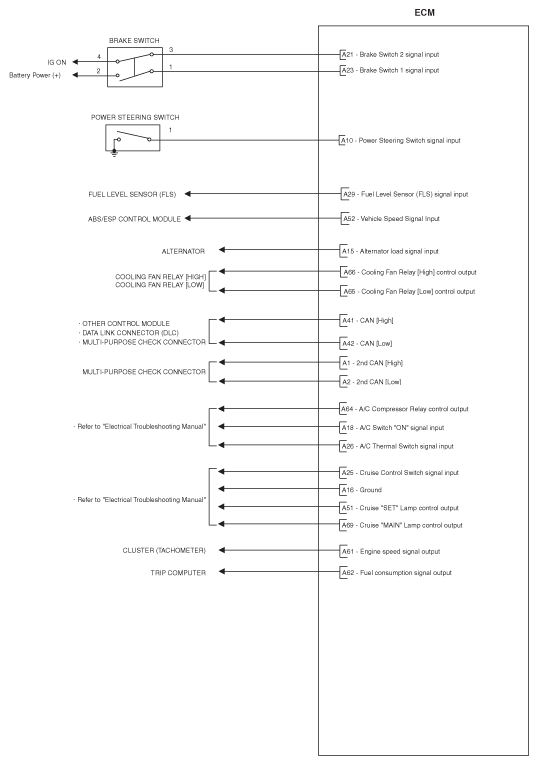

Fig 5: ECM Circuit Diagram (5 Of 5)

G06486563

Courtesy of KIA MOTORS AMERICA, INC.
