Body & Frame: Windows: Interior: Console: Components

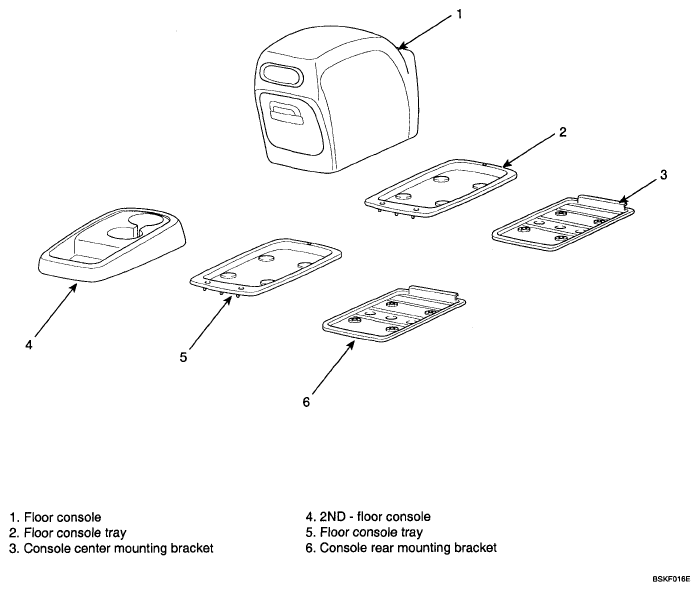

Fig 1: Identifying Console Components (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

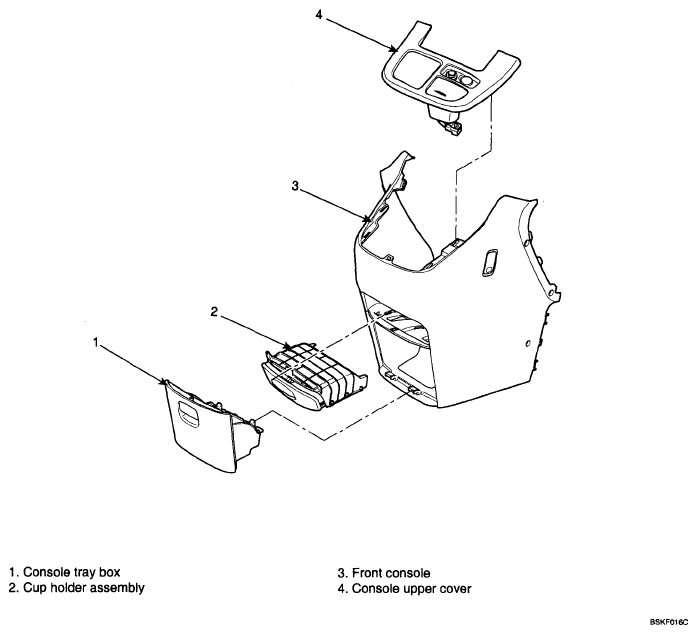

Fig 2: Identifying Console Components (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
