Home >> Kia >> 2009 >> Sedona Base >> Repair and Diagnosis >> Electrical >> Gauges >> Trip Computer >> Replacement

Trip Computer: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the lens and open the sunglass case cover from the overhead console then remove the 2 screws holding the overhead console. And disconnect the connector then remove the overhead console lamp assembly from the headliner.

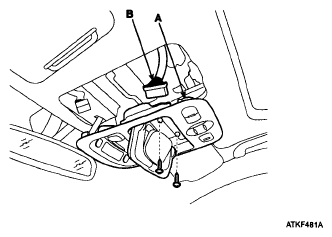

    Fig 1: Identifying Sunglass Case Cover And Overhead Console Lamp Assembly
    G04885248Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the trip computer (A) mounting screws (3 EA), and then disconnect from the overhead console.

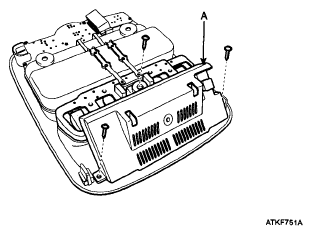

    Fig 2: Identifying Trip Computer And Mounting Screws
    G04885249Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
