Automatic Transaxle: Components

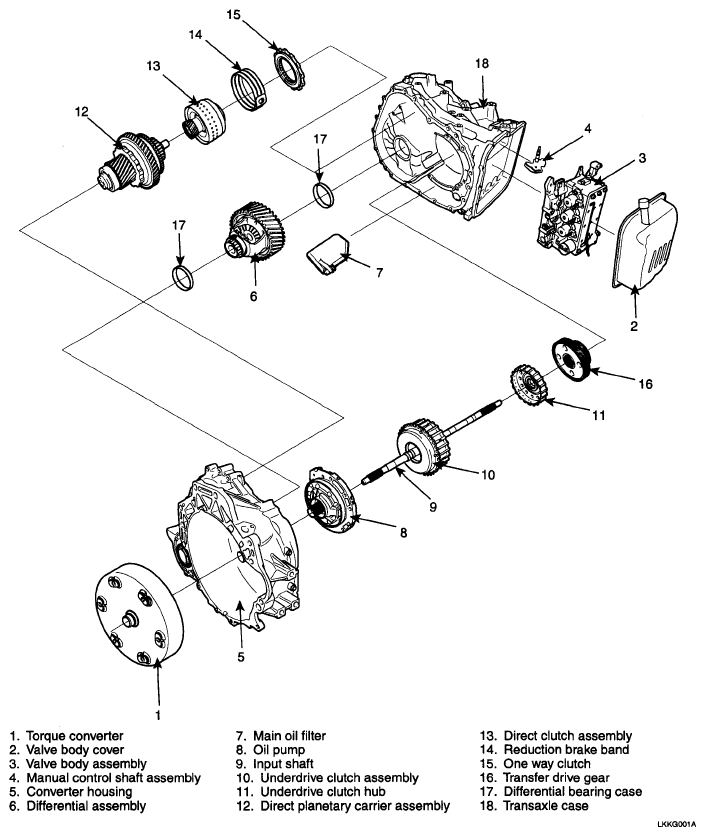

Fig 1: Identifying Automatic Transaxle Components (1 Of 2)
G04882310Courtesy of KIA MOTORS AMERICA, INC.

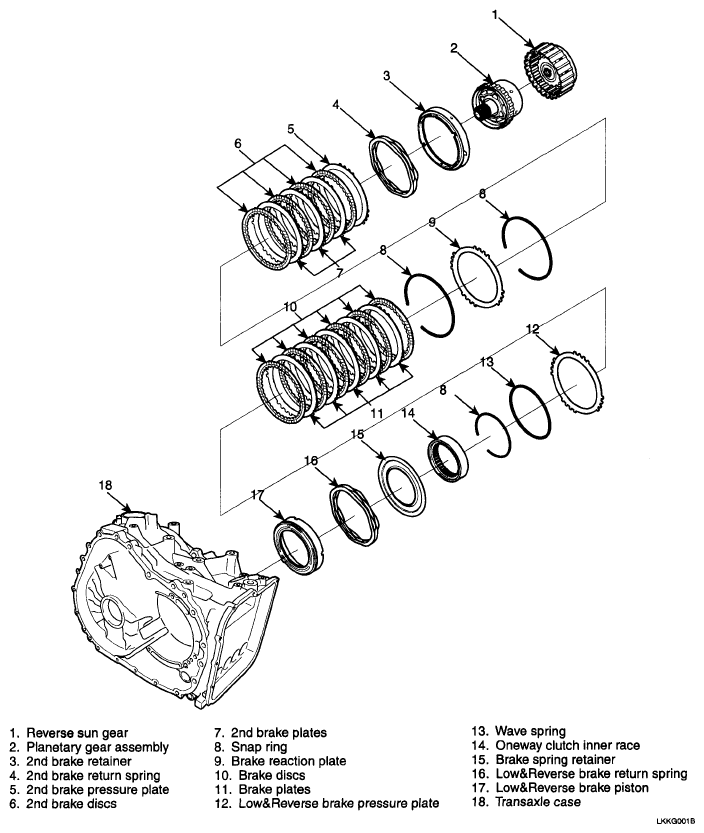

Fig 2: Identifying Automatic Transaxle Components (2 Of 2)
G04882311Courtesy of KIA MOTORS AMERICA, INC.
