Home >> Kia >> 2009 >> Sedona EX >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Starter >> Component

Starting System: Starter: Component

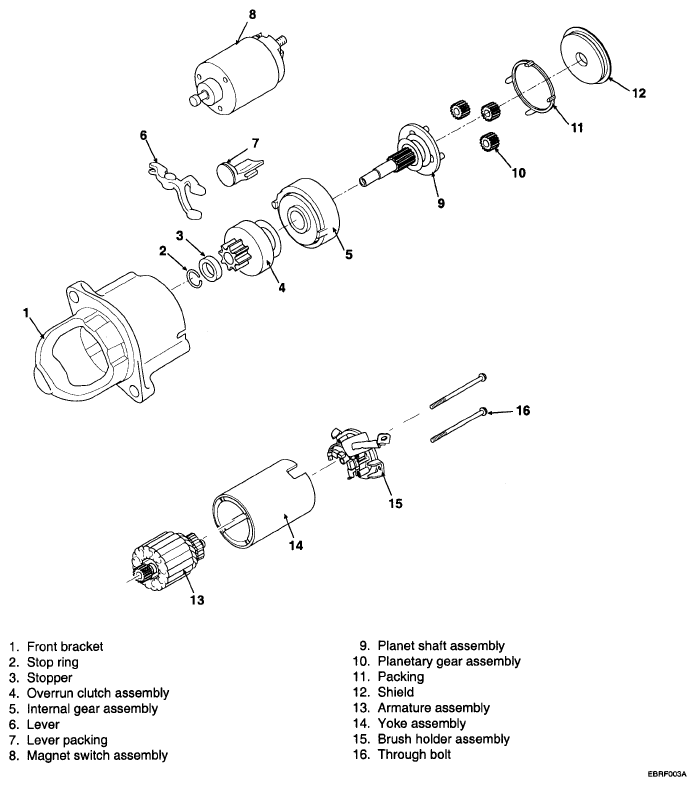

Fig 1: Exploded View Of Starter Components
G04882098Courtesy of KIA MOTORS AMERICA, INC.
