Power Window Main Switch

  1. Remove the switch from the door trim panel.
  2. Check for continuity between the terminals. If continuity is not as specified in the table, replace the power window switch.

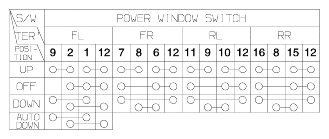

    Fig 1: Power Window Main Switch Connector Terminal (1 Of 2)
    G06410777Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Power Window Main Switch Connector Terminal (2 Of 2)
    G06410778Courtesy of KIA MOTORS AMERICA, INC.


  1. Remove the switch from the door trim panel.
  2. Check for continuity between the terminals. If continuity is not as specified in the table, replace the power window switch.
    Fig 1: Identifying Power Window Main Switch Connector Terminal (1 Of 2)
    G06410782Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Identifying Power Window Main Switch Connector Terminal (2 Of 2)
    G06410783Courtesy of KIA MOTORS AMERICA, INC.
