Schematic Diagrams

Fig 1: Engine Control Module - Circuit Diagram (1 Of 3)
G00488915Courtesy of KIA MOTORS AMERICA, INC.

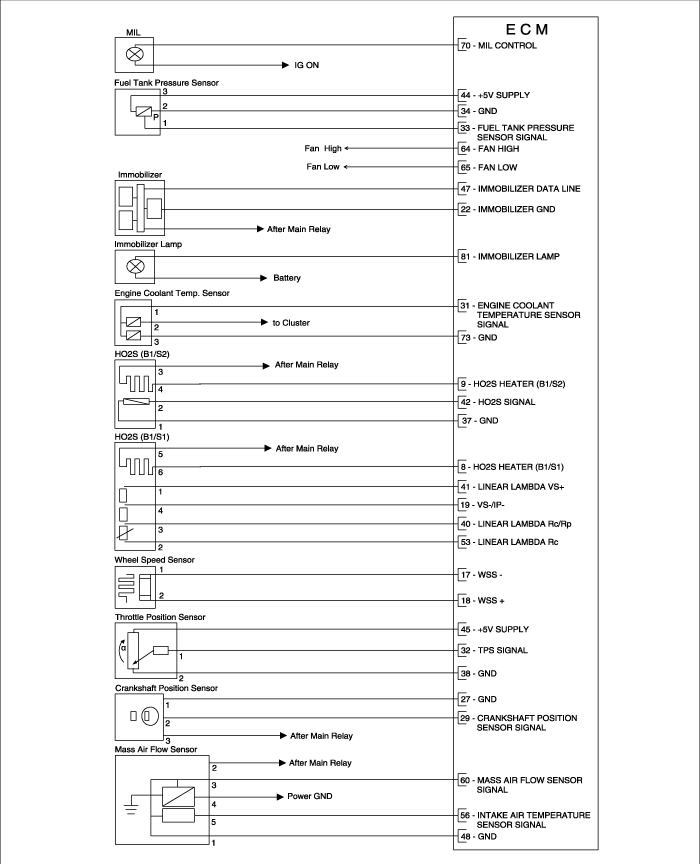

Fig 2: Engine Control Module - Circuit Diagram (2 Of 3)
G00488917Courtesy of KIA MOTORS AMERICA, INC.

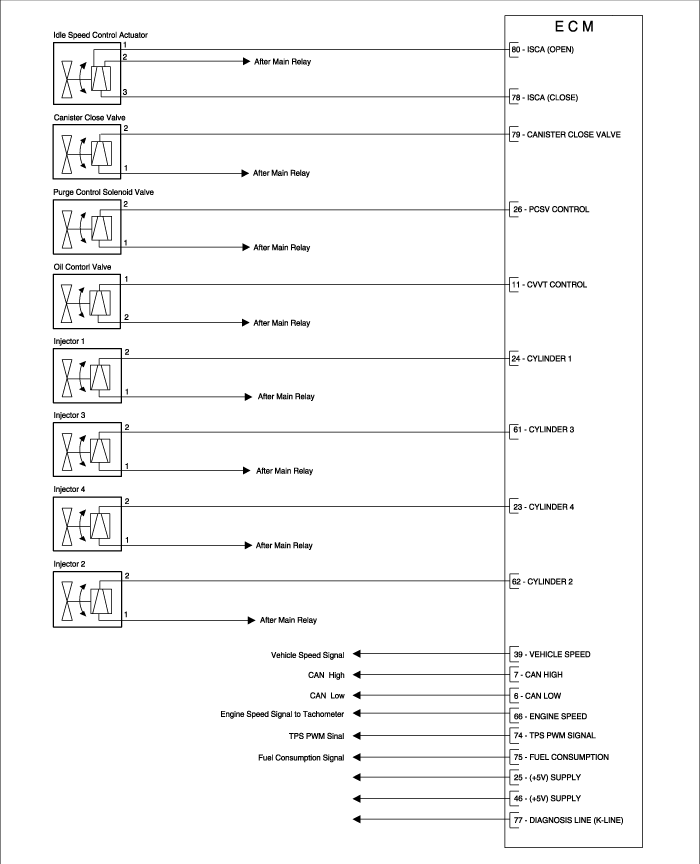

Fig 3: Engine Control Module - Circuit Diagram (3 Of 3)
G00488918Courtesy of KIA MOTORS AMERICA, INC.
