Key In Switch

Remove the crash pad lower panel.
(For Coupe, refer to CRASH PAD . For Sedan, refer to CRASH PAD .)
Disconnect the 6P connector from the key warning switch (A).

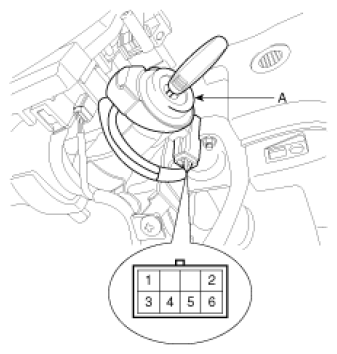

Fig 1: Identifying Key Warning Switch & 6P Connector
Courtesy of KIA MOTORS AMERICA, INC.
Check for continuity between the terminals in each position according to Fig 2.

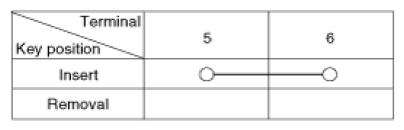

Fig 2: Key In Switch Continuity Reference Chart
Courtesy of KIA MOTORS AMERICA, INC.
