Transmitter Code Registration (Using GDS)

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the GDS ON.
Select the vehicle model and then do "CODE SAVING"

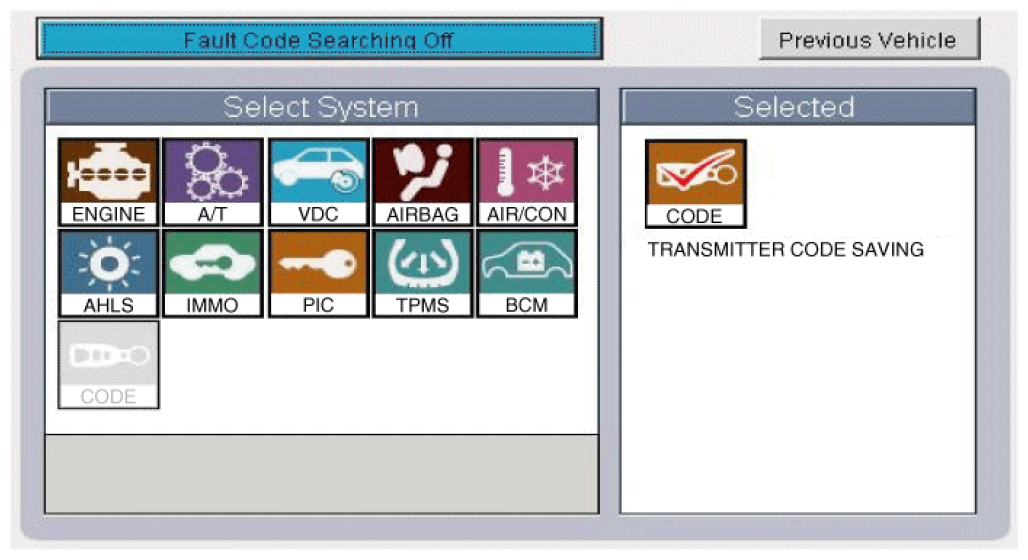

Fig 1: GDS Display - Selecting Transmitter Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
After selecting "CODE SAVING" menu, press the "ENTER" key, and then the screen will be as shown in Fig 2.

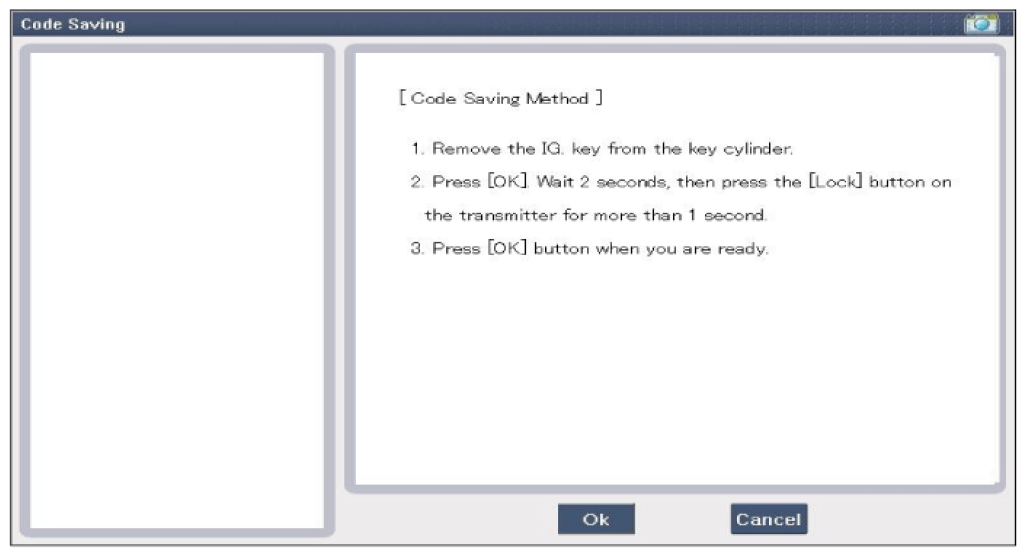

Fig 2: GDS Display - Code Saving Method Screen
Courtesy of KIA MOTORS AMERICA, INC.
After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving.

Follow steps 1 to 4 and then code saving is completed.

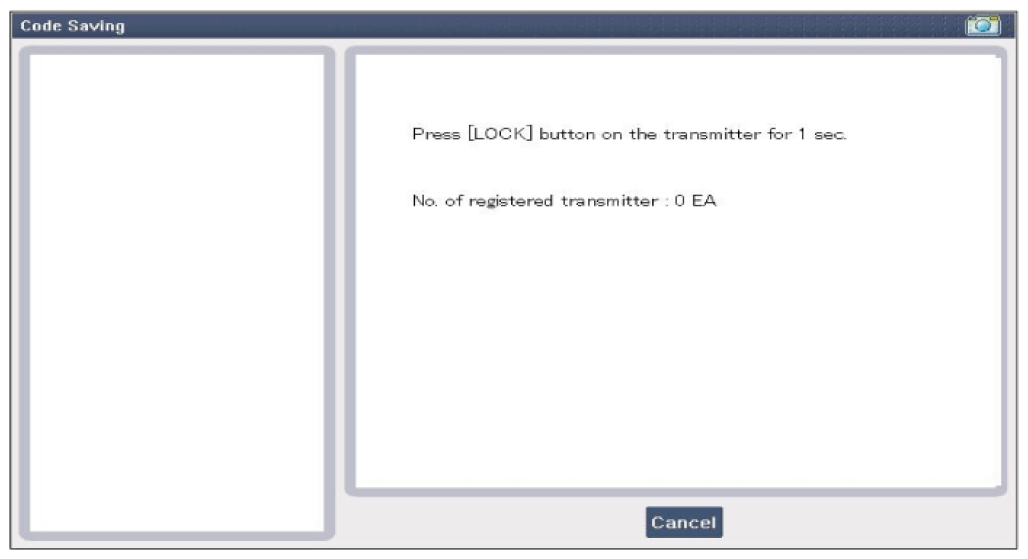

Fig 3: GDS Display - Transmitter Code Registration Procedure Screen (1 Of 9)

G06496137

Courtesy of KIA MOTORS AMERICA, INC.

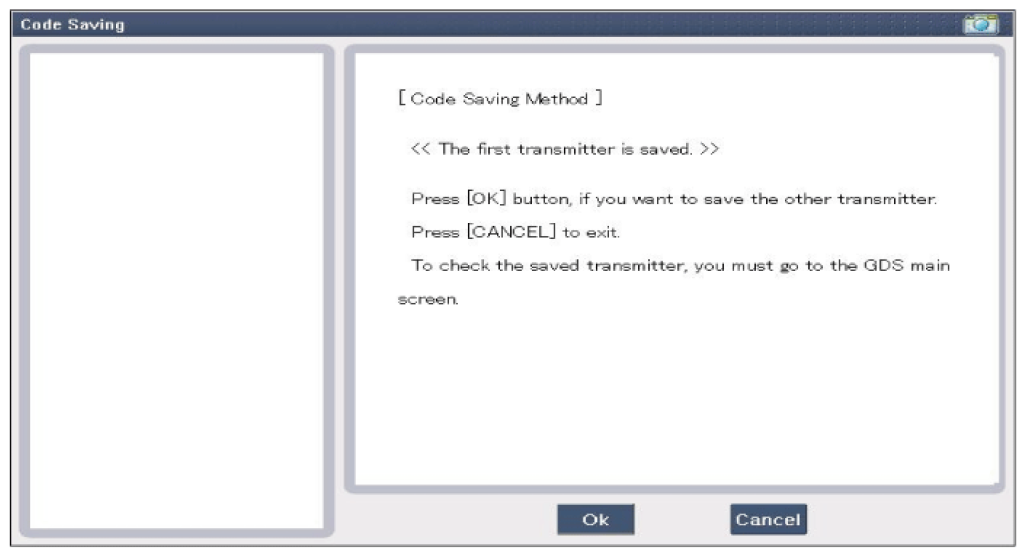

Fig 4: GDS Display - Transmitter Code Registration Procedure Screen (2 Of 9)

G06496138

Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: GDS Display - Transmitter Code Registration Procedure Screen (3 Of 9)

G06496139

Courtesy of KIA MOTORS AMERICA, INC.

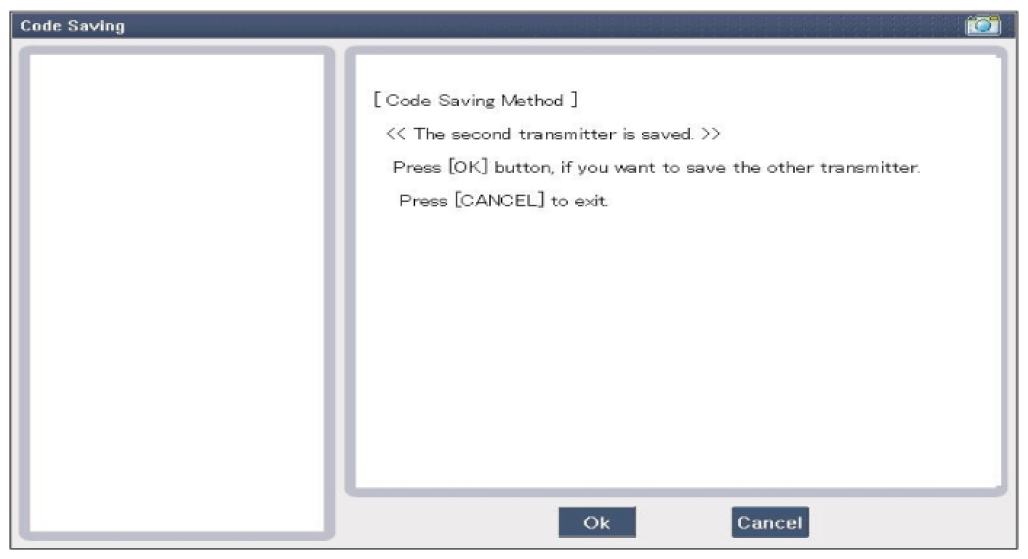

Fig 6: GDS Display - Transmitter Code Registration Procedure Screen (4 Of 9)

G06496140

Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: GDS Display - Transmitter Code Registration Procedure Screen (5 Of 9)

G06496141

Courtesy of KIA MOTORS AMERICA, INC.

Fig 8: GDS Display - Transmitter Code Registration Procedure Screen (6 Of 9)

G06496142

Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: GDS Display - Transmitter Code Registration Procedure Screen (7 Of 9)

G06496143

Courtesy of KIA MOTORS AMERICA, INC.

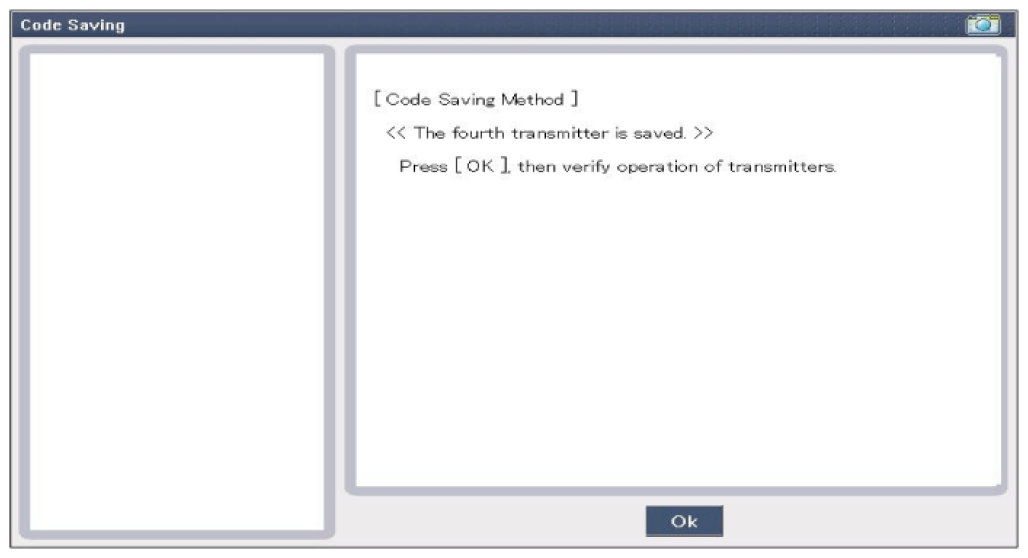

Fig 10: GDS Display - Transmitter Code Registration Procedure Screen (8 Of 9)

G06496144

Courtesy of KIA MOTORS AMERICA, INC.

Fig 11: GDS Display - Transmitter Code Registration Procedure Screen (9 Of 9)

G06496145

Courtesy of KIA MOTORS AMERICA, INC.
