ESCL Status Check

  1. Connect the cable of scan tool to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "ESCL STATUS INFO".

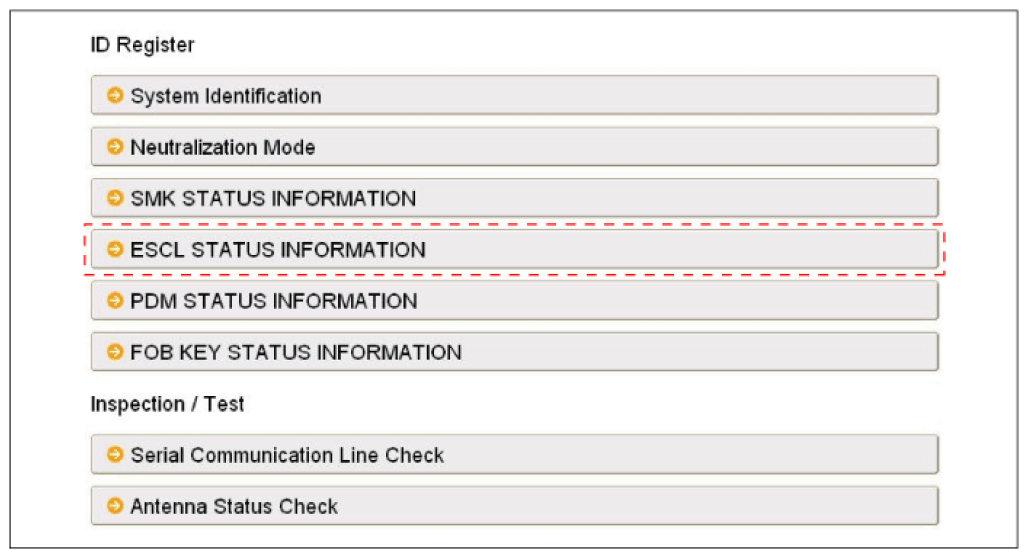

    Fig 1: Screen Display - Selecting ESCL Status Information
    G06496068Courtesy of KIA MOTORS AMERICA, INC.

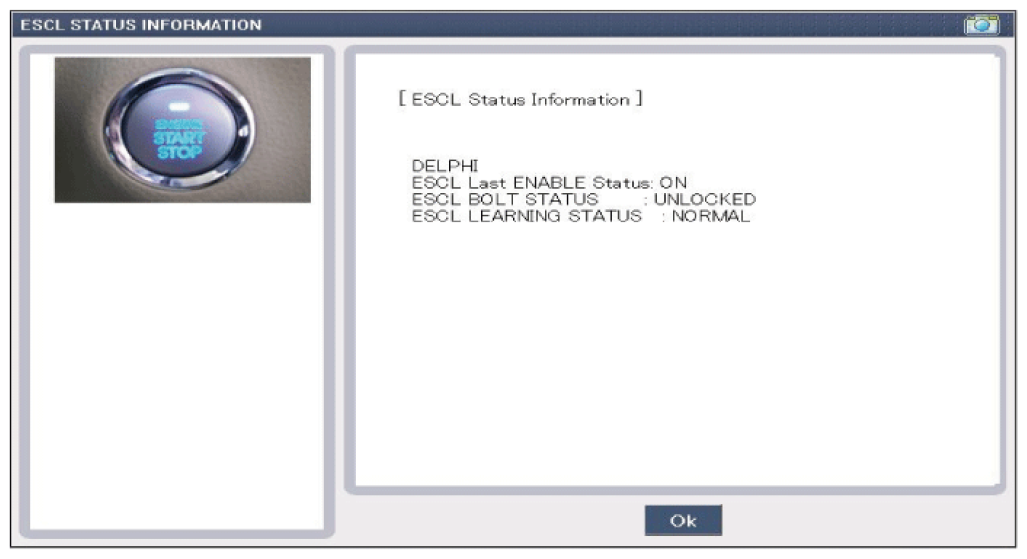

    Fig 2: Screen Display - Viewing ESCL Status Information
    G06496069Courtesy of KIA MOTORS AMERICA, INC.
