Home >> Kia >> 2010 >> Forte EX, Automatic >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Repair Procedures >> Inspection >> FOB Status Check

FOB Status Check

  1. Connect the cable of scan tool to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

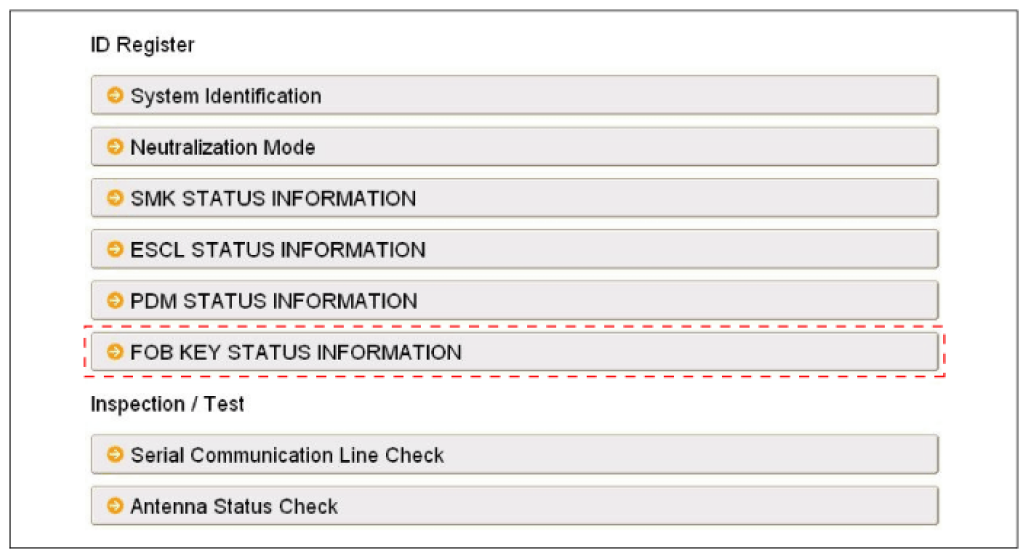

    Fig 1: Screen Display - Selecting Fob Key Status Information
    G06496062Courtesy of KIA MOTORS AMERICA, INC.

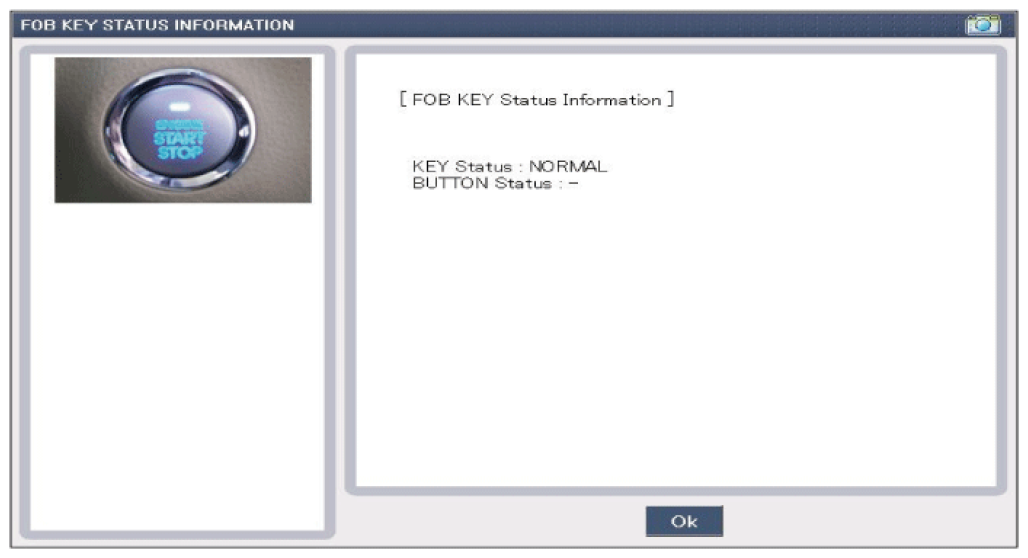

    Fig 2: Screen Display - Viewing Fob Key Status Information
    G06496063Courtesy of KIA MOTORS AMERICA, INC.
