Trunk Lid Open Switch

  1. Remove the trunk trim.

    (Refer to TRUNK TRIM REPLACEMENT .)

  2. Check for continuity between the Trunk actuator terminals.

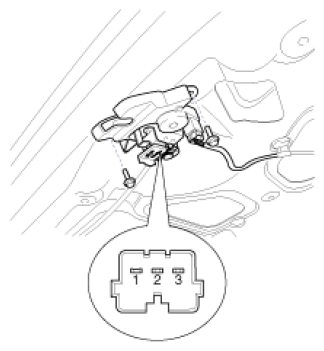

    Fig 1: Identifying Trunk Actuator Terminals
    G06496087Courtesy of KIA MOTORS AMERICA, INC.
  3. If continuity is not specified, inspect the switch

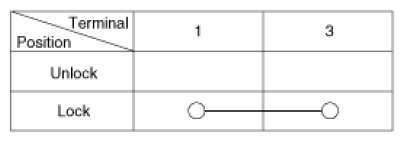

    Fig 2: Trunk Actuator Continuity Chart
    G06496088Courtesy of KIA MOTORS AMERICA, INC.
