Trunk Lid Switch

  1. Disconnected negative (-) battery terminal.
  2. Remove the trunk lid trim.

    (For Coupe, refer to TRUNK LID . For Sedan, refer to TRUNK LID .)

  3. Remove the trunk garnish (A).
    Fig 1: Identifying Trunk Garnish
    G06496105Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the trunk lid switch (A).

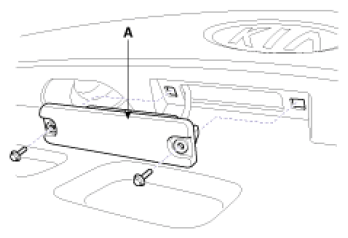

    Fig 2: Identifying Trunk Lid Switch
    G06496106Courtesy of KIA MOTORS AMERICA, INC.
