Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component	Location

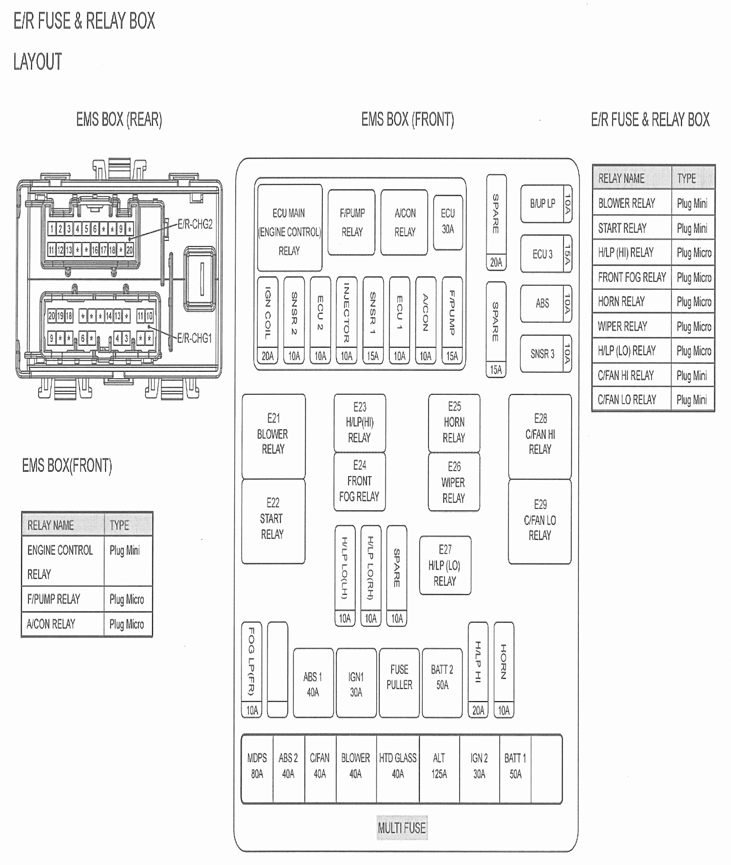

E/R Fuse & Relay Box	Left rear of engine compartment. See Figure.

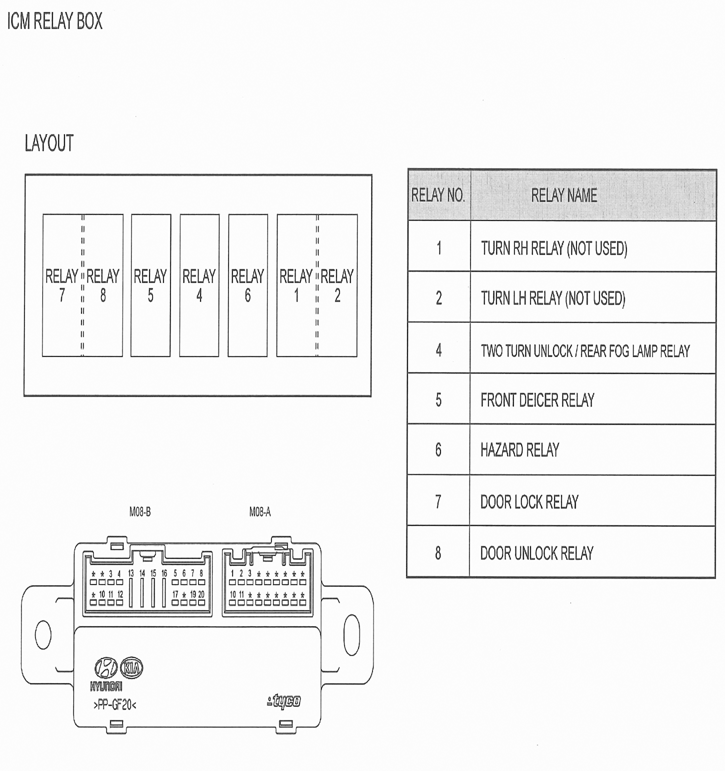

ICM Relay Box	Dash center support. See Figure.

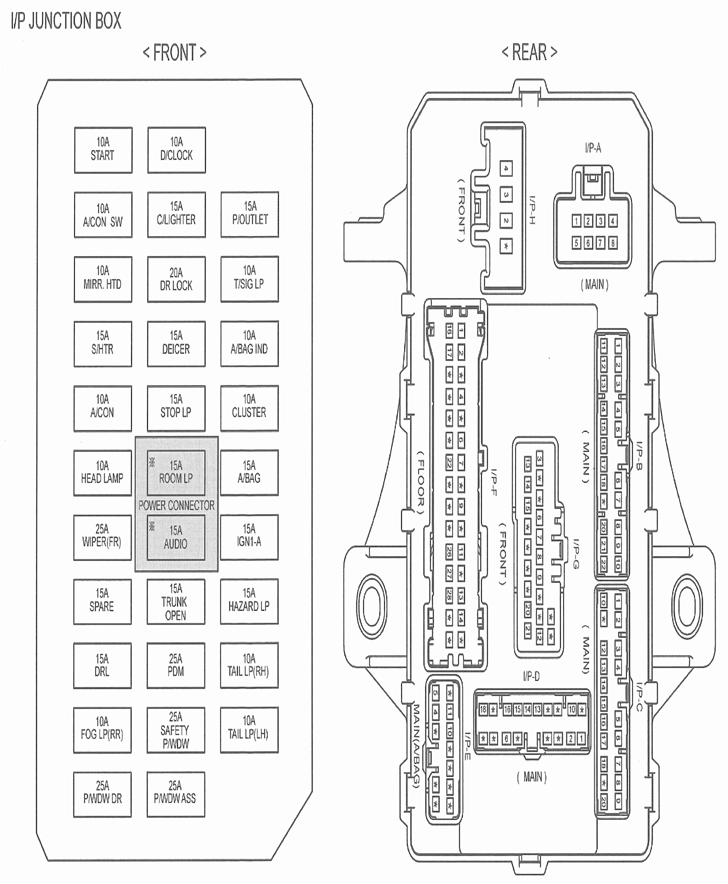

I/P Junction Box	Left side of dash. See Figure.
