Variant coding Procedure

On-Line type on GDS
1. Ignition "OFF", connect GDS.
2. Ignition "ON" & Engine "OFF" select vehicle name and airbag system.
3. Select Variant coding mode.
4. Follow steps on the screen as follows:

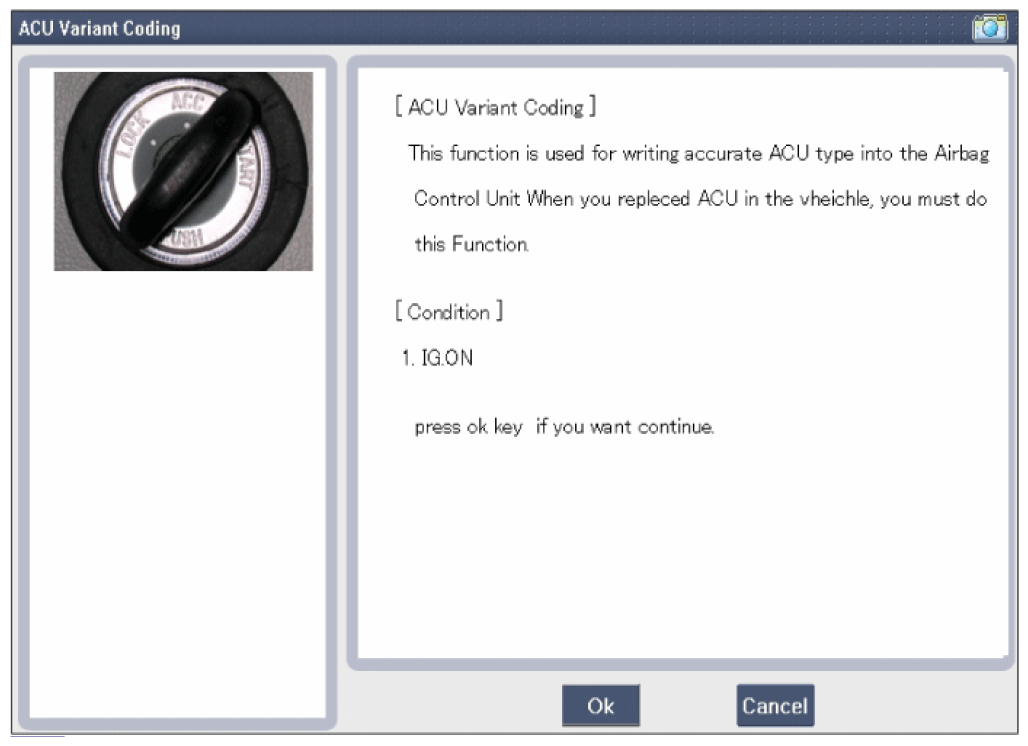

  1. Initial ACU Variant Coding screen:

    Fig 1: GDS Display - On-Line Type Variant Coding Procedure (1 Of 7)
    Courtesy of KIA MOTORS AMERICA, INC.

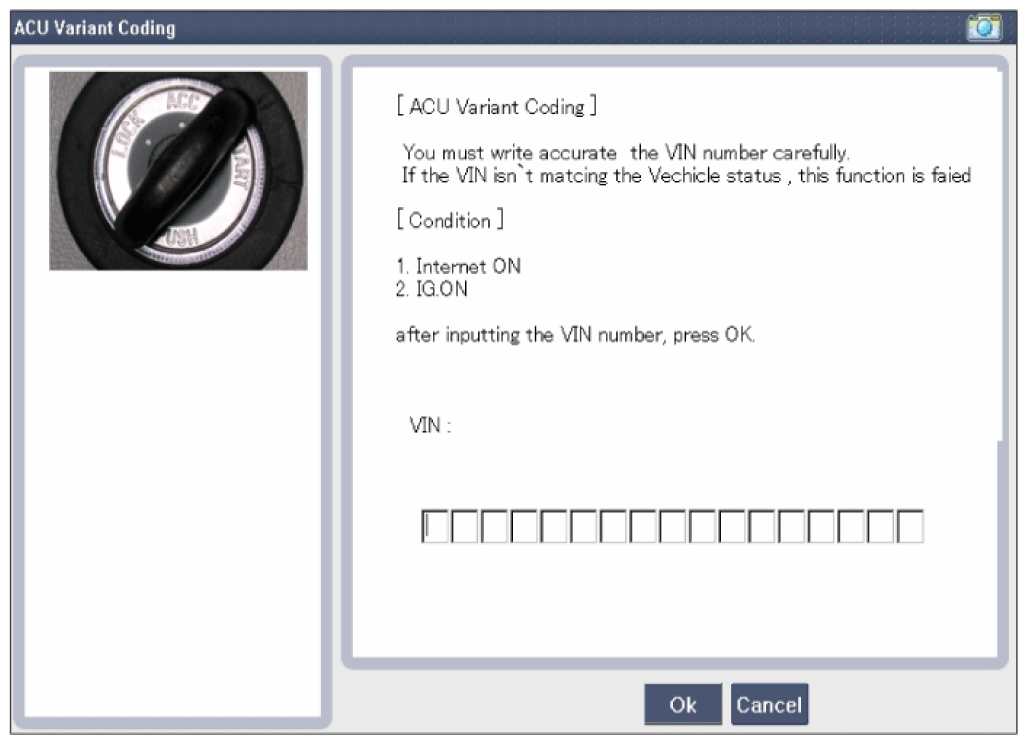

  2. VIN Code entering screen:

    Fig 2: GDS Display - On-Line Type Variant Coding Procedure (2 Of 7)
    Courtesy of KIA MOTORS AMERICA, INC.

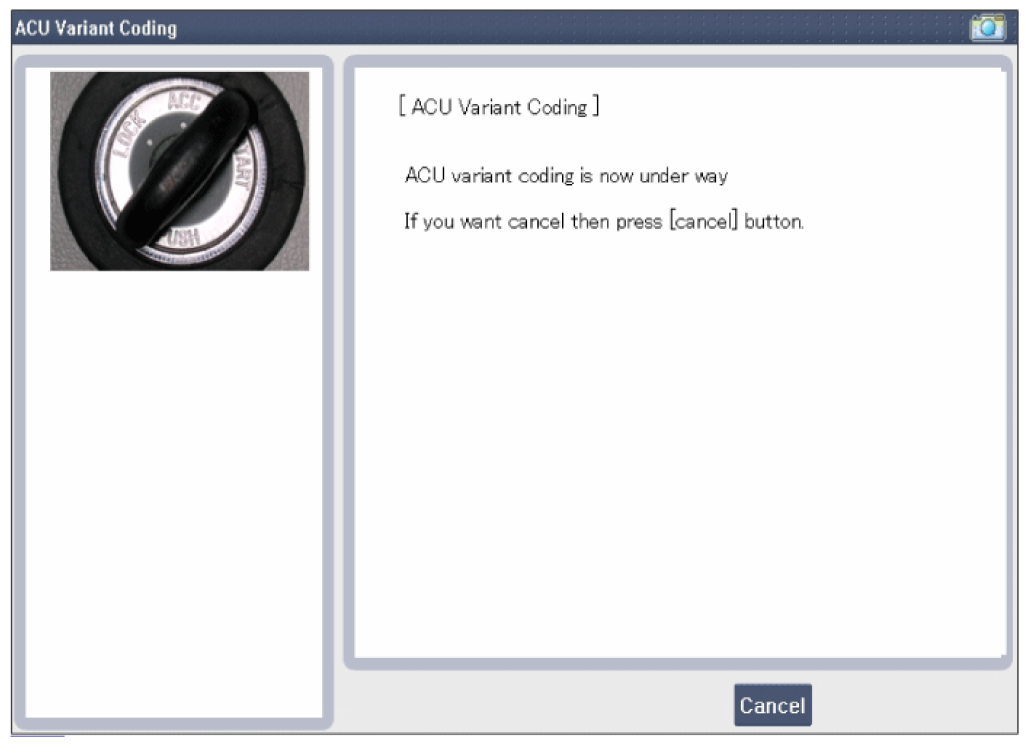

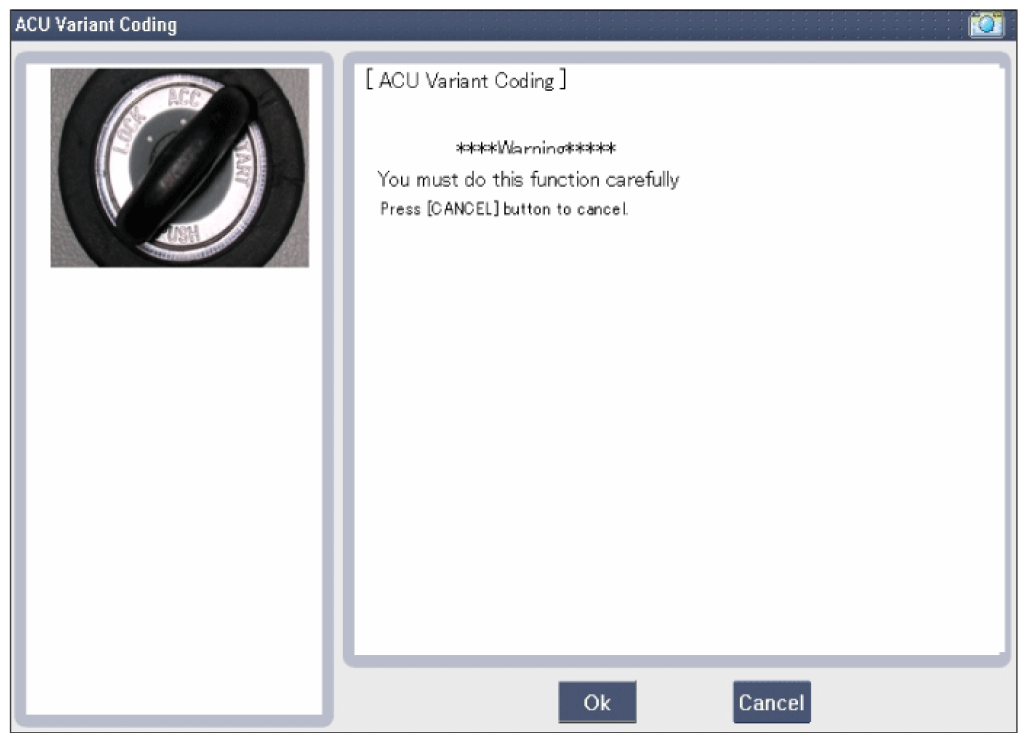

  3. Variant coding's proceeding screen-1:

    Fig 3: GDS Display - On-Line Type Variant Coding Procedure (3 Of 7)
    Courtesy of KIA MOTORS AMERICA, INC.

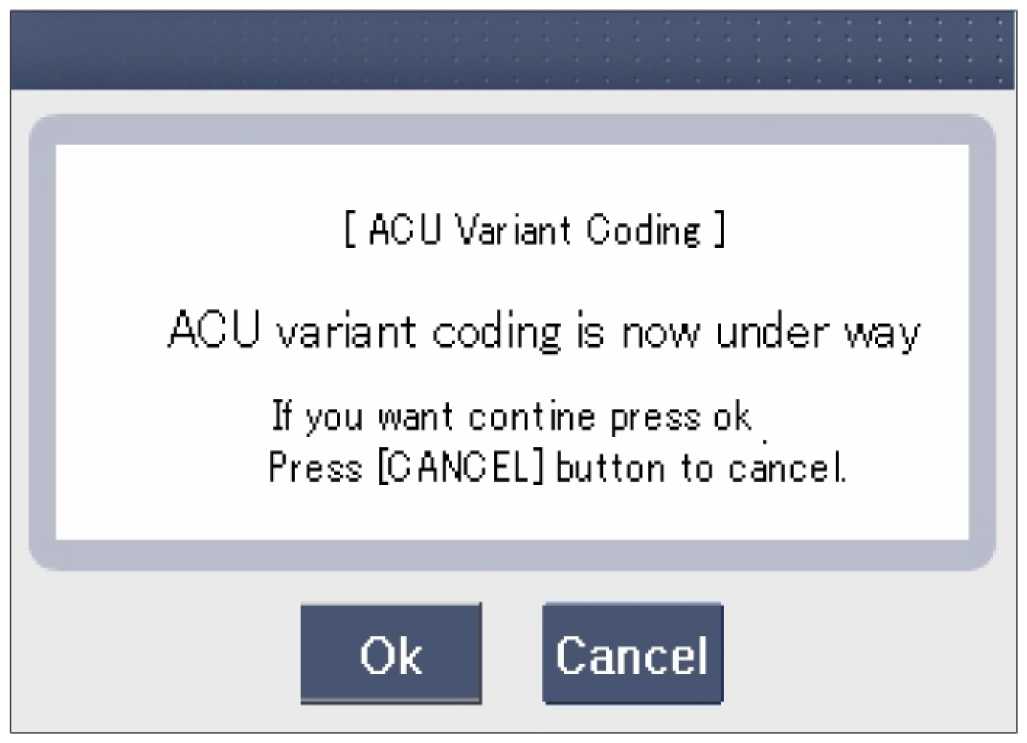

  4. Variant coding's proceeding screen-2:

    Fig 4: GDS Display - On-Line Type Variant Coding Procedure (4 Of 7)
    Courtesy of KIA MOTORS AMERICA, INC.

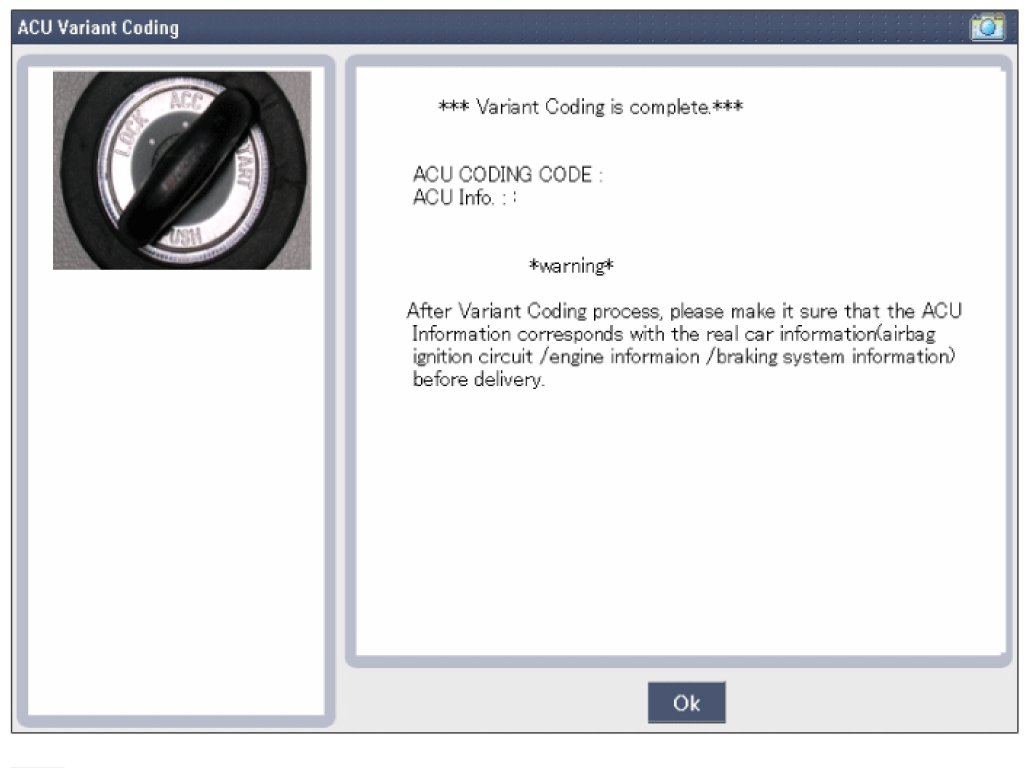

  5. Variant coding is completed:

    Fig 5: GDS Display - On-Line Type Variant Coding Procedure (5 Of 7)
    Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

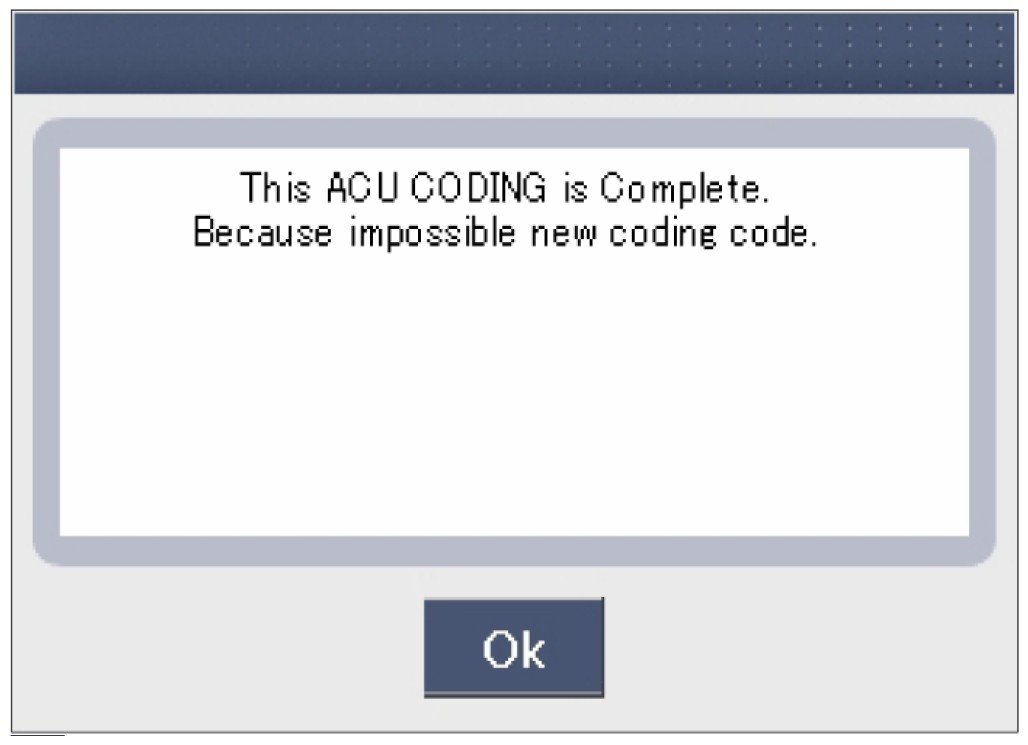

    Screen of Retrying the Variant coding after finishing variant coding:

    Fig 6: GDS Display - On-Line Type Variant Coding Procedure (6 Of 7)
    Courtesy of KIA MOTORS AMERICA, INC.

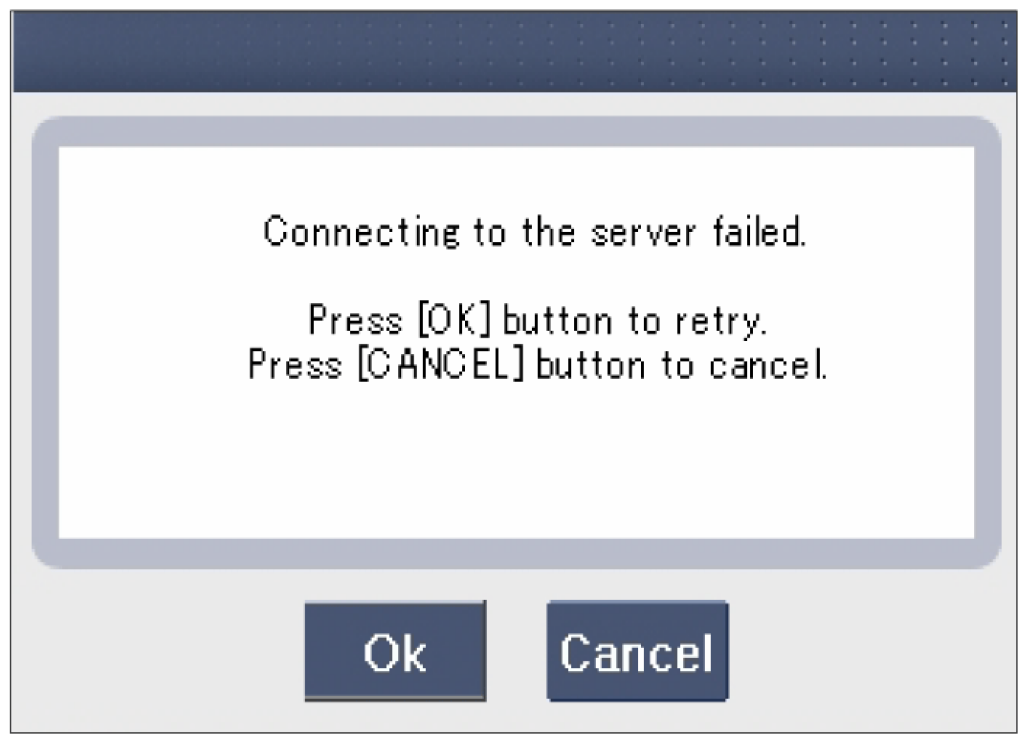

    Screen of communication failure:

    Fig 7: GDS Display - On-Line Type Variant Coding Procedure (7 Of 7)
    Courtesy of KIA MOTORS AMERICA, INC.
Off-line type on GDS (This can be used when not connecting to Internet)
1. Initial ACU Variant Coding screen

  Fig 8: GDS Display - Off-Line Type Variant Coding Procedure (1 Of 7)
  Courtesy of KIA MOTORS AMERICA, INC.

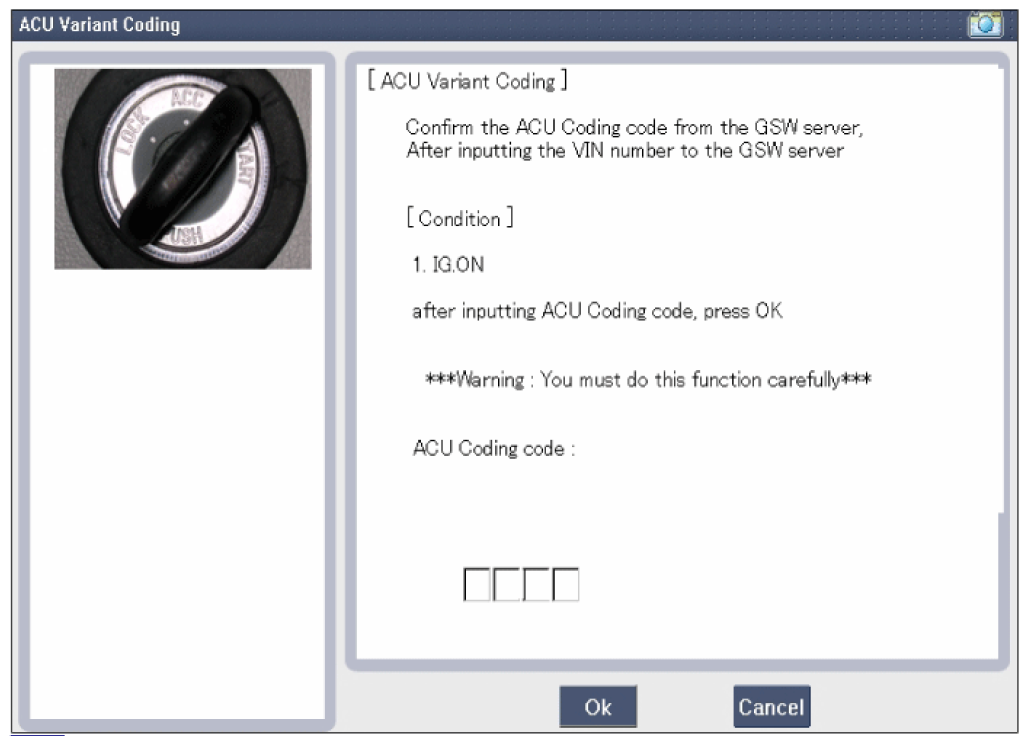

2. ACU CODING Code entering screen

  Fig 9: GDS Display - Off-Line Type Variant Coding Procedure (2 Of 7)
  Courtesy of KIA MOTORS AMERICA, INC.

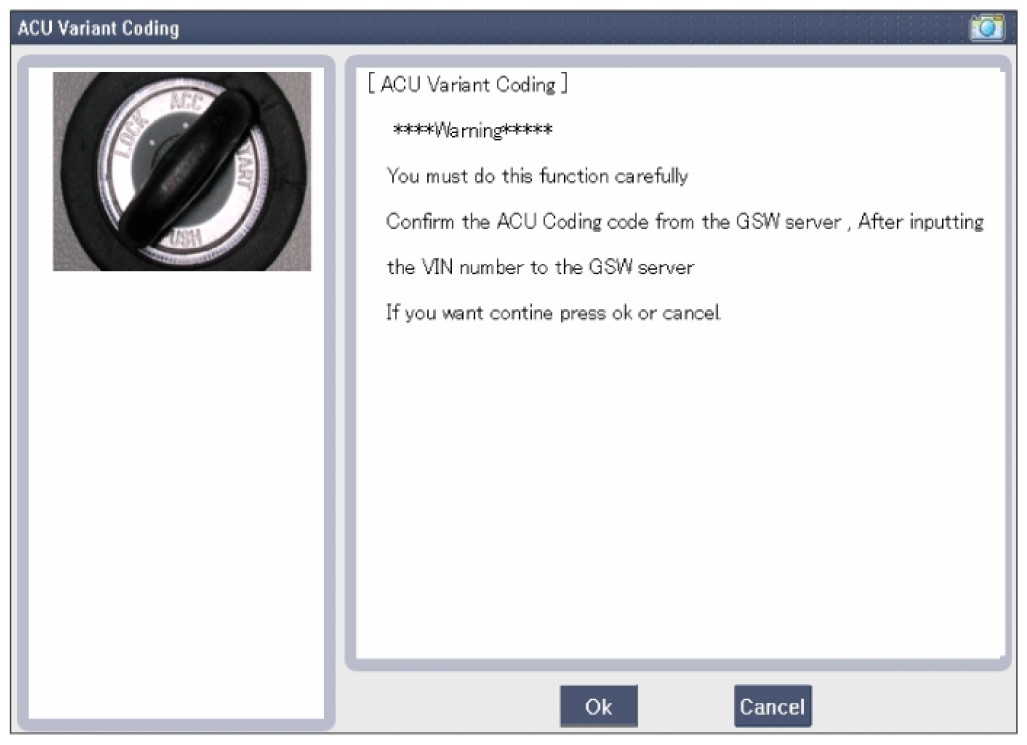

3. Screen of rechecking ACU CODING code's entering

  Fig 10: GDS Display - Off-Line Type Variant Coding Procedure (3 Of 7)
  Courtesy of KIA MOTORS AMERICA, INC.
4. Variant coding's proceeding screen-1

  Fig 11: GDS Display - Off-Line Type Variant Coding Procedure (4 Of 7)
  Courtesy of KIA MOTORS AMERICA, INC.
5. Variant coding's proceeding screen-2

  Fig 12: GDS Display - Off-Line Type Variant Coding Procedure (5 Of 7)
  Courtesy of KIA MOTORS AMERICA, INC.

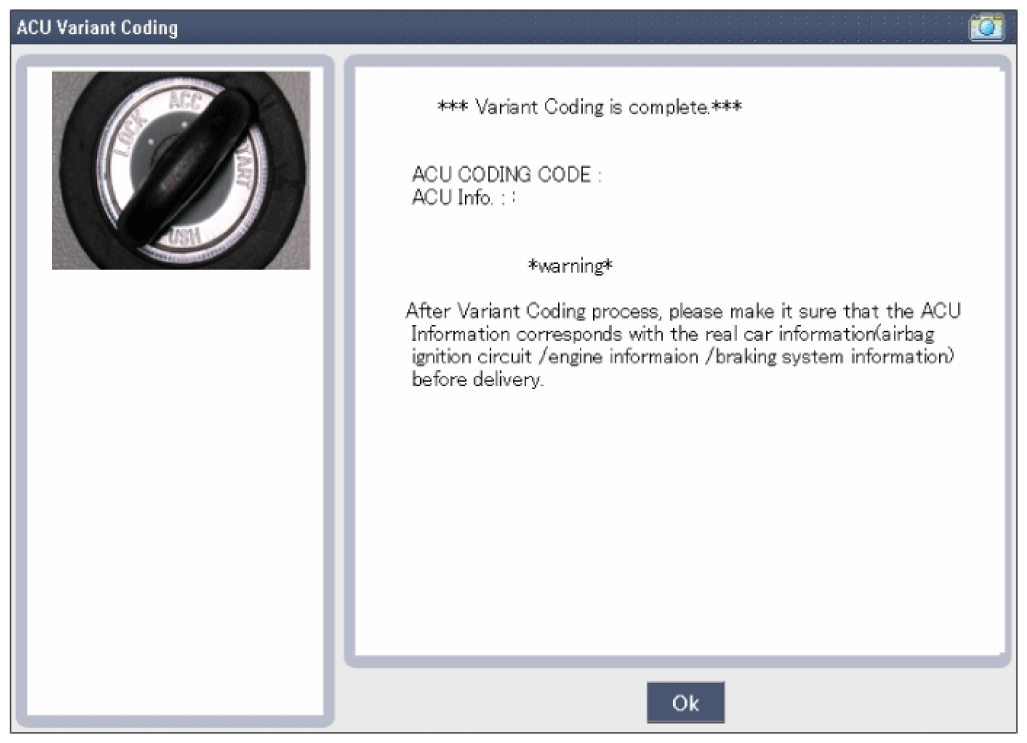

6. Variant coding is completed

  Fig 13: GDS Display - Off-Line Type Variant Coding Procedure (6 Of 7)
  Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
1. Screen of Retrying the Variant coding after finishing variant coding

  Fig 14: GDS Display - Off-Line Type Variant Coding Procedure (7 Of 7)
  Courtesy of KIA MOTORS AMERICA, INC.
