Toe Adjustment
- Loosen the tie rod end lock nut.
- Remove the bellows clip to prevent the bellows from being twisted.

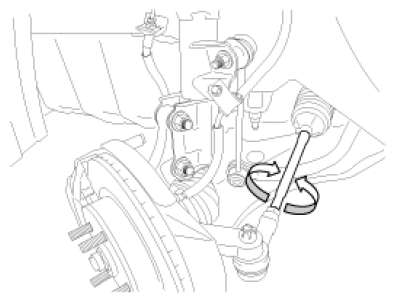

- Adjust the toe by screwing or unscrewing the tie rod. Toe adjustment should be made by turning the right and left tie rods by the same amount.
Toe-in
4DR
Total : 0.12°±0.18°
Individual : 0.06°±0.09°
2DR
Total : 0.4°±0.2°
Individual : 0.2°±0.1°
- When completing the toe adjustment, install the bellows clip and tighten the tie rod end lock nut to specified torque.
Tightening torque:
50 ~ 55N.m (5.0 ~ 5.5kgf.m, 36 ~ 40lb-ft)
