Home >> Kia >> 2010 >> Forte EX, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Control System - A4CF2 >> Shift Lever >> Components and Components Location >> Components

Components and Components Location: Components

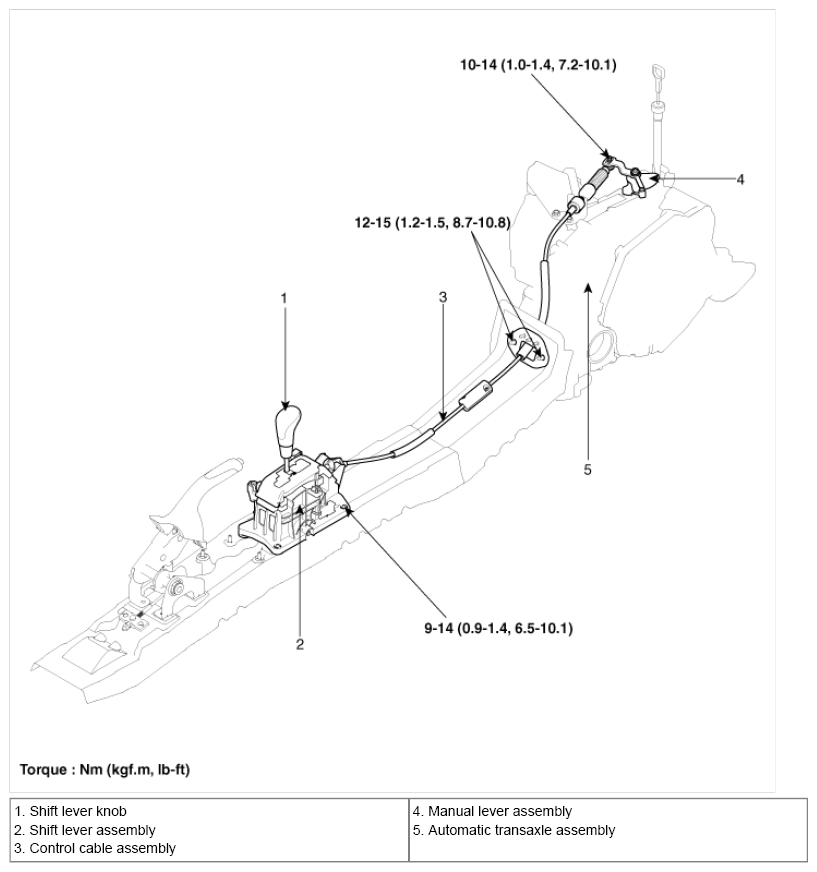

Fig 1: Shift Lever Replacement Components With Torque Specifications With Torque Specifications

G06494511

Courtesy of KIA MOTORS AMERICA, INC.
