Engine Control System - 2.4L
>>
Components And Components Location
>>
Component Location
Component Location

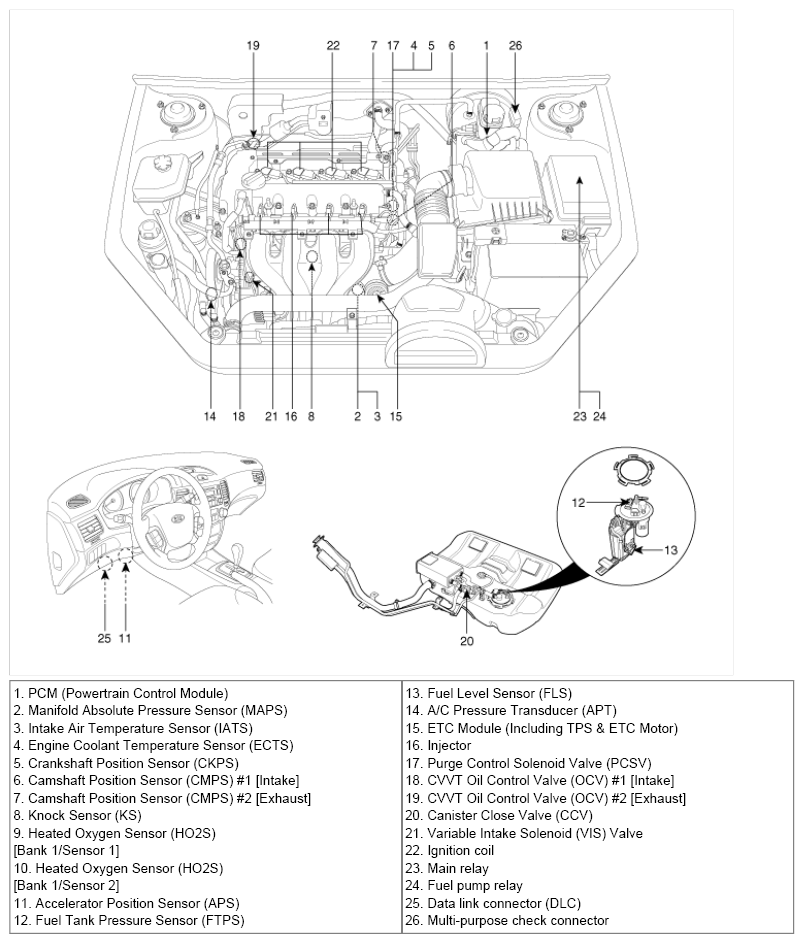

Fig 1: Identifying Fuel System Component Location (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

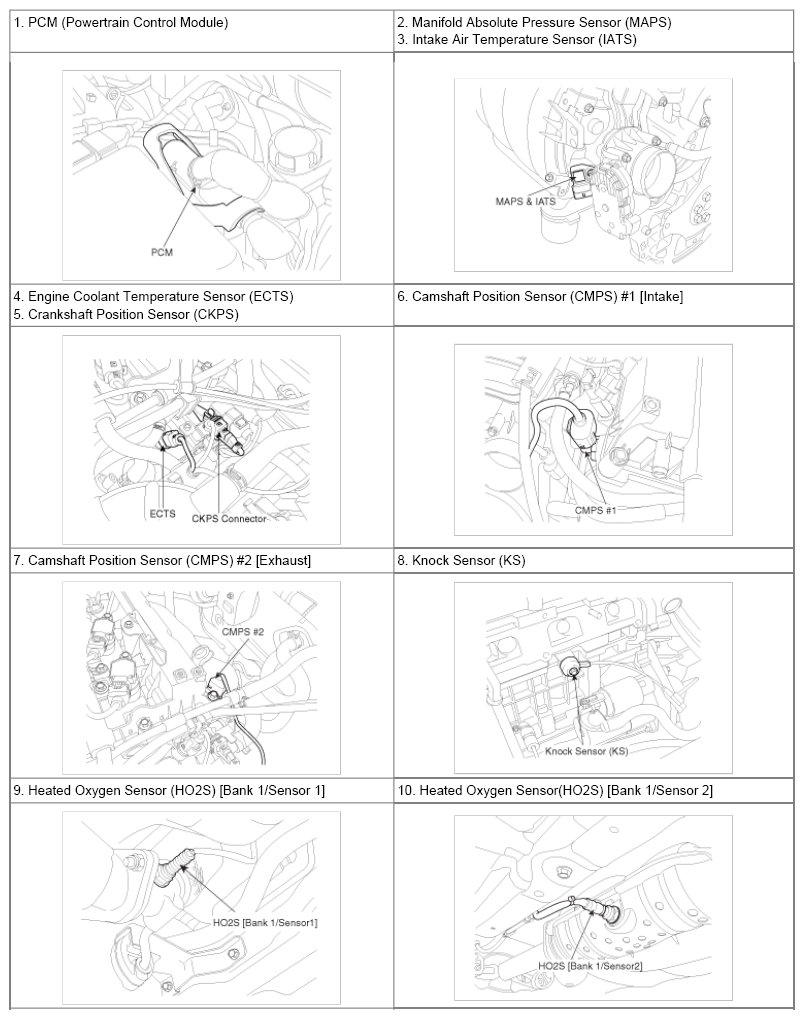

Fig 2: Identifying Fuel System Component Location (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

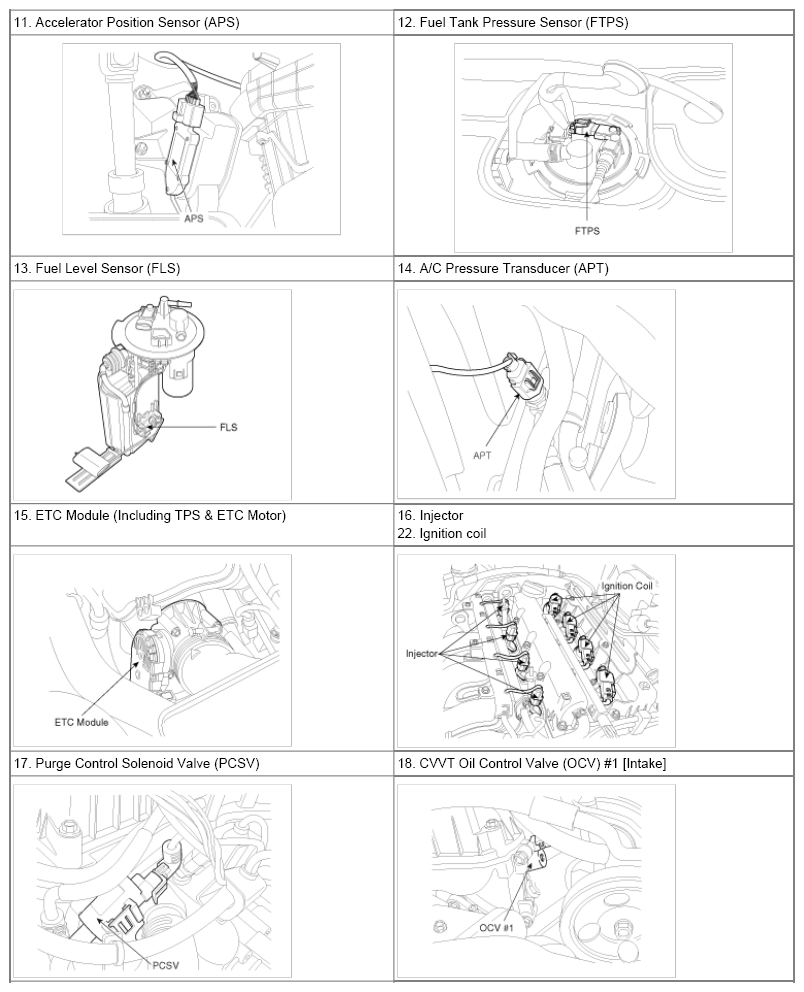

Fig 3: Identifying Fuel System Component Location (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

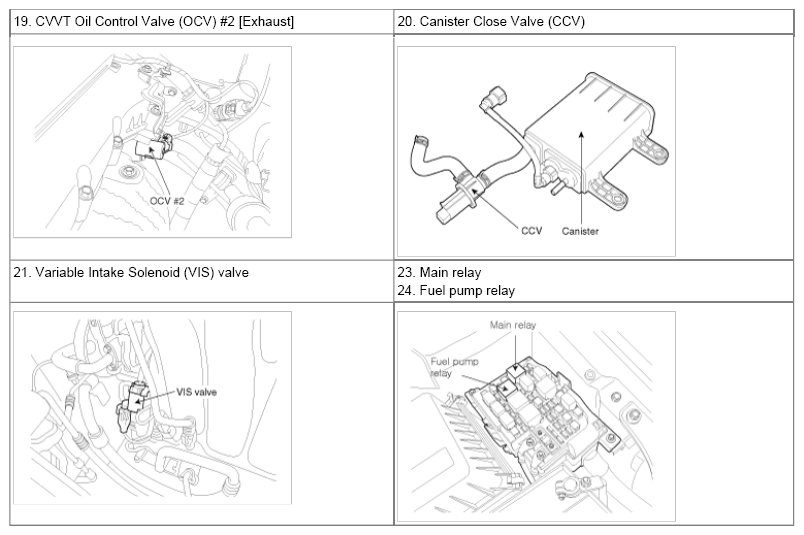

Fig 4: Identifying Fuel System Component Location (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
