Repair procedures: Removal: Notes

Oil pump

1. Drain engine oil.
2. Using SST (09215-3C000) remove lower oil pan (A).
   Fig 1: Identifying Lower Oil Pan

   Courtesy of KIA MOTORS AMERICA, INC.
   CAUTION: Be careful not to damage the contact surfaces of upper oil pan and lower oil pan.
3. Remove oil pump chain cover (A).
   Fig 2: Identifying Oil Pump Chain Cover

   Courtesy of KIA MOTORS AMERICA, INC.
4. Remove oil pump chain sprocket (A).
   Fig 3: Identifying Oil Pump Chain Sprocket

   Courtesy of KIA MOTORS AMERICA, INC.
5. Remove oil pump (A).

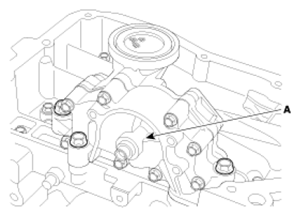

   Fig 4: Identifying Oil Pump

   Courtesy of KIA MOTORS AMERICA, INC.
