Timing Chain: Component

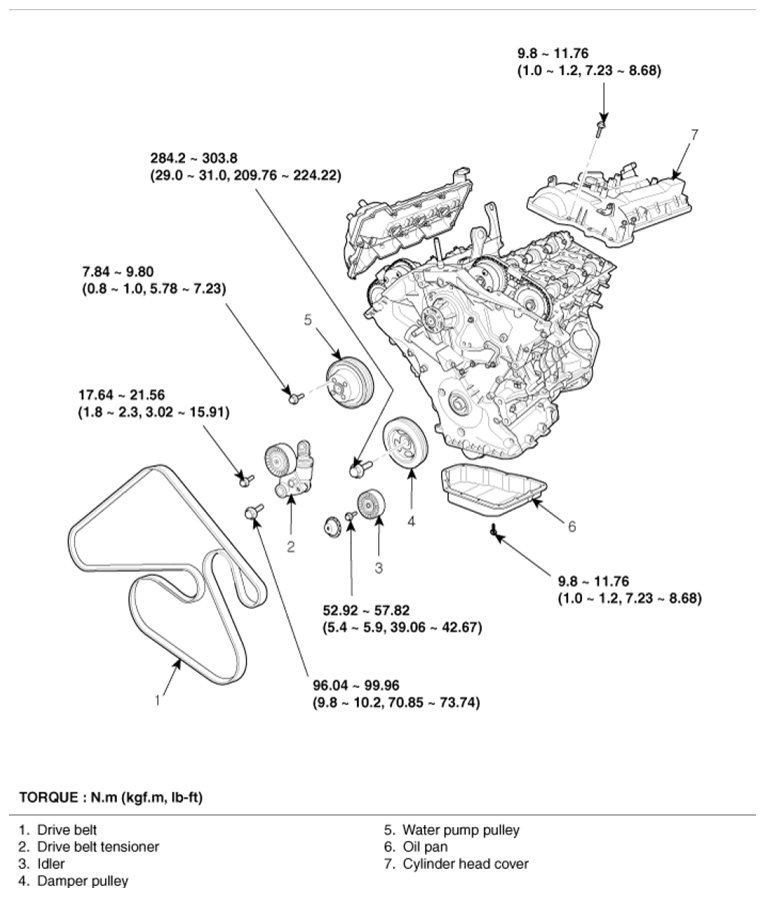

Fig 1: Timing System Replacement Components With Torque Specifications (1 Of 2)
G06837671Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Timing System Replacement Components With Torque Specifications (2 Of 2)
G06837672Courtesy of KIA MOTORS AMERICA, INC.
