Components (1)

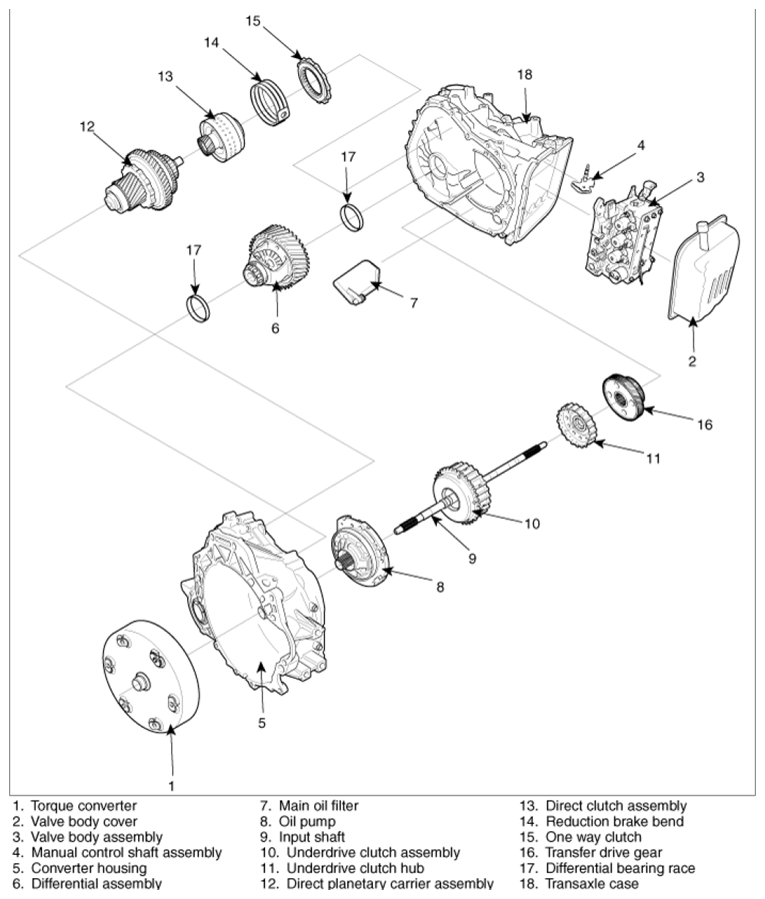

Fig 1: Exploded View Of Automatic Transaxle System (1 Of 2)
G06799263Courtesy of KIA MOTORS AMERICA, INC.

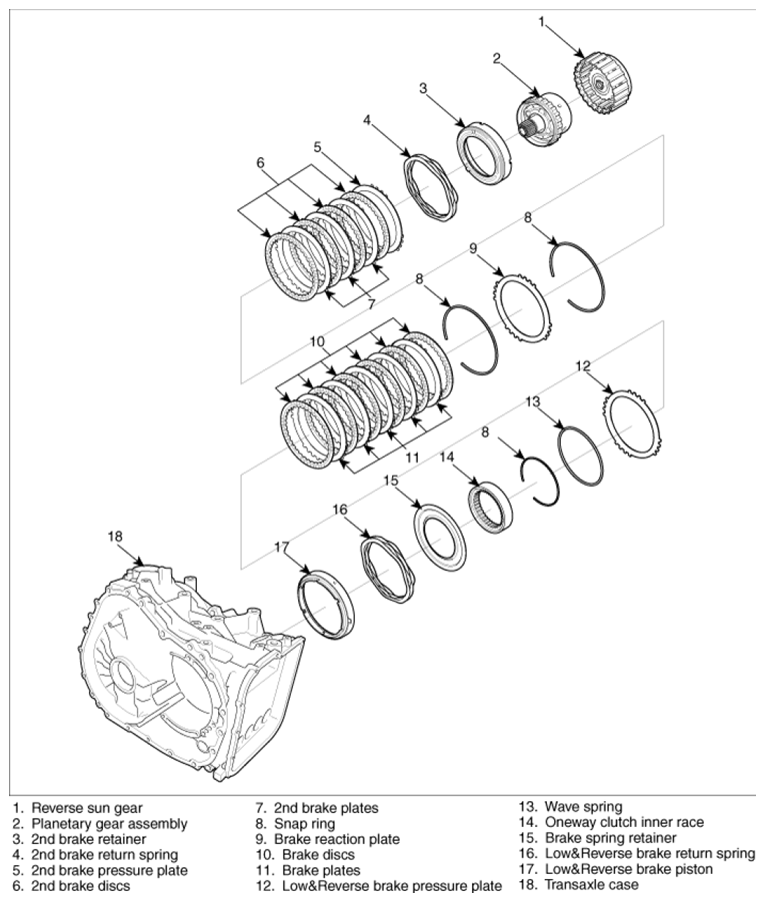

Fig 2: Exploded View Of Automatic Transaxle System (2 Of 2)
G06799264Courtesy of KIA MOTORS AMERICA, INC.
