Home >> Kia >> 2010 >> Sedona Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> Automatic Transaxle System >> Differential >> Components and Components Location >> Components

Components and Components Location: Components

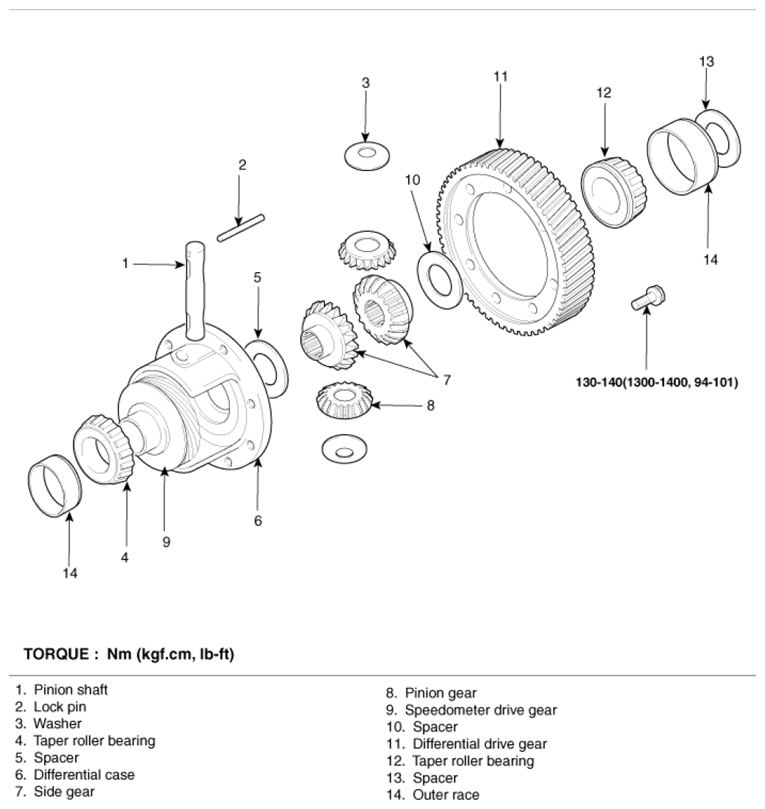

Fig 1: Exploded View Of Differential With Torque Specification
G06799254Courtesy of KIA MOTORS AMERICA, INC.
