Home >> Kia >> 2010 >> Sedona Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> Gear System >> Carrier >> Components and Components Location >> Components

Components and Components Location: Components

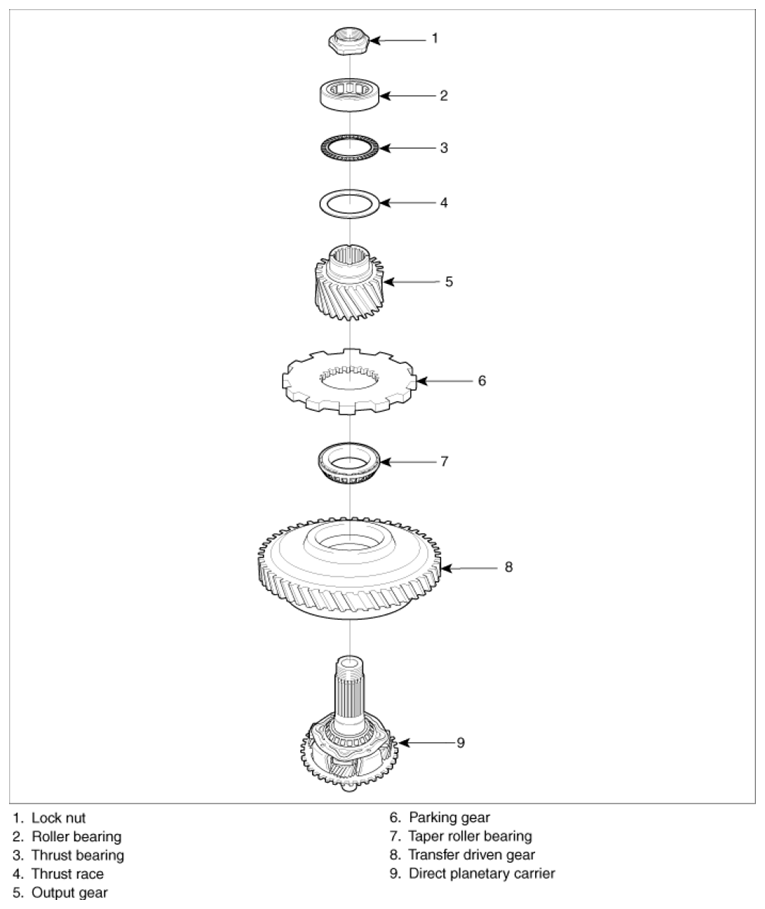

Fig 1: Exploded View Of Direct Planetary Carrier
G06799498Courtesy of KIA MOTORS AMERICA, INC.
